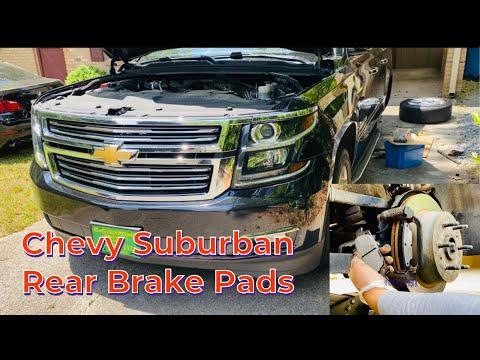

🔧 Suburban - Rear Brake Pad Replacement

You’ll remove the rear wheels, swing the rear brake calipers out of the way, replace the pads and hardware, then compress the caliper piston so everything fits back together. This restores safe stopping power and prevents rotor damage when pads get thin.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: stock rear disc brakes with standard parking brake (not electronic).

---

⚠️ Safety & Precautions

• ⚠️ Work on a level surface and support your Suburban with jack stands—never rely on a jack.
• ⚠️ Chock the front wheels and release the parking brake before starting (rear rotors won’t come off or pads may bind if it’s on).
• ⚠️ Brake dust is harmful—avoid blowing it with compressed air; use brake cleaner and a catch pan.
• ⚠️ Do not press the brake pedal while a caliper is off the rotor.
• ⚠️ Keep brake fluid off paint; it can damage finishes.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Lug wrench or 22mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• 13mm socket
• 18mm socket
• Torque wrench (20-250 ft-lbs range)
• C-clamp (6" minimum)
• Flathead screwdriver
• Bungee cord
• Brake cleaner
• Wire brush
• Small drain pan
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear brake pad set - Qty: 1
• Rear brake pad hardware kit (clips/abutments) - Qty: 1
• Brake lubricant (silicone or synthetic caliper grease) - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 bottle

---

📋 Before You Begin

• Park on level ground, shift to Park, and chock the front wheels.
• Release the parking brake fully.
• Open the hood and locate the brake fluid reservoir. Make sure fluid isn’t at the absolute brim (compressing pistons can raise the level).
• Loosen rear lug nuts slightly using a lug wrench or 22mm socket before lifting.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the rear

• Use a floor jack (rated 3-ton minimum) to lift the rear of your Suburban at a safe rear jacking point.
• Set it down onto jack stands (rated 3-ton minimum) and give the vehicle a firm shake to confirm it’s stable.
• Remove the rear wheels using a lug wrench or 22mm socket.

Step 2: Locate the rear caliper and bolts

• Find the rear brake caliper (the clamp over the rotor) and the caliper bracket behind it.
• Spray the area with brake cleaner and let it drip into a small drain pan.

Step 3: Remove the caliper (slider) bolts

• Use a 13mm socket and 3/8" drive ratchet to remove the two caliper slider bolts.
• Lift the caliper off the bracket. Do not let it hang by the brake hose.
• Support the caliper with a bungee cord from the suspension.
• When reinstalling later: Torque to 31 Nm (23 ft-lbs).

Step 4: Remove the old pads and hardware

• Slide the inner and outer pads out of the caliper bracket by hand.
• Remove the stainless pad clips (hardware) from the bracket using a flathead screwdriver.
• Clean the bracket pad lands (the metal “tracks” where the clips sit) with a wire brush.
• Clean metal helps pads slide smoothly.

Step 5: Compress the caliper piston

• Place one old brake pad against the caliper piston face.
• Use a C-clamp (6" minimum) to slowly push the piston back into the caliper bore.
• Watch the brake fluid reservoir under the hood while compressing. If it starts to overflow, stop and remove a little fluid safely.
• Go slow to avoid damaging seals.

Step 6: Install new hardware and pads

• Snap the new pad clips (from the hardware kit) into the bracket by hand. If needed, gently seat them with a flathead screwdriver.
• Apply a thin film of brake lubricant to the pad ears where they touch the clips (metal-to-metal contact points).
• Install the new inner and outer pads into the bracket.
• No grease on pad friction material.

Step 7: Reinstall the caliper

• Swing the caliper back over the new pads.
• Install the caliper slider bolts using a 13mm socket and 3/8" drive ratchet.
• Torque to 31 Nm (23 ft-lbs) using a torque wrench (20-250 ft-lbs range).

Step 8: (If needed) Remove the bracket for rotor service

• If you are only doing pads and have enough room, you can skip bracket removal.
• If you must remove the bracket (common when replacing rotors): remove the two bracket bolts using an 18mm socket and 1/2" drive breaker bar.
• When reinstalling bracket bolts: Torque to 170 Nm (125 ft-lbs).

Step 9: Reinstall wheels

• Reinstall the wheels and hand-thread the lug nuts.
• Lower the Suburban off the jack stands using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern using a torque wrench (20-250 ft-lbs range): Torque to 190 Nm (140 ft-lbs).

---

✅ After Repair

• Pump the brake pedal slowly 8-15 times until it feels firm. This seats the pistons against the new pads.
• Check brake fluid level at the reservoir and top off with DOT 3 only if needed.
• Do a careful test drive: start with low-speed stops to confirm normal braking and no pulling/noise.
• Pad bedding (recommended): make 8-10 moderate stops from ~30 mph to ~5 mph, with short cool-down driving between stops.
• Recheck for leaks and recheck lug nut torque after 25-50 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $80-$200 (parts only)

You Save: $270-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
