🔧 Escape - Rear Brake Pad Replacement

You’ll be removing the rear caliper, swapping the pads, and compressing the caliper piston so the new thicker pads fit. On your Escape, the “parking brake” system can change how the rear caliper piston retracts, so we’ll cover both common setups.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🛑 Support the Escape with jack stands; never rely on a jack.
• 🧤 Brake dust is harmful—wear a mask and avoid blowing dust with air.
• 🔥 Brakes can be hot; let everything cool before starting.
• ⚠️ If equipped with an electronic parking brake (EPB), do not force the piston—put EPB in service mode first.
• 🔋 Battery disconnect is not required for a basic pad swap, but keep the key away from the vehicle if it has EPB to prevent auto-apply.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 19mm socket
• Breaker bar (1/2" drive)
• Torque wrench (20–200 ft-lbs range)
• Ratchet (3/8" drive)
• Socket set (8mm–18mm)
• 7mm hex bit socket
• 13mm socket
• 15mm wrench
• Flathead screwdriver
• C-clamp (6")
• Disc brake piston wind-back tool kit (specialty)
• Bungee cord
• Wire brush
• Brake cleaner spray
• Nitrile gloves
• Safety glasses
• Scan tool with EPB service mode (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear brake pad set - Qty: 1
• Rear brake pad hardware kit - Qty: 1
• Brake caliper grease (silicone) - Qty: 1
• Brake parts cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, turn the wheel straight, and chock the front wheels with wheel chocks.
• Make sure the parking brake is fully released before you start.
• Open the hood and remove the brake fluid reservoir cap (leave it sitting on top). This helps the fluid level rise as you compress the pistons.
• If your Escape has an EPB switch on the console (not a foot pedal), plan to use a scan tool with EPB service mode (specialty) before compressing the piston.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen lug nuts and raise the rear

• Use a 19mm socket and breaker bar (1/2" drive) to loosen the rear wheel lug nuts 1/2 turn (do not remove yet).
• Use a floor jack (rated 3-ton minimum) to lift the rear at the approved jacking point, then set it down onto jack stands (rated 3-ton minimum).
• Remove the wheel lug nuts with the 19mm socket and remove the rear wheels.

Step 2: Confirm your parking brake type (important)

• Look for either an EPB switch (button/switch) or a mechanical parking brake (foot pedal/lever and cables).
• If you have EPB: use a scan tool with EPB service mode (specialty) to retract/put the EPB in service mode before pushing the piston back.
• If you have mechanical parking brake: keep the parking brake released, and continue to the next step.
• If unsure, send a photo of the rear caliper.

Step 3: Remove the caliper (not the bracket)

• Turn the steering slightly by hand if needed for access, then locate the two caliper slide fasteners on the back side of the caliper.
• Depending on build, remove the slide fasteners using ONE of these common setups (use what matches your caliper):
• Use a 7mm hex bit socket with a ratchet (3/8" drive) to remove the slide pin bolts, OR
• Use a 13mm socket while holding the guide pin flats with a 15mm wrench (if your pins spin).
• Lift the caliper off the bracket. Use a bungee cord to hang the caliper from the suspension spring/arm so the brake hose is not stretched.

Step 4: Remove old pads and hardware

• Pull the inner and outer pads out of the bracket by hand (use a flathead screwdriver gently if they’re stuck).
• Remove the pad hardware/clips from the bracket if you’re replacing them (recommended) and clean the pad contact “lands” with a wire brush and brake cleaner spray.

Step 5: Retract the caliper piston (this is the key step)

• Check the piston face: if it has notches/cross pattern, it typically must be rotated while being pushed in.
• For “push-in” pistons: use a C-clamp (6") to slowly compress the piston fully into the caliper.

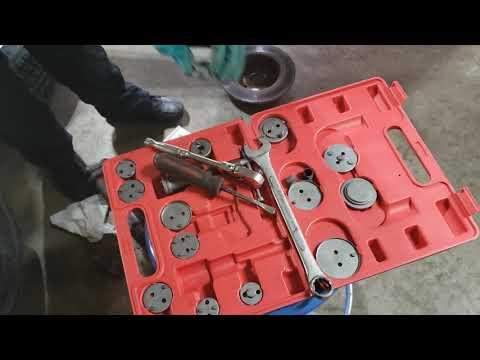

• For “twist-in” pistons: use a disc brake piston wind-back tool kit (specialty) to rotate and press the piston in at the same time.
• Watch the brake fluid reservoir while compressing; remove excess fluid if it nears the top (do not overflow).
• Go slow—fast compression can damage seals.

Step 6: Service the slide pins and install new pads

• Pull the slide pins out of the bracket (if accessible) and wipe them clean.
• Apply a thin coat of brake caliper grease (silicone) to the slide pins only (do not get grease on pad friction surfaces).
• Install the new hardware clips on the bracket (if included) by hand.
• Install the new pads into the bracket in the same positions as removed.

Step 7: Reinstall the caliper and torque fasteners

• Set the caliper back over the new pads.
• Install and tighten the caliper slide fasteners using the same tool type you removed them with:
• Use a 7mm hex bit socket with a ratchet (3/8" drive), OR use a 13mm socket while holding with a 15mm wrench.
• Torque to 35 Nm (26 ft-lbs) for the caliper slide fasteners.

Step 8: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread the lug nuts.
• Lower the Escape off the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Use a torque wrench (20–200 ft-lbs range) with a 19mm socket to tighten lug nuts in a star pattern: Torque to 135 Nm (100 ft-lbs).

Step 9: Restore pedal feel

• With the engine OFF, press the brake pedal slowly 10–15 times until it feels firm.
• Reinstall/tighten the brake fluid reservoir cap by hand.
• If EPB-equipped: use the scan tool with EPB service mode (specialty) to exit service mode, then apply/release EPB once.

---

✅ After Repair

• Start the engine and confirm the brake pedal remains firm.
• Check brake fluid level and top off only if needed (use the correct brake fluid shown on the reservoir cap).
• Road test at low speed first. Confirm no pulling, grinding, or warning lights.
• Pad bed-in (break-in): make 6–10 moderate stops from ~30 mph to ~5 mph, allowing 30–60 seconds between stops to cool.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$140 (parts only)

You Save: $110-$390 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
