🔧 Rio - Rear Brake Pad Replacement

You’ll remove the rear wheels, swing the rear calipers up, replace the pads, and then reassemble with the correct torque. This restores braking performance and prevents rotor damage when pads wear thin.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground and support the rear with jack stands before going underneath.
• ⚠️ Do not press the brake pedal while a caliper is off the rotor.
• ⚠️ Brake dust is harmful; use brake cleaner, not compressed air.
• ⚠️ Keep grease off pad friction material and rotor surfaces.
• ⚠️ Parking brake: leave it released while working (this Rio uses a manual parking brake system, not an electronic one).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (10-200 ft-lbs range)
• 14mm socket
• 17mm socket
• Flat trim/pry tool
• C-clamp (6")
• Rear disc brake piston cube tool (specialty)
• Wire brush
• Bungee cord
• Brake cleaner
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear brake pad set - Qty: 1
• Rear brake hardware kit (abutment clips) - Qty: 1
• Brake caliper slide pin grease (silicone brake grease) - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and chock the front wheels using wheel chocks.
• Release the parking brake fully (rear calipers/pads must move freely).
• Pop the hood and check the brake fluid level; it may rise when you compress the pistons. Don’t let it overflow.
• Assumption: Common torque specs are provided; exact values can vary by rotor/caliper variant.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen rear wheel lug nuts

• Use a 21mm socket with a 1/2" drive breaker bar to loosen (do not remove) the rear lug nuts about 1/2 turn.

Step 2: Lift and support the rear

• Lift the rear with a floor jack (rated 2-ton minimum) at the rear jacking point.
• Set the car down onto jack stands (rated 2-ton minimum).
• Give the car a gentle shake to confirm it’s stable before removing wheels.

Step 3: Remove the rear wheels

• Remove the lug nuts using the 21mm socket and 3/8" drive ratchet.
• Remove both rear wheels and set them aside.

Step 4: Locate the caliper bolts and remove the lower guide pin bolt

• On the back side of the caliper you’ll see two “guide pin” bolts (they hold the caliper to the bracket).
• Use a 14mm socket with a 3/8" drive ratchet to remove the lower guide pin bolt.
• If the guide pin tries to spin, hold it carefully and re-try (don’t round anything off).

Step 5: Swing the caliper up and support it

• Pivot the caliper upward (like a hinge) using a flat trim/pry tool gently if needed.
• Hang the caliper from the suspension with a bungee cord.
• Never let the caliper hang by the rubber brake hose.

Step 6: Remove old pads and hardware clips

• Pull the inner and outer pads out of the bracket by hand.
• Remove the metal abutment clips (hardware) from the bracket using a flat trim/pry tool.

Step 7: Clean the bracket and pad contact points

• Spray the bracket areas with brake cleaner.
• Use a wire brush to clean rust where the clips sit and where pads slide.
• Clean metal helps prevent pad sticking.

Step 8: Install new hardware clips

• Snap the new clips from the hardware kit into the bracket by hand.
• Make sure each clip sits flat and fully seated.

Step 9: Compress the rear caliper piston

• The piston must go back in to make room for thicker new pads.
• First try pushing the piston in slowly using a C-clamp (6") against the old inner pad (use the old pad as a buffer).
• If the piston will not push in smoothly, use a rear disc brake piston cube tool (specialty) and rotate while pushing inward (a cube tool is a small adapter that lets you turn and press the piston at the same time).
• Go slowly and keep the piston straight to avoid damaging the boot.

Step 10: Grease the sliding points (not the friction surfaces)

• Apply a thin layer of brake caliper slide pin grease (silicone brake grease) to the pad “ears” where they touch the clips.
• Do not get grease on the pad faces or rotor.

Step 11: Install the new pads

• Install the new inner and outer pads into the bracket by hand.
• They should slide freely in the clips with light hand force.

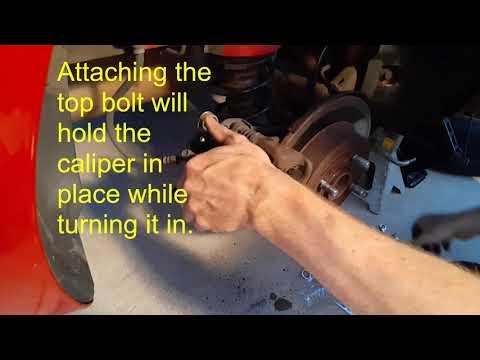

Step 12: Reinstall the caliper and guide pin bolt

• Swing the caliper back down over the new pads.
• Reinstall the lower guide pin bolt using a 14mm socket and 3/8" drive ratchet.
• Torque to 25 Nm (18 ft-lbs).

Step 13: Repeat on the other rear side

• Repeat Steps 4–12 on the other rear wheel.
• Always replace pads on both rear wheels.

Step 14: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread lug nuts.
• Lower the car off the stands using the floor jack (rated 2-ton minimum).
• Torque lug nuts in a star pattern using a torque wrench (10-200 ft-lbs range) and 21mm socket.
• Torque to 90-110 Nm (66-81 ft-lbs).

---

✅ After Repair

• With the car on the ground, pump the brake pedal 10-15 times until it feels firm (this seats the pistons and pads).
• Check brake fluid level; top off only if needed.
• Do a slow test drive in a safe area and confirm no grinding, pulling, or warning lights.
• Pad bed-in (break-in): make 6-10 gentle stops from 30 mph down to 5 mph, with a little driving between stops to cool the brakes.
• Re-check for any brake fluid leaks and make sure both rear wheels rotate freely with the parking brake released.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $130-$410 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
