🔧 Rogue - Rear Brake Pad Replacement

You’ll be removing the rear wheels, unbolting the rear brake calipers, swapping the pads and hardware, then reassembling everything with the correct torque. This Rogue uses an electronic parking brake, so you must keep it released and avoid turning it on during the job.

Difficulty Level: Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• ⚠️ Always support the vehicle with jack stands; never rely only on a floor jack.
• ⚠️ Make sure the electronic parking brake (EPB) is OFF before you start, and do not press the EPB switch while a rear caliper is removed.
• ⚠️ Work on level ground, chock the front wheels, and keep the transmission in P (Park).
• ⚠️ Brake components can get very hot. Let the brakes cool fully if you’ve just driven.
• ⚠️ Wear safety glasses and nitrile or mechanic gloves when using brake cleaner; brake dust and cleaner are irritating.
• ⚠️ Do not press the brake pedal with a caliper removed; this can push the piston out.
• ⚠️ Keep all grease and oil off pad friction surfaces and rotor faces.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum, Qty: 2)
• 🛠️ Wheel chocks
• 🛠️ 21mm lug wrench or 21mm socket
• 🛠️ Ratchet handle 3/8" drive
• 🛠️ Breaker bar 1/2" drive
• 🛠️ Torque wrench 3/8" or 1/2" drive (10–150 ft-lbs range)
• 🛠️ 14mm socket
• 🛠️ 17mm socket
• 🛠️ Flathead screwdriver (medium size)
• 🛠️ C-clamp (6" or larger) or disc brake piston spreader (specialty)
• 🛠️ Wire brush (small, steel bristles)
• 🛠️ Bungee cord or mechanics wire
• 🛠️ Shop rags
• 🛠️ Safety glasses
• 🛠️ Nitrile or mechanic gloves
• 🛠️ Flashlight or work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Rear brake pad set (left and right) - Qty: 1 set (replace both sides)
• 🔩 Rear brake pad hardware kit (pad clips/shims) - Qty: 1 set
• 🔩 Synthetic brake grease (high-temp) - Qty: 1 small tube
• 🔩 Brake cleaner spray - Qty: 1–2 cans
• 🔩 Anti-seize compound - Qty: small packet (optional, for hub/wheel contact points)
• 🔩 Disposable shop towels or paper towels - Qty: 1 roll

---

📋 Before You Begin

• Park the Rogue on level ground, turn the steering wheel straight, shift to P, and switch the ignition OFF.
• Make sure the electronic parking brake is released: with ignition ON, press the brake pedal and push down the EPB switch to release it; confirm the EPB indicator light goes off, then turn ignition OFF and do not touch the switch again.
• Place wheel chocks in front of and behind at least one front wheel.
• Loosen rear wheel lug nuts 1/2 turn with the 21mm lug wrench before jacking up.
• Have all tools and parts laid out so you’re not searching mid-job. Lay parts out in removal order.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and support the rear of the Rogue

• Use the floor jack under the rear center jacking point (just ahead of the rear differential crossmember) to lift the rear of the vehicle.
• Place jack stands under the rear pinch welds or approved support points on both sides; lower the vehicle gently onto the stands with the floor jack.
• Give the vehicle a firm push to make sure it is stable on the stands before crawling under.

Step 2: Remove the rear wheels

• Use the 21mm lug wrench or 21mm socket and ratchet to remove the rear wheel lug nuts.
• Remove both rear wheels and set them aside.
• Place nuts in a small tray so none roll away.

Step 3: Inspect the rear brake setup

• Shine a flashlight at the caliper and rotor to see how pads and clips are installed.
• Note the location of the pad with the wear indicator tab (if equipped); you’ll match this with the new pads.

Step 4: Remove the lower caliper slide bolt

• On one side, locate the two caliper slide bolts at the back of the caliper.
• Use a 14mm socket and ratchet to loosen and remove the lower caliper slide bolt.
• Leave the upper bolt in place for now; this lets you swing the caliper up.

Step 5: Swing up and support the caliper

• Rotate the caliper upward on the remaining upper slide bolt like a hinge.
• Use a bungee cord or mechanics wire to hang the caliper from the suspension spring or another solid point so it’s not hanging by the brake hose or EPB wiring.
• Never let the caliper dangle by the hose.

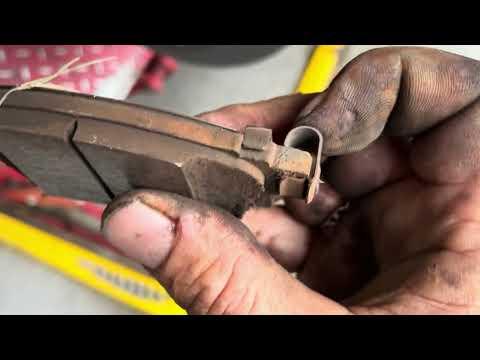

Step 6: Remove the old brake pads and hardware

• Slide the inner and outer brake pads out of the caliper bracket by hand; use a flathead screwdriver gently if they are stuck.
• Remove the metal pad clips (hardware) from the caliper bracket by hand or with the flathead screwdriver.

Step 7: Clean the caliper bracket and contact points

• Use a wire brush to clean rust and debris from the pad support areas on the caliper bracket where the clips sit.
• Spray brake cleaner on the bracket and rotor contact area (avoid rubber parts and painted body surfaces); wipe dry with shop rags.
• Keep cleaner off pads; it ruins friction material.

Step 8: Retract the caliper piston

• Check that the electronic parking brake is still OFF and ignition is OFF.
• Place an old pad against the caliper piston face.
• Use a C-clamp or disc brake piston spreader to slowly push the piston back into the caliper until it is fully seated. Turn the clamp a little at a time to avoid damage.
• If you feel very hard resistance, stop and confirm the EPB is released and you are straight on the piston.

Step 9: Install new hardware (pad clips)

• Snap the new pad clips from your hardware kit into the caliper bracket by hand. They should sit flat and fully seated.
• Lightly apply brake grease to the surfaces of the clips where the pads will slide, and to the small “ears” of the pads that contact the clips. Do not get grease on the friction material.

Step 10: Install the new pads

• Position the new inner and outer pads into the bracket, making sure they slide smoothly in the new clips.
• If one pad has a wear indicator tab, install it in the same position as the original (usually inner pad, leading edge).

Step 11: Reinstall and torque the caliper

• Rotate the caliper down over the new pads and onto the bracket.
• Align the lower slide bolt hole.
• Apply a tiny amount of brake grease to the smooth part of the slide bolt if it’s dry.
• Install the lower slide bolt by hand, then tighten with a 14mm socket and ratchet.
• Using a torque wrench with 14mm socket, tighten both upper and lower slide bolts to 34 Nm (25 ft-lbs).

Step 12: Repeat steps 4–11 on the other rear side

• Move to the other rear brake and repeat the same process: remove lower bolt, swing caliper, remove pads and clips, clean, retract piston, install new clips and pads, then torque slide bolts to 34 Nm (25 ft-lbs).

Step 13: Reinstall wheels and lower the vehicle

• Place each rear wheel back on the hub and thread the lug nuts on by hand.
• Snug the nuts in a star pattern with the 21mm lug wrench, but do not fully torque yet.
• Use the floor jack to lift the Rogue slightly, remove the jack stands, then lower the vehicle fully to the ground.
• Use the torque wrench with 21mm socket to tighten the lug nuts in a star pattern to 113 Nm (83 ft-lbs).

Step 14: Pump the brake pedal and check the EPB

• Sit in the driver’s seat and, with the engine OFF, slowly press the brake pedal several times until it becomes firm. This seats the new pads.
• Turn the ignition ON and verify there are no brake warning lights.
• Apply the electronic parking brake by pulling the EPB switch; confirm the EPB indicator comes on and there are no error messages.

---

✅ After Repair

• Start the engine and carefully test the brakes at low speed in a safe area. The pedal should feel firm and the vehicle should stop smoothly without pulling.
• Listen for grinding, scraping, or clunking noises from the rear; if you hear any, stop and re-check pad placement and hardware.
• For the first 300–500 km, avoid very hard stops if possible to allow the pads to bed in.
• After a short drive, safely recheck the lug nut torque with your torque wrench set to 113 Nm (83 ft-lbs).

---

💰 DIY vs Shop Cost

Shop Cost: $350–$550 (parts + labor)

DIY Cost: $80–$160 (parts only)

You Save: $270–$390 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours.

---
