🔧 Camry - Rear Brake Pad Replacement

You’ll remove the rear wheels, swing the rear brake calipers out of the way, swap the worn pads for new ones, then compress the caliper piston so everything fits back together safely. Doing this on time prevents metal-to-metal grinding, rotor damage, and poor stopping power.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🛑 Work on level ground and chock the front wheels before lifting the rear.
• 🛑 Support the car with jack stands; never rely on a floor jack alone.
• 🛑 Brake dust is hazardous—use brake cleaner, not compressed air.
• 🛑 Do not let the caliper hang by the brake hose; use a bungee cord to support it.
• 🛑 Keep grease off pad friction material and rotor surfaces.
• 🛑 Battery disconnect is not required for this mechanical rear brake setup.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• Breaker bar (1/2" drive)
• Torque wrench (10-200 ft-lbs range)
• 14mm socket
• 17mm socket
• Ratchet (3/8" or 1/2" drive)
• Flat trim tool or flathead screwdriver
• C-clamp brake piston compressor
• Bungee cord
• Wire brush
• Brake cleaner spray
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear brake pad set - Qty: 1
• Brake caliper grease (high-temp silicone) - Qty: 1
• Brake cleaner - Qty: 1
• Rear brake hardware kit (clips/shims) - Qty: 1 Recommended if hardware is rusty

---

📋 Before You Begin

• Park on level ground, shift to P, and set the parking brake.
• Place wheel chocks in front of both front tires.
• Crack the rear wheel lug nuts loose using a 21mm socket and breaker bar (don’t remove them yet).
• Pop the hood and loosen the brake fluid reservoir cap (leave it sitting on top). This helps the piston compress smoothly.
• “Slide pin” bolts hold the caliper to its guide pins. You’ll remove these to swing the caliper up.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the rear

• Lift the rear at the proper rear jacking point using a floor jack.
• Set the car down onto jack stands at the rear support points.
• Give the car a gentle push to confirm it’s stable before you work underneath/around the wheel wells.

Step 2: Remove the rear wheels

• Remove the lug nuts using a 21mm socket and ratchet.
• Remove both rear wheels and set them aside.

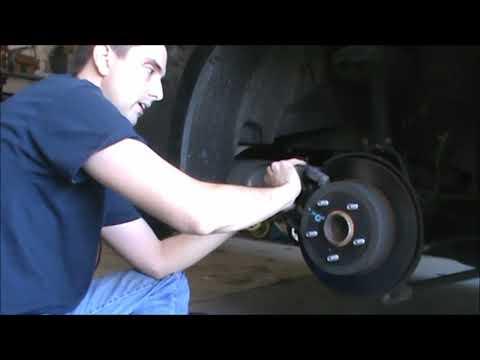

Step 3: Remove the caliper slide pin bolts

• Turn the steering wheel is not needed for rear, but rotate the hub by hand to access bolts if needed.
• Remove the two rear caliper slide pin bolts using a 14mm socket and ratchet.
• The caliper is the “clamp” over the rotor. Carefully lift/swing the caliper up and off the pads.
• Support the caliper with a bungee cord so the brake hose is not stretched.

Step 4: Remove the old brake pads and hardware

• Pull the inner and outer pads out of the caliper bracket by hand. Use a flat trim tool or flathead screwdriver gently if they’re stuck.
• Remove the pad clips/shims (if equipped) from the bracket.
• Clean the bracket pad “shelves” (where the pad ears sit) using a wire brush and brake cleaner spray.

Step 5: Compress the rear caliper piston

• Place an old pad against the piston face, then compress the piston slowly using a C-clamp brake piston compressor.
• Go slow and watch the brake fluid reservoir—if it starts to overflow, stop and remove a little fluid safely.
• The “piston” is the round part that pushes the pad. It must be fully seated to fit new, thicker pads.

Step 6: Install new hardware (if replacing) and grease contact points

• Install new pad clips/shims into the bracket (from your hardware kit) by hand.
• Apply a very thin film of brake caliper grease (high-temp silicone) to:
• Pad ears (the metal tabs that slide in the clips).
• Shim-to-pad contact points (if shims are used).
• Do not grease pad friction surfaces.

Step 7: Install the new rear pads

• Install the inner and outer pads into the bracket by hand. They should slide freely in the clips.
• If a pad has a wear indicator, install it in the same position/style as the originals.

Step 8: Reinstall the caliper and torque bolts

• Swing the caliper back down over the new pads.
• Install the caliper slide pin bolts by hand first to avoid cross-threading, then tighten using a 14mm socket and torque wrench.
• Torque to 34 Nm (25 ft-lbs) for the rear caliper slide pin bolts.

Step 9: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread all lug nuts.
• Lower the car off the jack stands using a floor jack.
• Tighten lug nuts in a star pattern using a torque wrench.
• Torque to 103 Nm (76 ft-lbs) for the wheel lug nuts.

---

✅ After Repair

• With the engine off, slowly pump the brake pedal 10–15 times until it feels firm. This seats the pads against the rotors.
• Check the brake fluid level and reinstall the reservoir cap snugly.
• Test at low speed in a safe area: confirm normal braking, no pulling, and no abnormal noises.
• Bed-in procedure: Do 6–10 moderate stops from 35–10 mph, letting brakes cool between stops.
• Recheck for leaks and re-torque lug nuts after 25–50 miles using a torque wrench.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $130-$410 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
