🔧 Tahoe - Rear Brake Pad Replacement

Replacing the rear brake pads on your Tahoe means removing the rear wheels, swinging the rear brake caliper off the rotor, swapping the pads (and hardware), then reassembling with the correct torque. This restores braking performance and prevents metal-to-metal damage.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🛑 Work on a flat, solid surface and support the Tahoe with jack stands before going under or removing wheels.
• 🛑 Keep the parking brake released while servicing the rear brakes (your parking brake is a small drum brake inside the rear rotor “hat”).
• 🛑 Brake dust is harmful—use brake cleaner, not compressed air, and wear a dust mask.
• 🛑 Do not let the caliper hang by the brake hose; support it with a hanger.
• 🛑 Watch the brake fluid level when compressing pistons—fluid can overflow and damage paint.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (50-200 ft-lbs range)
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-50 ft-lbs range)
• Socket set (metric)
• C-clamp (6" minimum)
• Brake caliper hanger hook
• Flat-blade screwdriver
• Wire brush
• Small bungee cord
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear brake pad set - Qty: 1
• Rear brake pad hardware kit (abutment clips) - Qty: 1
• Brake lubricant (silicone-based) - Qty: 1
• Brake cleaner - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 (as needed)

---

📋 Before You Begin

• Park on level ground, shift to P, and place wheel chocks in front of the front tires.
• Make sure the parking brake is OFF (released).
• Pop the hood and check the brake fluid reservoir level. If it’s near “MAX,” remove a little fluid before compressing caliper pistons.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the rear wheel lug nuts

• Use a 21mm socket and breaker bar to loosen the lug nuts about 1/2 turn while the tire is still on the ground.

Step 2: Lift and support the rear of the Tahoe

• Use a floor jack (rated 3-ton minimum) to lift the rear.
• Place jack stands (rated 3-ton minimum) under the frame and slowly lower onto the stands.
• Shake the vehicle slightly to confirm it’s stable before continuing.

Step 3: Remove the rear wheels

• Remove the lug nuts using the 21mm socket and take both rear wheels off.

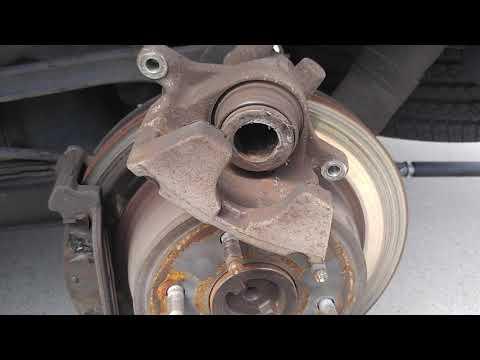

Step 4: Locate the rear caliper and remove the caliper bolts

• Turn the steering wheel is not needed—rear is fixed. Look at the rear brake caliper on the rotor.
• Use your 3/8" drive ratchet and the correct metric socket to remove the two caliper guide pin bolts (the smaller bolts on the back of the caliper).
• Tip: Clean bolt heads with a wire brush first.

Step 5: Lift the caliper off and support it

• Carefully lift the caliper off the rotor. If it’s tight, use a flat-blade screwdriver to gently push the pad away from the rotor to create a little clearance.
• Hang the caliper using a brake caliper hanger hook (this supports it so the brake hose isn’t stretched).

Step 6: Remove the old pads and hardware clips

• Slide the inner and outer pads out of the caliper bracket by hand.
• Remove the stainless hardware clips from the bracket (these are the “abutment clips”—they guide the pads).
• Use a wire brush to clean rust from the pad contact surfaces on the bracket.

Step 7: Compress the caliper piston

• Place an old brake pad against the piston face (to protect it), then use a C-clamp (6" minimum) to slowly press the piston back into the caliper.
• Go slowly and check the brake fluid reservoir level as you compress.

Step 8: Install new hardware clips and lubricate contact points

• Snap the new hardware clips into the caliper bracket by hand.
• Apply a thin layer of brake lubricant (silicone-based) to the pad “ears” where they slide on the clips.
• Do not get lubricant on the pad friction material or rotor surface.

Step 9: Install the new rear brake pads

• Slide the new inner and outer pads into the bracket.
• If your pads include wear indicators, match their position to the old pad setup on that side.

Step 10: Reinstall the caliper and torque the bolts

• Lower the caliper over the new pads.
• Install the caliper guide pin bolts using the 3/8" drive ratchet.
• Tighten with a torque wrench: Torque to 31 Nm (23 ft-lbs).

Step 11: Repeat on the other rear wheel

• Repeat Steps 4–10 on the opposite rear brake.
• Tip: Do one side at a time to compare parts.

Step 12: Reinstall wheels and torque lug nuts

• Reinstall the rear wheels and hand-thread all lug nuts.
• Lower the Tahoe off the jack stands using the floor jack.
• Torque the lug nuts in a star pattern using a torque wrench: Torque to 190 Nm (140 ft-lbs).

---

✅ After Repair

• With the engine OFF, pump the brake pedal 10–15 times until it feels firm (this seats the pistons against the new pads).
• Check the brake fluid level and top off with DOT 3 if needed.
• Do a slow test drive in a safe area and confirm normal braking with no pulling or grinding.
• Pad bedding (recommended): make 6–10 moderate stops from 30–35 mph to 5 mph, allowing a short cool-down between stops.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$550 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $240-$370 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
