🔧 Silverado 1500 - Rear Brake Pad Replacement

This job replaces the rear disc brake pads on your Silverado 1500 so the truck stops safely and quietly again. You’ll remove the rear wheels, take the calipers off, swap the pads, and reassemble with proper lubrication and torque.

Difficulty Level: Beginner/Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• ⚠️ Always support the truck with jack stands; never rely on the floor jack alone.
• ⚠️ Chock (block) the front wheels so the truck cannot roll.
• ⚠️ Do not press the brake pedal with a caliper removed; you can pop the piston out.
• ⚠️ Keep grease and brake fluid off the pad friction surfaces and rotor faces.
• ⚠️ This hybrid has high-voltage systems, but the rear brakes are normal hydraulic brakes; you do not need to power down the HV battery for pad replacement. Do keep the ignition OFF the whole time.
• ⚠️ Brake dust can be harmful; avoid blowing with compressed air. Use brake cleaner spray instead.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum, Qty: 2)
• 🛠️ Wheel chocks
• 🛠️ 21mm socket
• 🛠️ 1/2" drive breaker bar
• 🛠️ 1/2" drive torque wrench (up to 200 ft-lbs)
• 🛠️ 3/8" drive ratchet
• 🛠️ 13mm socket
• 🛠️ 18mm socket
• 🛠️ Flat-head screwdriver (medium)
• 🛠️ C-clamp (6" or larger) or disc brake caliper compressor tool
• 🛠️ Wire brush (small)
• 🛠️ Bungee cord or mechanic’s wire
• 🛠️ Brake cleaner spray
• 🛠️ Shop rags or paper towels
• 🛠️ Nitrile gloves
• 🛠️ Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Rear brake pad set - Qty: 1 (serves both rear wheels, replace in pairs)
• 🔩 Rear brake pad hardware kit (anti-rattle clips / abutment clips) - Qty: 1
• 🔩 High-temperature brake grease - Qty: 1 small tube
• 🔩 Brake cleaner - Qty: 1–2 cans
• 🔩 Brake fluid (DOT 3 or DOT 4 as specified on cap) - Qty: 1 small bottle (for topping off if needed)

---

📋 Before You Begin

• Park the Silverado on a flat, solid surface with plenty of space.
• Shift to PARK and set the parking brake pedal firmly.
• Loosen the rear wheel lug nuts 1/2 turn with the 21mm socket while the truck is still on the ground.
• Turn ignition OFF and remove the key. Do not turn ignition on during the job.
• Place wheel chocks in front of and behind one front wheel.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and support the rear of the truck

• Position the floor jack under the rear axle tube (center or just inboard of the leaf spring mounts).
• Raise the rear of the truck until both rear wheels are off the ground.
• Place jack stands under the axle tubes, one on each side, at equal height.
• Lower the truck gently onto the jack stands and leave the jack as a backup if possible. Always test stability before working.

Step 2: Remove the rear wheels

• Use the 21mm socket and breaker bar or ratchet to remove the lug nuts.
• Remove both rear wheels and set them aside under the truck (extra safety barrier).

Step 3: Inspect the brake layout

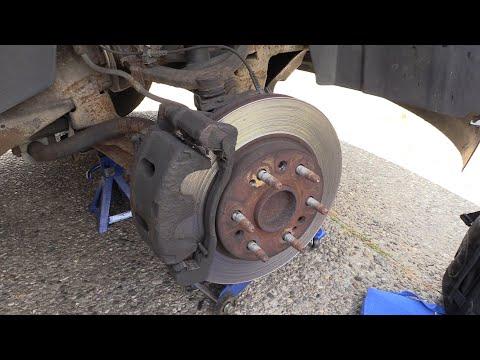

• You’ll see the rotor (disc), the caliper (clamps the rotor), and the caliper bracket that holds the pads.
• The parking brake on your truck is a small drum brake inside the rotor “hat.” Try not to disturb the parking brake hardware.

Step 4: Release the parking brake

• Before you remove the caliper, go back into the cab and release the parking brake pedal.
• This removes pressure from the small drum brake so the rotor can move freely if needed.

Step 5: Remove the caliper guide pin bolts

• On the back of the caliper, locate the two small slide/guide pin bolts (top and bottom).
• Use a 13mm socket and 3/8" ratchet to loosen and remove these two bolts.
• Support the caliper with one hand as you remove the last bolt so it doesn’t drop.

Step 6: Remove and support the caliper

• Slide the caliper off the pads and rotor. You may need to wiggle it slightly.
• Use a bungee cord or mechanic’s wire to hang the caliper from the frame or spring.
• Do not let the caliper hang by the rubber brake hose; this can damage the hose.

Step 7: Remove the old pads and hardware

• Pull the inner and outer pads out of the caliper bracket by hand; you may use a flat-head screwdriver to gently pry if they are stuck.
• Remove the metal pad clips (abutment clips) from the caliper bracket with the flat-head screwdriver.
• Note how the clips were installed; your new clips go in the same way.

Step 8: Clean the caliper bracket and rotor area

• Use the wire brush to clean rust and debris from the areas of the bracket where the pad clips sit.
• Spray brake cleaner on the bracket and rotor surface and wipe with shop rags.
• Avoid spraying brake cleaner on rubber boots or painted surfaces when possible.

Step 9: Install new pad hardware

• Snap the new pad clips from your hardware kit into the cleaned caliper bracket by hand. They should sit flat and secure.
• Apply a very thin layer of brake grease to the areas of the clips where the pads will slide. Thin film is enough.

Step 10: Compress the caliper piston

• Open the hood and locate the brake fluid reservoir. Make sure the level is not already at the very top; if it is, remove a little with a clean rag or syringe so it does not overflow when you compress the piston.
• Back at the caliper, place an old pad against the piston face.
• Use a C-clamp or caliper compressor tool to slowly push the piston fully back into the caliper body.
• Tighten the clamp a little at a time and watch the fluid level in the reservoir. Stop if it gets too close to the top.

Step 11: Install the new brake pads

• Match the shape of the new pads to the old ones so you know which is inner and which is outer (the inner often has a wear indicator tab).
• Slide the new pads into the pad clips on the caliper bracket by hand. They should move freely but not be loose.
• If they are very tight, remove them and clean/grease the clip contact areas again lightly.

Step 12: Reinstall the caliper over the new pads

• Swing the caliper back over the rotor and pads.
• Align the caliper ears with the guide pin holes on the caliper bracket.
• Install the two guide pin bolts by hand first to avoid cross-threading.
• Use the 13mm socket and 3/8" ratchet to snug them down, then tighten to 31 Nm (23 ft-lbs).

Step 13: Repeat on the other side

• Repeat Steps 5–12 on the opposite rear wheel.
• Always replace rear pads on both sides in the same job for balanced braking.

Step 14: Reinstall the wheels

• Put each wheel back on the hub and start all lug nuts by hand.
• Use the 21mm socket and ratchet to snug the lug nuts in a star pattern while the truck is still on jack stands.

Step 15: Lower the truck and torque the lug nuts

• Use the floor jack to lift the rear axle slightly, remove the jack stands, and lower the truck fully to the ground.
• Use the torque wrench with the 21mm socket to tighten all rear lug nuts in a star pattern to 190 Nm (140 ft-lbs).

Step 16: Final checks

• Check the brake fluid level in the reservoir. Top off with the correct brake fluid type if needed, but do not overfill.
• Pump the brake pedal slowly 10–15 times until it feels firm again. This seats the pads against the rotors.
• Reapply and release the parking brake pedal a few times to confirm normal feel.

---

✅ After Repair

• Start the engine and press the brake pedal; it should feel firm and not sink to the floor.
• With the truck in gear, move slowly in a safe area and gently test the brakes at low speed first.
• Perform 8–10 gentle stops from about 30–40 km/h (20–25 mph) to bed in the new pads; avoid hard stops unless necessary for the first 300–500 km.
• Listen for scraping or grinding; if you hear anything abnormal, stop and recheck your work.

---

💰 DIY vs Shop Cost

Shop Cost: $300–$450 (parts + labor)

DIY Cost: $80–$150 (parts only)

You Save: $150–$300 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.0–1.5 hours.

---
