🔧 Rogue - Rear Brake Pads & Rotor Replacement

You’ll be removing the rear wheels, swapping the brake pads, and replacing the rotors. New rotors give the new pads a flat, clean surface so you get smooth stopping and avoid vibration.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Support your A4—use jack stands, never the jack alone.
• 🛑 Do not press the brake pedal with a caliper removed.
• 🛑 Keep grease off pad/rotor friction surfaces; use brake cleaner.
• 🛑 Parking brake must be fully released during rotor removal/installation.
• 🛑 If brake fluid rises near the reservoir “MAX,” remove a little with a suction tool.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (20-200 Nm range)
• 14mm socket
• 19mm socket
• Flat-blade screwdriver
• C-clamp piston compressor (specialty)
• Wire brush
• Bungee cord
• Brake parts cleaner
• Shop towels
• Nitrile gloves
• Safety glasses
• Rubber mallet

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear brake pad set - Qty: 1
• Rear brake rotors - Replace in pairs - Qty: 2
• Rear brake hardware kit (clips/shims) - Qty: 1
• Brake caliper slide pin grease (silicone) - Qty: 1
• High-temperature anti-seize compound - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 quart

---

📋 Before You Begin

• Park on level ground, turn the engine off, and chock the front wheels.
• Release the parking brake fully (this Rogue uses a mechanical parking brake).
• Loosen rear lug nuts slightly using a 21mm socket and breaker bar before lifting.
• Open the hood and locate the brake fluid reservoir; keep the cap loosely set on top.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the rear

• Use a floor jack to lift at the rear jacking point, then support with jack stands.
• Remove both rear wheels using a 21mm socket.

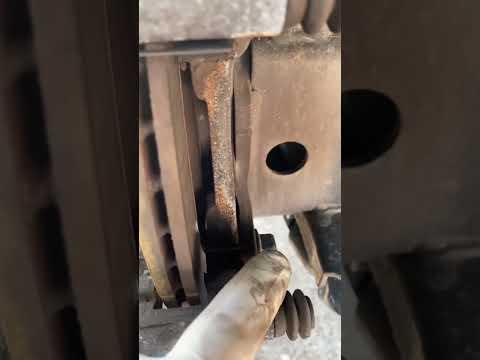

Step 2: Remove the caliper (the “clamp” that squeezes the pads)

• Turn the steering wheel straight and look at the rear caliper.
• Remove the caliper slide pin bolts using a 14mm socket.
• Lift the caliper off and hang it with a bungee cord (do not let it hang by the hose).
• Tip: Take a quick photo before disassembly.

Step 3: Remove old pads and hardware

• Slide the pads out by hand; use a flat-blade screwdriver gently if stuck.
• Remove the pad clips (hardware) from the caliper bracket.
• Clean the bracket’s pad “tracks” with brake parts cleaner and a wire brush.

Step 4: Remove the caliper bracket (the pad “frame”)

• Remove the two caliper bracket bolts using a 19mm socket and breaker bar.
• Torque to 98 Nm (72 ft-lbs) during reassembly.
• Tip: These bolts are tight—steady pressure works best.

Step 5: Remove the rotor

• Pull the rotor straight off the hub.
• If it’s stuck, spray the hub area with brake parts cleaner, then tap the rotor hat with a rubber mallet.
• If the rotor won’t come off, the parking brake shoes may be holding it (this Rogue uses a small drum brake inside the rotor “hat”). Use a flat-blade screwdriver through the access slot to back off the star-wheel adjuster a little, then retry.

Step 6: Prep the hub and install the new rotor

• Clean rust from the hub face using a wire brush (a flat hub prevents brake vibration).
• Apply a very thin film of high-temperature anti-seize compound to the hub face (avoid wheel studs).
• Clean the new rotor with brake parts cleaner and shop towels to remove packing oil.
• Install the new rotor and hold it in place with one lug nut hand-tight using a 21mm socket.

Step 7: Reinstall the bracket and service the slide pins

• Reinstall the caliper bracket and tighten the bolts using a 19mm socket.
• Torque to 98 Nm (72 ft-lbs).
• Pull the slide pins out of the bracket by hand (slide pins are the small bolts/pins the caliper “floats” on).
• Wipe old grease off with shop towels, then apply silicone slide pin grease and reinstall the pins.

Step 8: Install new hardware and pads

• Install new pad clips from the hardware kit into the bracket.
• Apply a light smear of silicone slide pin grease where the pad ears contact the clips (not on the pad/rotor face).
• Install the new inner and outer pads into the bracket.

Step 9: Compress the caliper piston and reinstall the caliper

• Use a C-clamp piston compressor (specialty) to slowly push the caliper piston straight back in (a C-clamp is a screw clamp that presses the piston evenly).
• Watch the brake fluid reservoir while compressing; remove excess fluid if it nears the top.
• Reinstall the caliper over the new pads.
• Install the slide pin bolts using a 14mm socket.
• Torque to 26 Nm (19 ft-lbs).

Step 10: Reinstall wheels

• Install the wheels and hand-tighten lug nuts using a 21mm socket.
• Lower the vehicle using the floor jack.
• Tighten lug nuts in a star pattern with a torque wrench: Torque to 113 Nm (83 ft-lbs).

Step 11: Set pedal and verify parking brake

• Pump the brake pedal slowly 10-15 times until it feels firm (this seats the pads).
• Apply and release the parking brake a few times to confirm normal feel/hold.

---

✅ After Repair

• With the vehicle in a safe area, test brakes at low speed first.
• Check brake fluid level and top off with DOT 3 if needed.
• Look for leaks, unusual noises, or a pulling sensation.
• Bed-in (break-in) the pads: make 6-10 moderate stops from ~30 mph to ~5 mph, letting brakes cool 30-60 seconds between stops.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $160-$350 (parts only)

You Save: $290-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.

Assumption: Torque specs listed match the most common Rogue rear brake setup; if your bracket/bolt sizes differ, use the same steps and torque to the correct spec for the fastener size.
