🔧 Camry - Rear Brake Pads & Rotors Replacement

You’ll be replacing the rear brake pads and brake rotors on your Camry. This restores stopping power, prevents vibrations, and protects the calipers and wheel bearings from heat damage.

Difficulty Level: Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• ⚠️ Always work on a cool brake system; hot brakes can burn you.
• ⚠️ Support your Camry with jack stands; never rely only on a jack.
• ⚠️ Wear safety glasses and a dust mask; brake dust is harmful to breathe.
• ⚠️ Keep the car in Park and chock the front wheels to prevent rolling.
• ⚠️ Do not press the brake pedal with a caliper removed; it can push the piston out.
• ⚠️ Your rear rotors have the parking brake shoes inside them; avoid prying hard on the rotor so you don’t damage those shoes.
• Battery disconnection is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum)
• 🛠️ Wheel chocks
• 🛠️ Lug wrench 21mm
• 🛠️ Socket wrench 3/8" drive
• 🛠️ Socket wrench 1/2" drive
• 🛠️ 14mm socket
• 🛠️ 17mm socket
• 🛠️ Breaker bar 1/2" drive
• 🛠️ Torque wrench 1/2" drive (10–150 ft-lbs range)
• 🛠️ C-clamp 6" or disc brake piston spreader tool
• 🛠️ Flathead screwdriver medium
• 🛠️ Wire brush small
• 🛠️ Bungee cord or mechanic’s wire
• 🛠️ Rubber mallet
• 🛠️ Needle-nose pliers
• 🛠️ 8mm x 1.25 bolt (for rotor removal, specialty)
• 🛠️ Brake cleaner spray
• 🛠️ Clean rags
• 🛠️ Small wire or nylon brush for slide pins
• 🛠️ Disposable gloves
• 🛠️ Safety glasses
• 🛠️ Dust mask

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Rear brake pad set - Qty: 1 (replace both sides)
• 🔩 Rear brake rotors - Qty: 2 (replace in pairs)
• 🔩 Rear brake pad hardware kit (anti-rattle clips/shims) - Qty: 1
• 🔩 High-temperature brake grease - Qty: 1
• 🔩 Brake cleaner (aerosol) - Qty: 1–2 cans
• 🔩 Anti-seize compound - Qty: 1 (optional but recommended)
• 🔩 Replacement caliper slide pin boots - Qty: 1 set (optional if damaged)

---

📋 Before You Begin

• Park your Camry on a flat, solid surface.
• Place the gear selector in Park and set the parking brake, then chock the front wheels.
• Loosen rear wheel lug nuts 1/2 turn with the 21mm lug wrench before lifting.
• Plan to do one side at a time so you can look at the other side as a reference.
• Have a clean area ready to lay out parts in order.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and Support the Rear of the Car

• Position the floor jack under the rear center jacking point (under the subframe, just ahead of the rear wheels).
• Jack up the rear until both rear wheels are off the ground.
• Place jack stands under the rear pinch welds or approved support points on both sides.
• Lower the car gently onto the stands using the floor jack.
• Double-check stability by gently rocking the car by hand.
• Remove the rear lug nuts fully with the 21mm lug wrench and remove both rear wheels.

Step 2: Remove the Rear Caliper (First Side)

• Turn the steering wheel is not needed for rear; just make sure you have space.
• Locate the two caliper slide pin bolts on the back of the caliper (top and bottom).
• Use a 14mm socket and 3/8" socket wrench to loosen and remove both caliper slide pin bolts.
• Gently pull the caliper off the rotor. If stuck, wiggle it by hand.
• Hang the caliper from the suspension spring using a bungee cord so the brake hose is not stretched.
• Never let the caliper hang by the hose.

Step 3: Remove Old Brake Pads and Hardware

• Slide the old brake pads out of the caliper bracket by hand.
• Use a flathead screwdriver gently if they are tight.
• Remove the metal pad clips from the caliper bracket with the flathead screwdriver.
• Set pads and clips aside in case you want to compare with the new ones.

Step 4: Remove the Caliper Bracket

• Locate the two large caliper bracket bolts on the back of the knuckle.
• Use a 17mm socket, breaker bar, and 1/2" drive to loosen these bolts.
• Remove both bolts completely and take off the caliper bracket.
• Note the bolt locations and keep them clean.

Step 5: Remove the Old Rotor

• Make sure the parking brake is released now; otherwise the rotor will not come off.
• If the rotor is loose, pull it straight off by hand.
• If it is stuck from rust:
  • Thread an 8mm x 1.25 bolt into the threaded hole(s) on the rotor face.
  • Tighten the bolt with a 14mm socket until the rotor pops free.
  • Alternatively, tap the rotor hat (center area) with a rubber mallet to break rust.
• Be careful not to damage the parking brake shoes inside the rotor.

Step 6: Inspect Parking Brake and Clean Hub

• Look at the parking brake shoes and hardware inside the drum area of the rotor:
  • Check for broken springs or loose parts.
  • If anything looks badly damaged, stop and get it repaired before reassembly.
• Spray the hub surface lightly with brake cleaner and wipe with a clean rag.
• Use a wire brush to remove rust from the hub face where the rotor sits.
• Apply a very thin film of anti-seize compound to the hub face to help prevent future rust (keep it off the studs and rotor friction surface).

Step 7: Prepare and Install the New Rotor

• Spray the new rotor (especially the friction surfaces) with brake cleaner to remove oil coating and wipe with a clean rag.
• Slide the new rotor onto the hub, making sure it sits flush.
• You can hold the rotor in place by threading two lug nuts by hand using the 21mm lug wrench, just snug, not tight.

Step 8: Clean and Prepare the Caliper Bracket

• Use a wire brush to clean the areas of the caliper bracket where the pad clips sit.
• Remove the caliper slide pins from the bracket one at a time by pulling them out by hand or with needle-nose pliers.
• Wipe each pin clean with a clean rag and inspect for rust or pitting.
• Apply a thin coat of high-temperature brake grease to each slide pin and reinstall them, making sure they move smoothly.
• If the rubber boots are torn, replace them with new boots from your kit.
• Install the new pad clips from the hardware kit into the bracket by pressing them in by hand.

Step 9: Reinstall the Caliper Bracket

• Place the caliper bracket back over the new rotor and line up the bolt holes.
• Install the two caliper bracket bolts by hand to avoid cross-threading.
• Tighten them using the 17mm socket and 1/2" socket wrench.
• Then torque both bolts with the torque wrench and 17mm socket to 107 Nm (79 ft-lbs).

Step 10: Install New Brake Pads

• Apply a small amount of high-temperature brake grease to the areas of the pad backing plate that contact the clips (not on the friction material).
• Slide the inner and outer pads into the caliper bracket, making sure any wear indicator tab (squealer) matches the original pad position.
• Pad friction surfaces must stay completely clean and dry.

Step 11: Compress the Caliper Piston

• Remove the brake fluid reservoir cap under the hood so pressure can vent.
• Place an old brake pad against the caliper piston face.
• Use a C-clamp or disc brake piston spreader to slowly push the piston back into the caliper until it is fully seated.
• Watch the brake fluid level; if it gets very full, remove some with a clean syringe or rag.

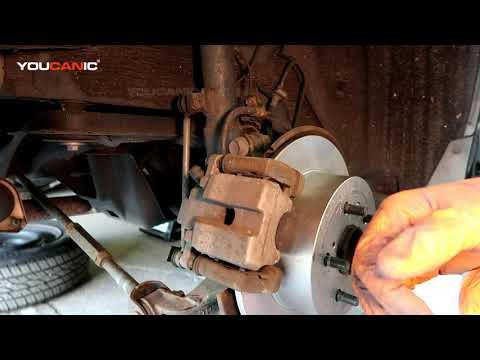

Step 12: Reinstall the Caliper Over New Pads

• Position the caliper over the new pads and onto the caliper bracket.
• Align the caliper slide pin holes.
• Install the two slide pin bolts by hand.
• Tighten the bolts using a 14mm socket and 3/8" socket wrench.
• Torque both slide pin bolts with the torque wrench and 14mm socket to 34 Nm (25 ft-lbs).

Step 13: Repeat for the Other Rear Side

• Repeat Steps 2–12 on the other rear wheel.
• Make sure both sides have:
  • New rotors installed flush.
  • New pads and hardware.
  • Slide pins cleaned and lubricated.
  • All bolts torqued correctly.

Step 14: Reinstall Wheels and Lower the Car

• Put each rear wheel back on the hub and hand-thread the lug nuts.
• Snug the lug nuts in a star pattern with the 21mm lug wrench (do not fully tighten in the air).
• Use the floor jack to raise the car slightly, remove the jack stands, then lower the car to the ground.
• Torque each lug nut to 103 Nm (76 ft-lbs) in a star pattern using the torque wrench and 21mm socket.

Step 15: Final Checks

• Reinstall the brake fluid reservoir cap under the hood.
• Sit in the driver’s seat and slowly pump the brake pedal several times until it feels firm.
• Check under the car for any leaks or loose parts.
• Remove all tools and wheel chocks.

---

✅ After Repair

• Start the engine and press the brake pedal firmly; it should feel solid, not spongy.
• With the car in Drive, let it roll very slowly in an open, safe area and gently apply the brakes to confirm proper operation.
• Perform a bedding-in process:
  • Make 5–8 moderate stops from 30–40 km/h to 10 km/h, allowing the brakes to cool slightly between stops.
  • Avoid hard emergency-style stops for the first 300–500 km unless needed.
• Listen for grinding or loud squealing; if you hear this, recheck pad installation and rotor seating.
• Recheck lug nut torque after about 50–100 km of driving.

---

💰 DIY vs Shop Cost

Shop Cost: $450–$650 (parts + labor)

DIY Cost: $150–$220 (parts only)

You Save: $300–$430 by doing it yourself!

Shop labor rates typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours.

---
