🔧 Camry - Rear Brake Pads & Rotor Replacement

You’ll be removing the rear wheels, unbolting the rear calipers, swapping the pads and rotors, then reassembling everything with the correct torque. New rotors give a fresh, flat surface so the new pads can brake smoothly and quietly.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Support the Camry with jack stands—never rely on a floor jack alone.
• 🛑 Keep the car OFF (not in READY). Keep the key/fob away from the car so it can’t turn on.
• 🛑 Brake dust is unhealthy—wear a mask and use brake cleaner, not compressed air.
• 🛑 Do not press the brake pedal while a caliper is off the rotor.
• 🛑 Hang the caliper with a hook—don’t let it dangle by the rubber brake hose.
• 🛑 Use wheel chocks on the front wheels; you’ll be working on the rear.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• Breaker bar (1/2")
• Torque wrench (1/2")
• 14mm socket
• 17mm socket
• Ratchet (3/8")
• Torque wrench (3/8")
• Flat-blade screwdriver
• C-clamp (6")
• Brake caliper hanger hook (specialty)
• Wire brush
• Rubber mallet
• Bungee cord
• Brake cleaner spray
• High-temp silicone brake grease
• Threadlocker (blue)
• Mechanic gloves
• Safety glasses
• Dust mask

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear brake pad set - Qty: 1
• Rear brake rotors - Qty: 2
• Rear brake pad hardware kit (clips/shims) - Qty: 1
• Brake parts cleaner - Qty: 1
• Brake caliper slide pin boots (if damaged) - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the shifter in P, and turn the car fully OFF.
• Chock both front wheels using wheel chocks.
• Release the parking brake fully (rear rotor removal can be impossible if it’s applied).
• Loosen the rear wheel lug nuts 1/2 turn with a 21mm socket and breaker bar before lifting.
• A torque wrench sets bolts to the correct tightness.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the rear wheels

• Lift the rear using a floor jack (rated 3-ton minimum) at the rear center jacking point.
• Place jack stands (rated 3-ton minimum) under the rear side support points and lower onto the stands.
• Remove the lug nuts with a 21mm socket and ratchet (3/8"), then remove both rear wheels.

Step 2: Remove the caliper (the “squeeze” part)

• Turn the steering wheel is not needed on rear; just access the back of the caliper.
• Remove the two caliper slide pin bolts using a 14mm socket and ratchet (3/8").
• Carefully lift the caliper off the rotor.
• Hang the caliper using a brake caliper hanger hook (specialty) or bungee cord so the brake hose is not strained.
• Never let the caliper hang by the hose.

Step 3: Remove the old pads and hardware

• Slide the pads out by hand (use a flat-blade screwdriver gently if they’re stuck).
• Remove the pad hardware clips from the caliper bracket using a flat-blade screwdriver.
• Clean the bracket pad “rails” (where the clips sit) using brake cleaner spray and a wire brush.

Step 4: Remove the caliper bracket

• Remove the two caliper bracket bolts using a 17mm socket and breaker bar (1/2").
• Set the bracket aside.
• On reassembly, apply a small amount of threadlocker (blue) to these bolts.
• Torque to 107 Nm (79 ft-lbs) when reinstalling.

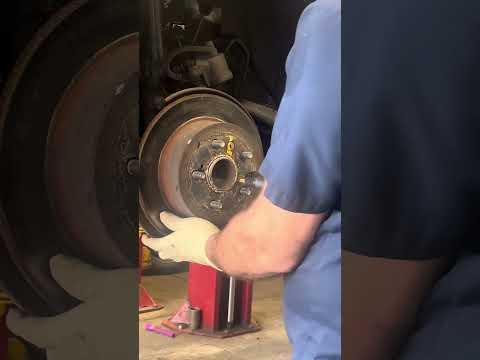

Step 5: Remove the rotor

• Pull the rotor straight off the hub by hand.
• If it’s stuck from rust, spray around the hub center with brake cleaner spray, then tap the rotor hat evenly with a rubber mallet until it loosens.
• If it still won’t come off, the Camry may have a small parking brake drum inside the rotor “hat.” Ensure the parking brake is fully released, then use a flat-blade screwdriver through the access hole to back off the star-wheel adjuster slightly (turn a little, try rotor, repeat).
• Small adjustments—don’t force the rotor.

Step 6: Prep the hub and install the new rotor

• Clean the hub face with a wire brush and brake cleaner spray so the new rotor sits perfectly flat.
• Clean both sides of the new rotor with brake cleaner spray to remove protective oil.
• Install the new rotor onto the hub.
• Hold the rotor in place temporarily by threading on one lug nut by hand (use your wheel’s lug nut and a 21mm socket lightly).

Step 7: Reinstall the bracket and new hardware clips

• Reinstall the caliper bracket using a 17mm socket and ratchet (3/8") to start the bolts, then tighten.
• Use a torque wrench (1/2") to tighten the bracket bolts: Torque to 107 Nm (79 ft-lbs).
• Install the new pad hardware clips into the bracket (snap in by hand; use a flat-blade screwdriver gently if needed).
• Apply a very thin film of high-temp silicone brake grease where the pad “ears” touch the clips.

Step 8: Compress the caliper piston

• Remove the brake fluid reservoir cap under the hood (this helps fluid return while compressing).
• Place an old pad against the piston face, then compress the piston slowly using a C-clamp (6").
• Stop if you feel extreme resistance and double-check the parking brake is released.
• Compress slowly to avoid fluid overflow.

Step 9: Install the new pads and reinstall the caliper

• Install the new inner and outer pads into the bracket by hand.
• If your pads include shims, install them as directed with the pad set.
• Lower the caliper over the new pads.
• Install the slide pin bolts using a 14mm socket and ratchet (3/8").
• Use a torque wrench (3/8") to tighten the slide pin bolts: Torque to 34 Nm (25 ft-lbs).

Step 10: Reinstall wheels and torque lug nuts

• Reinstall both wheels and hand-start all lug nuts.
• Lower the car off the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern using a torque wrench (1/2"): Torque to 140 Nm (103 ft-lbs).

Step 11: Pump the brake pedal before moving

• With the car still OFF, press the brake pedal slowly 10–15 times until it feels firm.
• Check brake fluid level and top up only if needed (do not overfill).

---

✅ After Repair

• Start the car and confirm there are no warning lights related to braking.
• Test brakes at low speed in a safe area. Listen for grinding or loud metal noise.
• Perform a basic bed-in: make 6–8 moderate stops from ~35 mph down to ~5 mph, letting brakes cool a bit between stops.
• Recheck for leaks and re-torque the lug nuts after 50–100 miles using a torque wrench (1/2"): Torque to 140 Nm (103 ft-lbs).

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $140-$320 (parts only)

You Save: $310-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
