🔧 Camry - Rear Brake Pads & Rotor Replacement

You’ll remove the rear calipers, swap the pads, and replace the rear rotors. On your Camry, the parking brake is a mechanical drum-in-hat setup inside the rear rotor, so the parking brake must be released to remove/install the rotors.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Work on level ground and chock the front wheels before lifting the rear.
• 🛑 Release the parking brake before removing rear rotors (it locks the drum shoes inside the rotor).
• 🛑 Support the car with jack stands; never rely on a floor jack alone.
• 🛑 Do not let the brake caliper hang by the rubber hose; support it with a hook/strap.
• 🛑 Avoid touching the friction surfaces of pads/rotors with greasy hands; use brake cleaner.
• 🛑 Battery disconnect is not required for this rear brake/rotor job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm socket
• 14mm socket
• 17mm socket
• Ratchet
• Breaker bar
• Torque wrench (10-200 Nm range)
• C-clamp (6 inch minimum)
• Caliper hanger hook
• Flathead screwdriver
• Wire brush
• Rubber mallet
• M8 x 1.25 bolts (pair)
• Brake cleaner spray
• High-temp silicone brake grease
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear brake pad set - Qty: 1
• Rear brake rotors - Replace in pairs - Qty: 2
• Rear brake hardware kit - Qty: 1
• Brake parts cleaner - Qty: 1
• High-temp silicone brake grease - Qty: 1

---

📋 Before You Begin

• 🧱 Park on level ground, shift to Park, and chock both front wheels.
• 🧯 Release the parking brake fully (foot pedal or hand lever, depending on your Camry).
• 🧼 Crack the rear lug nuts loose slightly using a 21mm socket and breaker bar before lifting.
• 📦 Open the brake fluid reservoir cap (under the hood) and set it loosely on top; this helps the caliper piston compress more easily.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and support the rear

• Use a floor jack (rated 2-ton minimum) to lift the rear at the rear center jacking point.
• Place jack stands (rated 2-ton minimum) under the rear side pinch welds or approved rear support points, then lower onto the stands.
• Remove both rear wheels using a 21mm socket.

Step 2: Remove the rear caliper

• Turn the steering wheel is not needed; you’re working at the rear.
• Remove the lower and upper caliper slide pin bolts using a 14mm socket and ratchet.
• Lift the caliper off the bracket and hang it from the suspension using a caliper hanger hook.
• Never hang the caliper by the hose.
• Definition: The “caliper” is the clamp that squeezes the pads onto the rotor.

Step 3: Remove old pads and the caliper bracket

• Slide the old brake pads out of the bracket by hand; use a flathead screwdriver gently if they’re stuck.
• Remove the caliper bracket bolts using a 17mm socket and breaker bar.
• Remove the bracket and set it aside.
• Definition: The “caliper bracket” is the metal frame the pads sit in.
• Torque to 79 Nm (58 ft-lbs) (when reinstalling bracket bolts).

Step 4: Remove the rotor (and deal with the parking brake if it’s stuck)

• Make sure the parking brake is fully released.

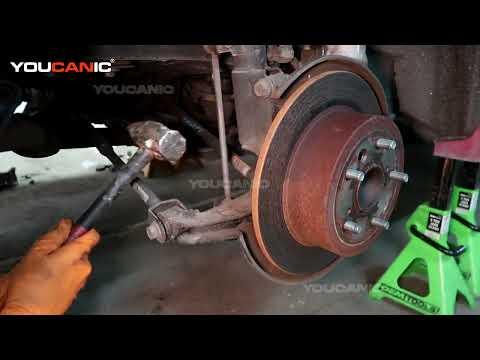

• Pull the rotor straight off the hub. If it’s stuck, tap around the rotor hat with a rubber mallet.
• If it’s still stuck, thread two M8 x 1.25 bolts (pair) into the rotor’s jacking holes evenly, turning with a ratchet to push the rotor off.
• If the rotor won’t come off because the parking brake shoes are tight, use a flathead screwdriver to turn the star wheel adjuster through the access slot (rotate until the rotor loosens), then remove the rotor.

Step 5: Prep the hub and install the new rotor

• Clean rust off the hub face using a wire brush, then spray with brake cleaner spray and wipe with shop towels.
• Clean the new rotor surfaces with brake cleaner spray and shop towels (this removes protective oil).
• Install the new rotor onto the hub.
• To hold the rotor in place while you work, thread on one lug nut by hand (use the wheel’s lug nut briefly, then remove it later).

Step 6: Service the bracket hardware and install new pads

• Remove the old pad clips from the bracket using a flathead screwdriver.
• Clean the bracket pad-contact areas with a wire brush, then spray brake cleaner spray and wipe with shop towels.
• Install the new hardware clips from the rear brake hardware kit.
• Apply a thin film of high-temp silicone brake grease where the pad “ears” touch the clips (do not get grease on pad friction material).
• Install the new pads into the bracket.

Step 7: Reinstall the caliper bracket

• Reinstall the caliper bracket bolts using a 17mm socket and ratchet.
• Torque to 79 Nm (58 ft-lbs) using a torque wrench (10-200 Nm range).

Step 8: Compress the caliper piston

• Before compressing, check the brake fluid reservoir level (it may rise).
• Use a C-clamp (6 inch minimum) to slowly press the caliper piston straight back into the caliper.
• Definition: The “piston” is the round part that pushes the inner pad.
• Go slow to avoid fluid overflow.

Step 9: Reinstall the caliper

• Set the caliper over the new pads and rotor.
• Install the caliper slide pin bolts using a 14mm socket and ratchet.
• Torque to 25 Nm (19 ft-lbs) using a torque wrench (10-200 Nm range).

Step 10: Reinstall wheels and lower the car

• Reinstall the wheels and hand-thread all lug nuts.
• Lower the car using the floor jack (rated 2-ton minimum).
• Tighten lug nuts in a star pattern using a 21mm socket and torque wrench (10-200 Nm range).
• Torque to 103 Nm (76 ft-lbs).

---

✅ After Repair

• 🦶 Pump the brake pedal 10-15 times before driving until it feels firm (this seats the pads against the rotors).
• 🧴 Re-check the brake fluid level and top off only if needed (use the correct fluid listed on the reservoir cap).
• 🛑 With the car stopped, apply and release the parking brake a few times to confirm it holds and releases normally.
• 🚗 Do a careful test drive: start with slow stops, listen for grinding, and confirm the car brakes straight.
• 🔥 Pad bedding (recommended): do 6-8 moderate stops from 40 km/h to 10 km/h, with short cool-down driving between stops.

---

💰 DIY vs Shop Cost

Shop Cost: ₹8,000-₹18,000 (parts + labor)

DIY Cost: ₹4,000-₹12,000 (parts only)

You Save: ₹4,000-₹6,000 by doing it yourself!

Shop labor rates vary but typically run ₹800-₹2,000/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
