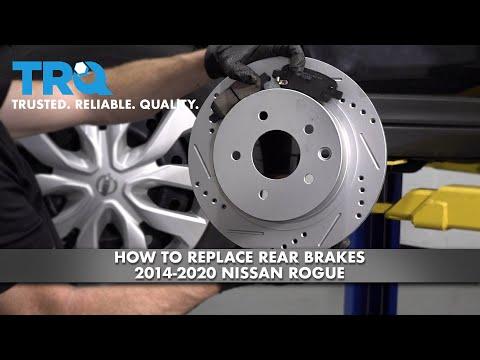

🔧 Rear Brakes and Rotors - Replacement

Your rear brake pads and rotors wear together, so replacing both at the same time gives you a fresh braking surface and better pedal feel. On your Rogue, the rear brake job is a straightforward driveway repair if you work one side at a time and keep everything clean.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• Work on a flat, solid surface only.
• Chock the front wheels before lifting the rear.
• Support the Rogue with jack stands; never rely on a jack alone.
• Do not press the brake pedal with a caliper removed.
• Rear calipers use a threaded parking-brake style piston on many Nissan rear disc setups; compress it by turning, not forcing it straight in.
• Let brakes cool before starting if the vehicle was just driven.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated for vehicle weight)
• Wheel chocks
• 19mm lug wrench or socket
• Ratchet
• 14mm socket
• 17mm socket
• Torque wrench
• C-clamp or rear brake piston tool (specialty)
• Brake caliper hanger or bungee cord
• Flat blade screwdriver
• Wire brush
• Brake cleaner
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear brake pad set - Qty: 1
• Rear brake rotors - Replace in pairs - Qty: 2
• Brake hardware kit - Qty: 1
• Brake grease - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Keep the transmission in Park.
• Loosen the rear lug nuts slightly before lifting.
• If the parking brake is a foot-pedal style, fully release it before removing the rear wheels.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen and lift the rear

• Use the 19mm lug wrench or socket to loosen both rear wheel lug nuts slightly.
• Use the floor jack to raise the rear of the Rogue at the proper lift point.
• Place jack stands under the rear support points and lower the vehicle onto them.
• Remove both rear wheels.

Step 2: Remove the caliper

• Use the 14mm socket to remove the caliper slide pin bolts.
• Lift the caliper off the bracket and support it with a brake caliper hanger or bungee cord.
• Do not let the caliper hang by the hose.

Step 3: Remove the caliper bracket

• Use the 17mm socket to remove the caliper bracket bolts.
• Remove the bracket from the knuckle.
• Torque on installation: 108 Nm (80 ft-lbs)

Step 4: Remove the rotor

• Slide the rotor off the hub.
• If it is stuck, use a flat blade screwdriver through the access hole and tap the rotor hat with a soft mallet if needed.
• Use a wire brush to clean rust from the hub face.
• A clean hub helps prevent brake pulsation.

Step 5: Install the new rotor

• Spray the new rotor with brake cleaner and wipe it dry.
• Install the new rotor onto the hub.
• If the rotor has retaining screws, reinstall them if equipped.

Step 6: Replace the pads and hardware

• Remove the old pad clips from the bracket.
• Install the new brake hardware kit.
• Apply a thin layer of brake grease to the pad contact points and slide areas.
• Install the new pads into the bracket.

Step 7: Compress the rear caliper piston

• Use the C-clamp or rear brake piston tool to slowly retract the caliper piston.
• If the piston resists, turn it while pushing inward instead of forcing it straight in.
• Go slow to avoid damaging the seal.

Step 8: Reinstall the caliper and bracket

• Reinstall the caliper bracket and start the bolts by hand.
• Use the 17mm socket to tighten the bracket bolts.
• Torque to 108 Nm (80 ft-lbs)
• Set the caliper over the new pads and install the slide pin bolts using the 14mm socket.
• Torque to 34 Nm (25 ft-lbs)

Step 9: Reinstall the wheels

• Put the rear wheels back on and hand-start the lug nuts.
• Lower the Rogue with the floor jack.
• Use the torque wrench to tighten the lug nuts in a star pattern.
• Torque to 108 Nm (80 ft-lbs)

Step 10: Seat the pads

• Press the brake pedal slowly several times until it feels firm.
• Check brake fluid level in the reservoir and top off if needed.
• Test the brake pedal before moving the vehicle.

---

✅ After Repair

• Test drive at low speed first.
• Listen for rubbing or clicking.
• Make a few gentle stops to bed in the new pads.
• Recheck lug nut torque after 25-50 miles.
• If the brake pedal feels spongy or sinks, stop and inspect the install.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$800 (parts + labor)

DIY Cost: $160-$320 (parts only)

You Save: $290-$480 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
