🔧 Tahoe - Cabin Air Filter Check/Replacement

On your Tahoe, many were built without a factory cabin air filter. The filter location is behind the glove box, but it may be empty unless a retrofit door/filter was installed.

Difficulty Level: Beginner | Estimated Time: 0.3-1.0 hours

---

⚠️ Safety & Precautions

• 🛑 Turn the ignition OFF and remove the key before working under the dash.
• Wear eye protection—dust and debris can fall when the cover is opened.
• If you’ll be cutting the HVAC cover for a retrofit, use controlled, shallow cuts.
• Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Flashlight
• Trim removal tool
• 7mm socket
• 1/4" ratchet
• Small flat-blade screwdriver
• Utility knife
• Shop vacuum
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1
• Cabin air filter access door kit - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Move the passenger seat back to give yourself space.
• Have a flashlight ready—everything is tucked up under the dash.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Empty and lower the glove box

• Open the glove box and remove all contents.
• Push in on both glove box sides with your hands to release the “stops” (little plastic limiters) and let it swing down.
• Go slow—plastic gets brittle with age.

Step 2: Remove the lower hush panel (if it blocks access)

• Look under the passenger side dash for a lower trim panel.
• Use a 7mm socket and 1/4" ratchet to remove the screws.
• Use a trim removal tool to gently pop any clips loose, then set the panel aside.

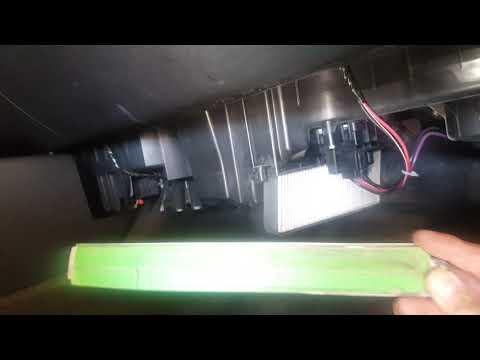

Step 3: Find the cabin filter area behind the glove box

• Use a flashlight to look at the HVAC case (the big black plastic housing) behind the glove box opening.
• You’re looking for a rectangular outline/cover area where a filter door would be.

Step 4: Determine which situation you have (factory door vs no filter)

• If you see an access door with tabs or small screws, you likely already have a filter setup.
• If you see a solid plastic block-off panel with no opening, your Tahoe likely did not come with a cabin filter and would require a retrofit door kit to add one.

Step 5A: If an access door is present, remove it and replace the filter

• Release the door tabs by hand, or use a small flat-blade screwdriver to gently lift the locking tab(s).
• Remove the old filter straight out.
• Use a shop vacuum to clean loose leaves/dust from the filter slot.
• Install the new filter with the airflow arrow pointing in the same direction as the old one (usually toward the blower motor).
• Reinstall the door until it clicks/locks. Tighten any small screws using a 7mm socket “snug” (do not over-tighten).

Step 5B: If no access door/opening exists, install a retrofit door (optional)

• Confirm you have the correct cabin air filter access door kit before cutting anything.
• Use a utility knife to cut along the molded outline on the HVAC case where the door is designed to go (make shallow passes).
• Wear safety glasses and nitrile gloves while cutting.
• Remove the cut-out panel and vacuum debris using a shop vacuum.
• Slide in the cabin air filter in the correct direction, then install the new access door from the kit.

Step 6: Reassemble

• If removed, reinstall the lower hush panel using a 7mm socket and 1/4" ratchet (snug).
• Lift the glove box back up and push in the sides to re-engage the stops.

---

✅ After Repair

• Start the engine and run the HVAC on high fan for 30 seconds.
• Cycle between fresh air and recirculation and listen for abnormal rattles.
• If airflow is weak or noisy, recheck that the filter is fully seated and the door is latched.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$250 (inspection/retrofit + parts + labor)

DIY Cost: $20-$80 (parts only, depending on retrofit)

You Save: $40-$170 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
