🔧 Edge - Headlight Bulb Replacement

You’ll replace the bulbs for both headlamps (typically the low beams and high beams). This restores safe nighttime visibility and prevents one new/one old bulb color mismatch.

Assumption: Your Edge has halogen bulbs (common on SEL): Low beam = H11, High beam = 9005. If yours has factory HID/LED, the bulb type and steps differ.

Difficulty Level: Beginner | Estimated Time: 0.8-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the headlights OFF and remove the key before starting.
• ⚠️ Let the bulbs cool for at least 10 minutes; they get extremely hot.
• ⚠️ Wear gloves and do not touch the new bulb glass; skin oil can shorten bulb life.
• ⚠️ Do not force the bulb socket—plastic tabs can break when cold.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 1/4" ratchet
• 6" socket extension
• Trim clip removal tool
• Flathead screwdriver
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Low beam headlight bulb (H11) - Qty: 2
• High beam headlight bulb (9005) - Qty: 2
• Dielectric grease (optional) - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• 🔦 Open the hood and set a flashlight so you can see behind each headlamp.
• 🧤 Put on nitrile gloves before handling new bulbs.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

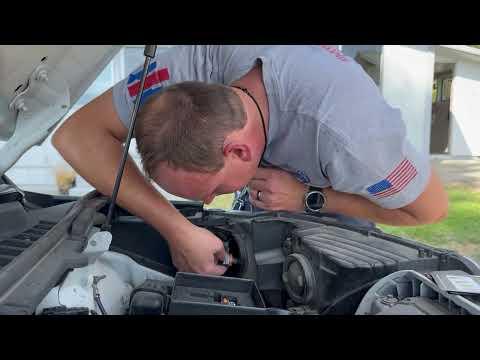

Step 1: Make room behind the passenger-side headlamp

• Use a flashlight to locate the back of the passenger headlamp housing.
• If the air intake/snorkel blocks access, remove the fasteners with an 8mm socket, 1/4" ratchet, and 6" extension.
• Pop any plastic clips using a trim clip removal tool (this tool lifts push-clips without breaking them).
• Reinstall fasteners later and Torque to 4 Nm (35 in-lbs).

Step 2: Remove the low beam bulb (passenger side)

• Find the low beam socket at the back of the headlamp (usually the larger, more inboard socket).
• Twist the bulb/socket counterclockwise by hand to unlock it.
• Press the electrical connector tab and pull the connector off. If it’s stubborn, gently help it with a flathead screwdriver.

Step 3: Install the new low beam bulb (passenger side)

• With nitrile gloves on, plug the connector onto the new H11 bulb until it clicks.
• If desired, use a tiny dab of dielectric grease.
• Insert the bulb into the housing, then twist clockwise by hand until it fully locks (snug—do not over-tighten).

Step 4: Remove and install the high beam bulb (passenger side)

• Locate the high beam socket (often the more outboard socket).
• Twist counterclockwise by hand to remove, then unplug the connector.
• Install the new 9005 bulb, plug it in, and twist clockwise to lock.

Step 5: Repeat the bulb replacement on the driver side

• Move to the driver-side headlamp and repeat the same steps for H11 (low) and 9005 (high).
• If any covers/ducting are in the way, remove fasteners with an 8mm socket and reinstall them after, Torque to 4 Nm (35 in-lbs).

Step 6: Reinstall intake/trim pieces you removed

• Reinstall any air snorkel/ducting and push-clips using the trim clip removal tool (to line them up) and your hands to push them in.
• Tighten any 8mm fasteners with an 8mm socket and 1/4" ratchet, Torque to 4 Nm (35 in-lbs).

---

✅ After Repair

• ✅ Start the Edge and turn on low beams, then high beams, and confirm both sides work.
• ✅ If a bulb doesn’t light, turn lights off and re-check the connector is fully clicked in.
• ✅ At night, verify the beam pattern looks even; if it’s wildly off, the bulb may not be seated/locked.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$250 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $80-$130 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
