🔧 Suburban - Headlight Bulb Replacement

On your Suburban, the headlight bulbs are replaced from the rear of the headlamp housing, but access is tight—most DIYers find it easiest to remove the grille and then pull the headlamp assembly forward.

Because the Premier trim commonly uses HID (xenon) low beams and a separate halogen high beam, I’m giving both paths below so you replace the correct “both” bulbs.

Difficulty Level: Intermediate | Estimated Time: 1.0–2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ If equipped with HID (xenon) bulbs, the igniter/ballast can produce high voltage—turn lights OFF and disconnect the battery before touching the HID bulb/connector.
• ⚠️ Let the headlamps cool before starting; bulbs and housings get hot.
• ⚠️ Do not touch glass bulbs with bare fingers; skin oil can shorten bulb life. Use clean gloves.
• ⚠️ Support the grille and headlamp so you don’t scratch paint or crack tabs.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Trim clip removal tool
• Small flat-blade screwdriver
• 10mm socket
• 1/4" ratchet
• 6" socket extension (1/4" drive)
• Flashlight
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Low-beam HID (xenon) bulb - Qty: 2
• High-beam halogen bulb - Qty: 2
• Headlamp housing retaining clips (if any break) - Qty: 1

---

📋 Before You Begin

• Park your Suburban on level ground, shift to Park, and set the parking brake.
• Turn the headlight switch OFF and remove the key from the vehicle.
• Open the hood and install a fender cover to protect paint.
• If you are replacing HID low beams, disconnect the negative battery cable using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which bulbs you’re replacing

• Look at the low-beam area: if it’s a projector lens and the bulb/connector area has HID warning markings, follow the HID Low Beam steps below.
• High beams are typically a separate halogen bulb; follow the Halogen High Beam steps below.
• If unsure, send a photo of the bulb caps.

Step 2: Remove the upper grille fasteners

• Use a trim clip removal tool to lift and remove the plastic push-clips across the top of the grille/radiator support area.
• If any clips are stubborn, carefully help them with a small flat-blade screwdriver.

Step 3: Release the grille

• Use your hands to gently pull the grille forward to release the retaining tabs.
• Work side-to-side slowly. Use a flashlight to watch the tabs so they don’t snap.

Step 4: Remove the headlamp assembly (one side at a time)

• Use a 10mm socket, 1/4" ratchet, and 6" extension to remove the headlamp retaining bolts.
• Pull the headlamp assembly straight forward to release the alignment pins.
• Do not yank the wiring. Support the lamp while you access the rear covers/connectors.

Step 5A: Replace the HID Low Beam bulbs (if equipped)

• Verify the negative battery cable is disconnected (use a 10mm socket if needed).

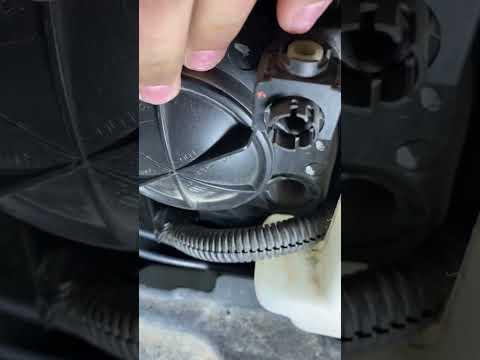

• Remove the low-beam rear cover/cap by hand (turn and pull as required).
• Disconnect the HID bulb electrical connector by pressing the lock tab and pulling straight back.
• Unlock the bulb retainer (varies by housing). Rotate the bulb/retainer to release, then pull the bulb straight out.
• Install the new HID bulb in the same orientation. Do not touch the glass; wear nitrile gloves.
• Reconnect the electrical connector firmly, then reinstall the rear cover/cap.

Step 5B: Replace the Halogen High Beam bulbs

• Remove the high-beam rear cover/cap by hand (turn and pull as required).
• Disconnect the bulb connector by pressing the lock tab and pulling it off.
• Rotate the bulb counterclockwise to unlock, then pull it out.
• Install the new bulb without touching the glass (use nitrile gloves), rotate to lock, and reconnect the connector.
• Reinstall the rear cover/cap fully seated to keep moisture out.

Step 6: Reinstall the headlamp assembly

• Align the headlamp’s locating pins with their holes and push the assembly straight into place.
• Reinstall the retaining bolts using a 10mm socket, ratchet, and extension and tighten to factory specification.

Step 7: Reinstall the grille

• Line up the tabs and press the grille back in until it clicks into place.
• Reinstall the upper push-clips using your hands and a trim clip removal tool as needed.

Step 8: Restore power (if disconnected)

• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Turn the headlights on and verify: low beams, high beams, and turn signals all work.
• Check that the rear caps are fully sealed (prevents fogging/condensation).
• If you replaced HID bulbs, verify both sides match color; slight color shift can happen for a few minutes.
• If the beam aim looks off after lamp removal, you may need a headlight aiming check.

---

💰 DIY vs Shop Cost

Shop Cost: $200–$600 (parts + labor, depends on HID vs halogen)

DIY Cost: $40–$300 (parts only, depends on HID vs halogen)

You Save: $160–$300+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0–1.5 hours.

---
