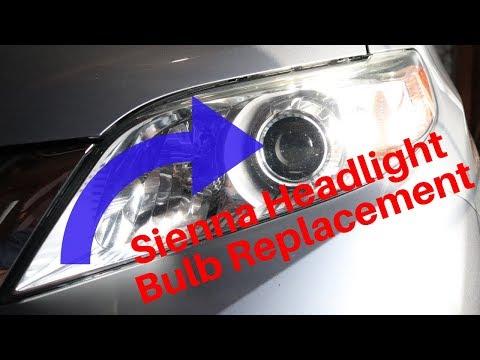

🔧 Sienna - Headlight Bulb Replacement

On your Sienna, the “headlight bulbs” can mean the low beams (regular nighttime driving lights) and/or the high beams (bright/flash-to-pass). Replacing them is usually done from behind the headlight housing and is a good DIY job if you take your time and don’t touch the bulb glass.

Difficulty Level: Beginner | Estimated Time: 0.5–1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn lights OFF and let bulbs cool 10+ minutes (they get very hot).
• ⚠️ Do not touch the new bulb’s glass with bare fingers; skin oils can shorten bulb life.
• ⚠️ If you raise the van, support it with jack stands before working near a wheel well.
• ⚠️ Battery disconnect is not required, but keep the headlight switch OFF while unplugging bulbs.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Nitrile gloves
• Safety glasses
• Flashlight
• Trim clip removal tool
• 10mm socket
• 3/8" ratchet
• 6" extension (3/8" drive)
• Phillips screwdriver #2
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• Breaker bar
• Torque wrench (20–150 ft-lbs)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Low beam headlight bulbs (typically H11) - Replace in pairs - Qty: 2
• High beam headlight bulbs (typically 9005) - Replace in pairs - Qty: 2

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Turn the headlight switch OFF and remove the key/fob from the vehicle.
• Open the hood and set your flashlight so you can see behind the headlight.
• If your hands don’t fit behind the headlight, you may need the wheel-well access method (steps below).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which bulb you’re replacing (low vs high)

• Turn the lights ON briefly and identify the failed bulb: low beam (normal), high beam (brighter).
• Turn lights OFF again and let the housing cool.
• Replace bulbs in pairs for matched color.

Step 2: Access the back of the headlight housing (under-hood method)

• Put on nitrile gloves and safety glasses.
• From the engine bay, locate the rear of the headlight assembly on the side you’re replacing.
• If a small cover/air guide blocks access, remove fasteners with a 10mm socket, 3/8" ratchet, and 6" extension, and/or release clips with a trim clip removal tool.

Step 3: Remove the old bulb

• Unplug the bulb connector by pressing the tab and pulling straight back (use your fingers; avoid yanking wires).
• Rotate the bulb base counterclockwise about a quarter-turn to unlock it.
• Pull the bulb straight out.

Step 4: Install the new bulb

• Hold the new bulb by the base only (not the glass).
• Insert the bulb into the housing, aligning the tabs, then rotate clockwise to lock.
• Plug the connector back in until it clicks.
• If you accidentally touched the glass, wipe it with a clean, dry lint-free cloth (or re-clean with proper bulb-safe cleaner).

Step 5: Repeat for the other side

• Repeat Steps 2–4 on the opposite headlight so both sides match.

Step 6: If you can’t reach (wheel-well access method)

• Chock the rear wheels with wheel chocks.
• Loosen the front wheel lug nuts slightly using a 21mm socket and breaker bar.
• Lift the front corner with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the wheel using the 21mm socket and 3/8" ratchet.
• Peel back the front fender liner enough to reach the bulb:
  • Remove plastic clips with a trim clip removal tool.
  • Remove screws with a Phillips screwdriver #2.
• Replace the bulb using Steps 3–4.
• Reinstall the fender liner clips/screws using the trim clip removal tool and Phillips screwdriver #2.
• Reinstall the wheel and snug lug nuts with a 21mm socket.
• Lower the van and tighten lug nuts in a star pattern using a torque wrench (20–150 ft-lbs): Torque to 140 Nm (103 ft-lbs).

---

✅ After Repair

• Turn headlights ON and verify left/right low beams (and high beams if replaced) work.
• Check that the beam pattern looks even on a wall/garage door from a short distance.
• If one side still doesn’t work, re-check the connector seating and bulb lock-in.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$280 (parts + labor)

DIY Cost: $30-$120 (parts only, depending on bulb type/brand)

You Save: $90-$160 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
