🔧 CX-5 - Headlight Bulb Replacement

On your CX-5, the “headlight bulbs” can mean the low beams and/or the high beams. Replacing them is mostly a twist-lock bulb job, but the low beams are usually easiest to access through the wheel-well liner.

Difficulty Level: Beginner | Estimated Time: 0.5–1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the headlight switch OFF and remove the key before starting.
• ⚠️ Let bulbs cool 10+ minutes; they get extremely hot.
• ⚠️ Do not touch halogen bulb glass with bare fingers (skin oil shortens bulb life).
• ⚠️ Support the vehicle securely if you lift it; never rely on a jack alone.
• ⚠️ Battery disconnect is not required, but keep tools away from the battery terminals.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Nitrile gloves
• Safety glasses
• Flashlight
• Trim clip removal tool
• Flathead screwdriver (small)
• 10mm socket
• 3/8" ratchet
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Low beam headlight bulb (H11) - Replace in pairs - Qty: 2
• High beam headlight bulb (9005) - Replace in pairs - Qty: 2
• Fender liner push clips - Qty: 4-10 (as needed)

---

📋 Before You Begin

• Park on level ground, shift to neutral, set the parking brake, and place wheel chocks behind the rear wheels.
• Turn the steering wheel full-lock to the side you’re working on (this makes liner access easier).
• Put on nitrile gloves and safety glasses.
• Tip: Replace bulbs in pairs for matching color.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Decide which bulbs you’re replacing (low beam vs high beam)

• Use a flashlight and confirm what’s out: low beams work in normal “headlights on,” high beams work only with the high-beam stalk.
• Plan to replace both left and right of that bulb type.

Step 2: Access the low beam bulb (wheel-well liner method)

• Turn the wheel away from the side you’re working on (example: working on left bulb, turn wheel to the right).
• If access is tight, lift that front corner using a floor jack (rated 3-ton minimum) and support it with jack stands (rated 3-ton minimum).
• Remove the fender liner clips/screws near the headlight area using a trim clip removal tool and a flathead screwdriver (small).
• If a 10mm fastener is present, remove it with a 10mm socket and 3/8" ratchet.
• Pull the liner back by hand to create a window to the back of the headlight.
• Trim clip tool = a forked tool that pops plastic clips.

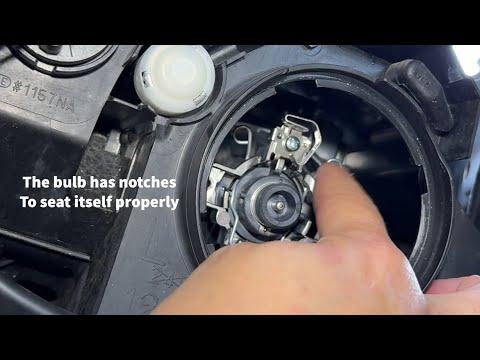

Step 3: Remove and replace the low beam bulb (H11)

• Reach the low beam bulb socket at the rear of the headlight.
• Unplug the electrical connector by pressing the lock tab (use a flathead screwdriver (small) gently only if needed).
• Rotate the bulb counterclockwise about 1/4 turn by hand and pull it straight out.
• Install the new Low beam headlight bulb (H11) without touching the glass (keep nitrile gloves on).
• Lock it in by rotating clockwise until it stops, then reconnect the electrical connector until it clicks.

Step 4: Reassemble the fender liner

• Reposition the liner and reinstall clips using the trim clip removal tool (to hold/align) and hand pressure to seat them.
• If you removed a bolt, reinstall it with a 10mm socket and 3/8" ratchet (snug, do not over-tighten).
• If lifted, lower the vehicle safely using the floor jack (rated 3-ton minimum).

Step 5: Access the high beam bulb (engine bay method)

• Open the hood and use a flashlight to find the high beam bulb at the rear of the headlight assembly.
• Clear any nearby wiring from your hand path (no tools needed).

Step 6: Remove and replace the high beam bulb (9005)

• Unplug the electrical connector by pressing the lock tab (use a flathead screwdriver (small) gently only if needed).
• Rotate the bulb counterclockwise about 1/4 turn and pull it out.
• Install the new High beam headlight bulb (9005) with nitrile gloves on, then rotate clockwise to lock.
• Reconnect the connector until it clicks.

Step 7: Repeat on the other side

• Use the same method on the opposite headlight so both sides match in brightness and color.

---

✅ After Repair

• Turn the headlights on and confirm both low beams work.
• Switch on high beams and confirm both high beams work.
• Walk around and verify no fender liner rubbing or loose clips.
• If a bulb doesn’t light: recheck the connector click and bulb lock position.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$260 (parts + labor)

DIY Cost: $30-$120 (parts only)

You Save: $90-$140 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
