1500 Classic - Ignition Coil Replacement 🔧

Got it—you want to replace the ignition coils on your 3.6L V6 in your 1500 Classic. I’ll walk you through it step by step.

Safety First ⚠️

• 🧯 Work on a cool engine: Let the engine cool at least 30–45 minutes to avoid burns.
• 🔋 Disconnect the battery: Loosen the negative (-) terminal and move the cable aside so it can’t spring back.
• 🧤 Wear gloves and eye protection: There are sharp edges and dust under the hood.

Parts You’ll Need 📦

• 🧩 Ignition coils (6x): One per cylinder. Replace all six as a set for best reliability.
• 🧩 Optional – Spark plugs (6x): If they’re old, this is the perfect time to do them.

Tools You’ll Need 🛠️

• 🔧 1/4" and 3/8" drive ratchets: Basic hand wrenches for sockets.
• 🔧 Socket set:
  • 8 mm socket – battery terminal and some covers.
  • 10 mm socket – ignition coil hold-down bolts.
• 🔧 3/8" drive torque wrench: A wrench that “clicks” at a set tightness so you don’t overtighten.
• 🪛 Small flat-blade screwdriver or pick tool: To gently lift electrical connector locks.
• 🧰 Extension bars: 3"–6" to reach rear coils.
• 💡 Work light: To see the rear bank near the firewall.
• 🧴 Dielectric grease (optional): Silicone grease for electrical boots to prevent moisture.

Torque Specs 📏

• 🔩 Ignition coil hold-down bolt: ~8 N·m (71 in-lb) (snug plus a small turn if you don’t have a torque wrench—do NOT crank hard).
• 🔩 Battery terminal clamp: ~5–6 N·m (just tight enough that it doesn’t move).

Layout of Your 3.6L V6 🧠

The 3.6L Pentastar has:

• 🧱 Two cylinder banks: One on the driver side, one on the passenger side.
• 🔌 One coil per cylinder: Coils sit directly on top of each spark plug (coil-on-plug).

Step 1 – Remove Engine Cover 🧩

• 🛠️ The plastic engine cover is usually held by rubber grommets (push-on style).
  • Grab the cover at the sides and pull straight up firmly but gently.
  • Lift it off and set it aside.

Step 2 – Locate the Ignition Coils 👀

• 🔍 You’ll see six black coils on top of the engine, three on each side, each with:
  • An electrical connector.
  • A single small bolt (10 mm) holding it down.

Step 3 – Unplug Coil Connectors 🔌

• 🧠 Each connector has a locking tab:
  • Press the tab down with your thumb or gently lift the safety clip with a small screwdriver (depends on style).
  • While holding the tab, pull the connector straight off the coil. Do not yank on the wires.
• 📝 Do one coil at a time so you don’t mix anything up.

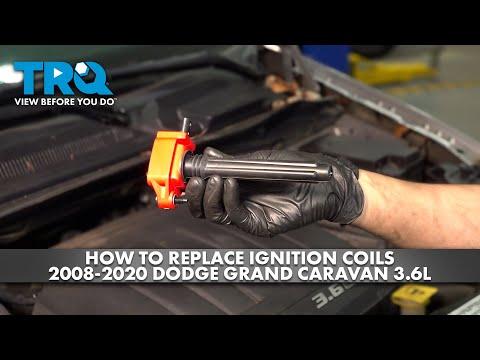

Step 4 – Remove the Ignition Coils 🧰

• 🔧 Use a 10 mm socket and ratchet to remove the coil hold-down bolt.
• 🤏 Wiggle the coil gently and pull it straight up. The rubber boot may stick to the plug; slow, steady pull works best.
• 👀 Look down the spark plug tube:
  • If you see oil or coolant, that’s a separate issue (valve cover or other leak).

Step 5 – Install the New Coils 🆕

• 🧴 If you have dielectric grease:
  • Put a very small smear inside the rubber boot at the tip. This helps prevent moisture and makes future removal easier.
• ⬇️ Insert the new coil:
  • Line up the boot with the spark plug hole.
  • Push straight down until it seats fully on the plug.
• 🔩 Install the 10 mm bolt by hand first to avoid cross-threading.
• 🔧 Tighten with a ratchet, then torque to about 8 N·m (71 in-lb) if you have a torque wrench.

Step 6 – Reconnect the Electrical Connectors 🔄

• 🔌 Push the connector onto the coil until you hear or feel a click.
• 👂 Gently tug to confirm it’s locked in place.
• ✅ Repeat Steps 3–6 for all six coils, one at a time.

Step 7 – Reinstall Engine Cover & Reconnect Battery 🔋

• 🧩 Line up the engine cover with the mounting posts and push down until it snaps into the rubber grommets.
• 🔋 Reconnect the negative battery cable:
  • Slide it onto the terminal and tighten the 8 mm nut until the clamp doesn’t move.

Step 8 – Start-Up Check ✅

• 🚗 Start the engine:
  • It should idle smoothly with no misfire or shaking.
  • Check that the Check Engine Light is off (if it was on for coils, it may clear after a few drive cycles, or you can clear it with a scan tool).
• 👂 Listen for:
  • No ticking, arcing, or snapping sounds from the coil area.

Extra Tip – Spark Plugs While You’re There 💡

• 🧠 If your mileage is high, it’s smart to replace the spark plugs at the same time since the coils are already off. That needs a spark plug socket (a special socket with a rubber insert to hold the plug) and a torque spec around 18–25 N·m depending on plug type.

Infotainment / Settings – Nothing Special Here 📱

• ✅ No special menu or reset is required in the radio or cluster for coil replacement on your 1500 Classic.

What’s Next 🚀

If you tell me your current mileage and whether you’ve ever changed the spark plugs, I can advise if you should do them now and give you a simple plug-replacement guide too.
