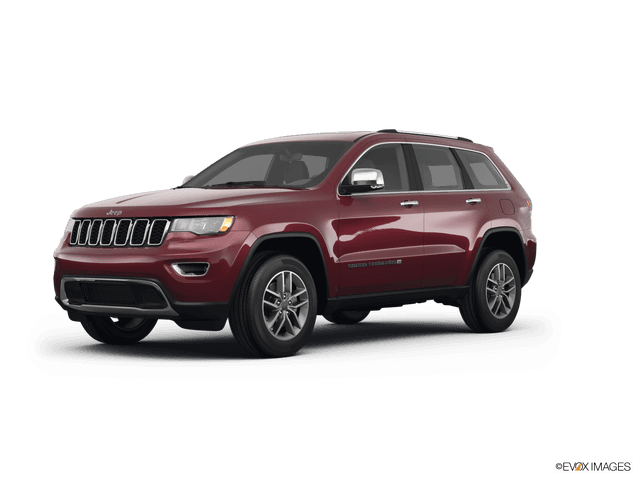

🔧 Grand Cherokee WK - Ignition Coil Replacement

You’ll be replacing the ignition coils that sit directly on top of the spark plugs on your Grand Cherokee. This is a straightforward job with basic tools and helps fix misfires, rough running, or coil codes.

Difficulty Level: Beginner | Estimated Time: 1–1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Always work with the engine completely cool to avoid burns.
• ⚠️ Disconnect the negative battery terminal so nothing electrical can short while you unplug coils.
• ⚠️ Keep metal tools away from the battery positive terminal to avoid sparks.
• ⚠️ Do not pull on the wires; only handle plastic connectors and coil bodies.
• ⚠️ If you feel unsure at any point, stop and ask for help or clarification.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ 10mm socket
• 🛠️ 8mm socket
• 🛠️ 3/8" drive ratchet
• 🛠️ 3/8" drive torque wrench (5–60 Nm range)
• 🛠️ 3" socket extension
• 🛠️ Flathead screwdriver (small)
• 🛠️ Plastic trim tool
• 🛠️ Mechanic’s gloves
• 🛠️ Safety glasses
• 🛠️ Shop rag or clean cloth

A torque wrench lets you tighten bolts to exact spec.

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Ignition coil pack (3.6L individual coil-on-plug type) - Qty: 6 (replace all six recommended)
• 🔩 Dielectric grease - Qty: 1 small tube
• 🔩 Battery terminal protector spray - Qty: 1 (optional)
• 🔩 Engine cover mounting grommets - Qty: 4 (optional, if old ones break)

---

📋 Before You Begin

• Park the Grand Cherokee on level ground, shift to P, and set the parking brake.
• Turn the ignition off and remove the key/fob from the vehicle.
• Open the hood and use the hood prop rod if your hood doesn’t hold itself up.
• Let the engine cool completely if it has been running.
• Disconnect the negative battery terminal:
  • Use the 10mm socket and ratchet to loosen the clamp on the negative (-) terminal.
  • Lift the cable off and tuck it aside so it cannot spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Stand in front of the vehicle and look at the top of the engine; you’ll see a plastic engine cover.
• Use your hands or a plastic trim tool to gently pry up at the corners of the cover.
• It is held by rubber grommets; pull straight up until it pops free, then lift it off and set aside.
• Pull evenly so you don’t crack the cover.

Step 2: Identify the ignition coils

• With the cover off, you’ll see three coils on each side of the V6 engine (total six coils).
• Each coil is a black plastic unit with an electrical connector on top, bolted to the valve cover area, and going down into the engine.
• Plan to work on one coil at a time so you don’t mix up connectors.

Step 3: Unplug the electrical connector from the first coil

• Pick one coil to start with, for example front-left (closest to you on driver’s side).
• Look at the connector; most have a small red or grey lock tab.
• Use the small flathead screwdriver to gently slide the lock tab out or up (do not force it).
• Press down on the release tab with your thumb and pull the connector straight off the coil by hand.
• Always pull on the plastic plug, not the wires.

Step 4: Remove the coil retaining bolt

• Locate the small bolt holding the coil to the engine (on the coil’s base).
• Use the 10mm socket, 3" extension, and ratchet to loosen and remove this bolt.
• Set the bolt aside in a safe place so it doesn’t fall into the engine bay.

Step 5: Remove the ignition coil

• Grab the top of the coil and gently twist it left and right to break it free from the spark plug.
• Pull the coil straight up and out of the spark plug well.
• If it feels stuck, twist a little more but do not pry with metal tools to avoid damage.
• Inspect the coil boot (the rubber part) for oil, cracks, or burn marks; note anything unusual.

Step 6: Prepare the new ignition coil

• Take your new coil out of the box.
• Put a very thin smear of dielectric grease inside the rubber boot end that will slide over the spark plug.
• Use only a small amount; don’t fill the boot.

Step 7: Install the new ignition coil

• Line up the new coil with the spark plug well and gently push it down until you feel it seat on the spark plug.
• Make sure the bolt hole in the coil lines up with the hole in the engine.
• Install the original bolt by hand a few turns to avoid cross-threading.
• Use the 10mm socket and ratchet to snug the bolt down lightly.
• Then use the 3/8" torque wrench with the 10mm socket to tighten the bolt to 9 Nm (80 in-lbs).
• Do not overtighten; these bolts are small.

Step 8: Reconnect the electrical connector

• Push the electrical connector straight onto the new coil until it clicks into place.
• Slide or press the lock tab back into its locked position.
• Gently tug the connector to ensure it’s fully seated and locked.

Step 9: Repeat for all remaining coils

• Move to the next coil and repeat:
  • Unplug connector.
  • Remove 10mm bolt with socket, extension, and ratchet.
  • Twist and pull out old coil.
  • Apply a small amount of dielectric grease to the new coil boot.
  • Install coil and torque bolt to 9 Nm (80 in-lbs) with the torque wrench.
  • Reconnect and lock the connector.
• Work one coil at a time until all six are replaced.

Step 10: Reinstall the engine cover

• Line up the engine cover over the mounting posts on the engine.
• Press down firmly at each corner until you feel the grommets snap onto the posts.
• Make sure the cover is sitting flat and doesn’t rattle.

Step 11: Reconnect the battery

• Place the negative battery cable back onto the negative (-) terminal.
• Use the 10mm socket and ratchet to tighten the clamp snugly; do not overtighten.
• If you have battery terminal protector spray, apply a light coat now.

---

✅ After Repair

• Start the engine and listen at idle. It should run smoothly with no shaking or misfire.
• Watch the dashboard for any warning lights (especially the check engine light).
• If you had a misfire code before, clear it with a scan tool or have a shop clear it, then confirm it doesn’t return.
• Take a short test drive:
  • Gently accelerate and feel for smooth power.
  • Do one or two stronger accelerations once warm to confirm no misfires.
• After the drive, open the hood and quickly re-check that the engine cover is secure and there are no loose connectors.

---

💰 DIY vs Shop Cost

Shop Cost: $450–$700 (parts + labor)

DIY Cost: $180–$320 (parts only, all 6 coils + grease)

You Save: $270–$380 by doing it yourself!

Shop labor rates typically run $100–$150/hour. This repair takes a shop about 1.0–1.5 hours.

---
