🔧 Altima - Ignition Coil Replacement

Replacing the ignition coils on your Altima is a straightforward job on the 2.5L engine because the coils sit on top of the spark plugs. A bad coil can cause misfires, rough idle, poor acceleration, and a flashing check engine light.

Difficulty Level: Beginner | Estimated Time: 30-60 minutes

---

⚠️ Safety & Precautions

• ⚠️ Work only with the engine cool to avoid burns from hot engine parts.
• ⚠️ Disconnect the negative battery cable before unplugging ignition coils to reduce the chance of electrical shorts.
• ⚠️ Do not pull on wiring. Always press the connector tab and pull the connector body.
• ⚠️ Keep dirt and debris out of the spark plug wells.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8-inch ratchet
• 3-inch extension
• Torque wrench rated in inch-pounds
• Trim clip removal tool
• Flathead screwdriver
• Compressed air nozzle
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1-4
• Dielectric grease - Qty: 1 small tube

Tip: Replace only the failed coil unless all coils are high-mileage.

---

📋 Before You Begin

• Park your Altima on level ground and set the parking brake.
• Turn the ignition off and remove the key/fob from the vehicle area.
• Open the hood and let the engine cool completely.
• Use a 10mm socket to disconnect the negative battery cable, then move the cable aside so it cannot spring back onto the terminal.
• Dielectric grease is a non-conductive silicone grease used to keep moisture out of electrical boots and connectors.
• A torque wrench is a tool that tightens bolts to a specific tightness so small bolts are not damaged.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Engine Cover

• Use your hands to lift the plastic engine cover upward from its rubber mounting grommets.
• If the cover feels stuck, gently work one corner at a time.
• Set the cover aside in a safe place.
• Pull straight up, not sideways.

Step 2: Locate the Ignition Coils

• Look at the top of the engine. The four ignition coils are lined up across the valve cover.
• Each coil has an electrical connector and one small hold-down bolt.
• If dirt is around the coils, use a compressed air nozzle to blow debris away before removal.

Step 3: Disconnect the Coil Electrical Connector

• Use your thumb to press the release tab on the ignition coil connector.
• If the connector is tight, use a flathead screwdriver very gently to help depress the tab.
• Pull the connector straight back by the plastic body, not by the wires.
• Old connectors can be brittle.

Step 4: Remove the Ignition Coil Bolt

• Use a 10mm socket, 3-inch extension, and 3/8-inch ratchet to remove the ignition coil hold-down bolt.
• Place the bolt somewhere safe so it does not fall into the engine bay.

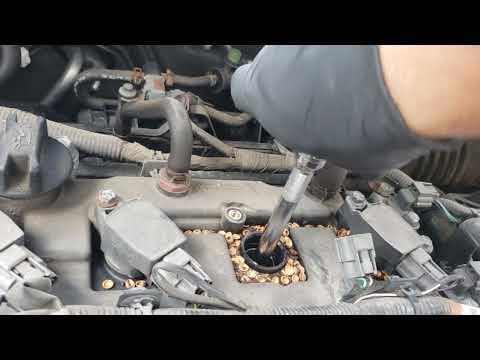

Step 5: Remove the Old Ignition Coil

• Grip the top of the coil by hand.
• Twist the coil slightly left and right to loosen the rubber boot from the spark plug.
• Pull the coil straight upward and out of the spark plug well.
• Check the old coil boot for oil, cracking, burning, or moisture.
• If oil is inside the spark plug well, the valve cover tube seal may also need repair.

Step 6: Prepare the New Ignition Coil

• Apply a very small amount of dielectric grease inside the end of the new coil boot.
• Do not fill the boot with grease. A thin film is enough.
• Compare the new coil to the old coil to make sure the shape and connector match.

Step 7: Install the New Ignition Coil

• Push the new ignition coil straight down into the spark plug well by hand.
• You should feel the boot seat onto the spark plug.
• Align the coil mounting hole with the bolt hole on the valve cover.

Step 8: Tighten the Ignition Coil Bolt

• Start the ignition coil bolt by hand to avoid cross-threading.
• Use a 10mm socket, 3-inch extension, and torque wrench rated in inch-pounds to tighten the bolt.
• Torque to 6.9 Nm (61 in-lbs)
• Do not overtighten. The valve cover is not designed for heavy force.

Step 9: Reconnect the Electrical Connector

• Push the coil connector straight onto the new ignition coil until it clicks.
• Lightly tug the connector body by hand to confirm it is locked in place.

Step 10: Repeat for Additional Coils

• If replacing more than one ignition coil, repeat Steps 3 through 9 for each coil.
• Work on one coil at a time so connectors do not get mixed up.

Step 11: Reinstall the Engine Cover

• Line up the plastic engine cover with the rubber grommets.
• Press downward by hand until the cover seats fully.

Step 12: Reconnect the Battery

• Use a 10mm socket and 3/8-inch ratchet to reconnect the negative battery cable.
• Tighten the terminal snugly so it does not move by hand.
• Torque to 5.4 Nm (48 in-lbs)

---

✅ After Repair

• Start your Altima and let it idle for 1-2 minutes.
• Listen for smooth idle and confirm the engine is not shaking.
• If the check engine light was on, the code may need to be cleared with a scan tool after the repair.
• If the light flashes or the engine still misfires, shut the engine off and recheck the coil connector and coil seating.
• Take a short test drive and confirm acceleration feels smooth.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$550 per coil or $500-$1,000 for all four, depending on parts and labor

DIY Cost: $45-$120 per coil or $180-$480 for all four, parts only

You Save: $100-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
