🔧 Santa Fe XL - Ignition Coil Replacement

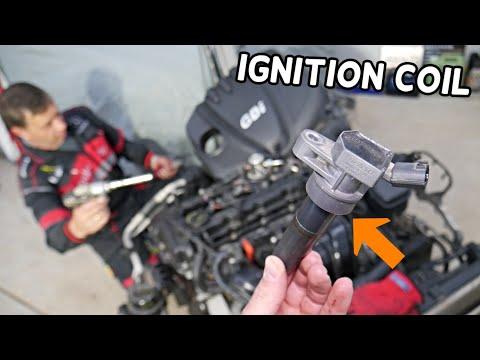

Ignition coils sit on top of each spark plug and create the high voltage needed to fire the plug. On your Santa Fe XL V6, the front-bank coils are easy to access, but the rear-bank coils require removing the upper intake manifold to reach them.

Before I tailor this perfectly: Are you replacing all 6 coils or just one cylinder? And are you replacing the spark plugs at the same time?

Difficulty Level: Intermediate | Estimated Time: 1.5-4.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; the intake and plugs get very hot.
• ⚠️ Disconnect the negative battery cable before unplugging coils.
• ⚠️ Keep dirt out of the spark plug wells; blow debris away before removing coils.
• ⚠️ If removing the upper intake manifold, cover the intake ports immediately with clean shop towels.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 10mm wrench
• Ratchet (3/8")
• Extension set (3/8")
• Universal swivel joint (3/8")
• Torque wrench (inch-pound)
• Torque wrench (foot-pound)
• Flathead screwdriver
• Trim clip tool
• Needle-nose pliers
• Compressed air blow gun
• Shop towels
• Painter’s tape and marker
• Safety glasses
• Nitrile gloves
• 5/8" spark plug socket

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1 (or Qty: 6 if replacing all)
• Upper intake manifold gasket set - Qty: 1 (required if rear-bank coils are replaced)
• Dielectric grease - Qty: 1
• Spark plugs - Qty: 6 (recommended if you’re already there)

---

📋 Before You Begin

• Park on level ground, shift to Park, and open the hood.
• Let the engine cool fully.
• Use painter’s tape and marker to label any hoses/connectors you remove. Labeling prevents mix-ups.
• Disconnect the battery: use a 10mm wrench to remove the negative terminal and tuck it aside.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Grip the cover and pull upward to release it from the rubber grommets.
• If clips are present, use a trim clip tool to release them.

Step 2: Replace front-bank ignition coils (easy access)

• Locate the front bank (closest to the radiator).
• Blow out debris around each coil with compressed air blow gun.
• Unplug the coil connector: depress the lock tab and pull straight back (use needle-nose pliers only if needed). Don’t pull on wires.
• Remove the coil hold-down bolt with a 10mm socket and ratchet.
• Twist the coil slightly and pull it straight up to remove.
• Apply a very small amount of dielectric grease inside the new coil boot.
• Install the new coil, push down firmly until fully seated.
• Reinstall the bolt with a 10mm socket, then Torque to 9.8 Nm (7.2 ft-lbs) using a torque wrench (inch-pound).
• Reconnect the electrical connector until it clicks.

Step 3: Gain access to rear-bank coils (upper intake manifold removal)

• Remove the air intake duct: loosen clamps with a flathead screwdriver and remove any clips with a trim clip tool.
• Label and disconnect any vacuum lines/PCV hoses you need to move using painter’s tape and marker and needle-nose pliers.
• Unplug the throttle body/related connectors that prevent lifting the upper intake (use your hands; use a flathead screwdriver gently only if a lock tab is stuck).
• Remove the upper intake manifold fasteners with a 10mm socket, ratchet, and extensions.
• Lift the upper intake manifold off carefully.
• Immediately cover the intake ports with shop towels. Dropping anything inside is serious.
• Remove and discard old upper intake gaskets; you’ll install new ones later.

Step 4: Replace rear-bank ignition coils

• With the rear bank exposed (closest to the firewall), blow out debris around each coil with compressed air blow gun.
• Unplug each coil connector.
• Remove each coil bolt with a 10mm socket and ratchet.
• Remove coils (twist and pull upward), apply a small amount of dielectric grease to new boots, and reinstall.
• Reinstall bolts and Torque to 9.8 Nm (7.2 ft-lbs) using a torque wrench (inch-pound).
• Reconnect all coil connectors until they click.

Step 5: Reinstall the upper intake manifold

• Remove the shop towels from the intake ports.
• Install the new upper intake manifold gaskets.
• Set the upper intake manifold back into place carefully.
• Start all fasteners by hand to avoid cross-threading, then tighten evenly using a 10mm socket and ratchet.
• Reconnect all hoses and electrical connectors (match your labels).
• Reinstall the air intake duct and tighten clamps with a flathead screwdriver.

Step 6: Reconnect the battery and reinstall the engine cover

• Reconnect the negative battery cable using a 10mm wrench.
• Press the engine cover back onto its mounting grommets.

---

✅ After Repair

• Start your Santa Fe XL and let it idle for 1–2 minutes.
• Listen/feel for misfires (shaking idle) and confirm the check engine light does not flash.
• If you removed the upper intake manifold, check for a hissing sound (vacuum leak) and recheck any hoses/connectors.
• If a check engine light remains on, a scan tool may be needed to read/clear codes and confirm the misfire is resolved.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$900 (parts + labor, varies a lot based on rear-bank access)

DIY Cost: $60-$420 (parts only, depending on 1 coil vs all 6)

You Save: $290-$480+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.5 hours.

---
