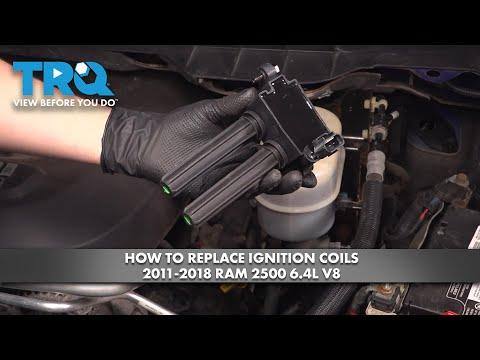

🔧 2500 - Ignition Coil Replacement

Your 2500’s ignition coils sit on top of the spark plugs and create the high voltage needed to fire the engine. Replacing a weak coil can fix misfires, rough idle, and flashing check-engine lights.

Difficulty Level: Beginner | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool fully; coils sit near hot exhaust parts.
• ⚠️ Disconnect the negative battery cable to prevent accidental shorting.
• ⚠️ Don’t pull on wiring; always release the connector lock first.
• ⚠️ If your check-engine light is flashing, avoid driving until repaired (can damage the catalytic converters).

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 1/4" drive extension set (3" and 6")
• Torque wrench (inch-pound)
• Small flat trim tool
• Pick tool
• Shop light
• Nitrile gloves
• Safety glasses
• 10mm wrench

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1 (or Qty: 8 if replacing all)
• Ignition coil boot - Qty: 1 (optional, if torn/oil-soaked)
• Dielectric grease - Qty: 1 (small packet/tube)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool.
• Disconnect the negative battery cable using a 10mm wrench.
• Tip: Do one coil at a time to avoid mixing connectors.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Grip the cover and pull straight upward to release it from the grommets.
• If any wiring clips are attached, release them with a small flat trim tool.

Step 2: Locate the coil you’re replacing

• The coils sit on top of each cylinder head (4 per side), each with an electrical connector and one mounting bolt.
• Use a shop light to clearly see the connector lock and bolt.

Step 3: Unplug the coil electrical connector

• Release the connector lock using a pick tool (a pick is a small pointed tool used to lift locks without breaking them).
• Press the release tab and pull the connector straight off the coil—do not pull on the wires.

Step 4: Remove the coil mounting bolt

• Remove the bolt using a 10mm socket, 1/4" drive ratchet, and a 1/4" drive extension (3" or 6").
• Set the bolt aside where it won’t get lost.

Step 5: Remove the ignition coil

• Twist the coil gently left-right to break the seal, then pull straight up.
• If it feels stuck, keep twisting gently—don’t pry hard against the valve cover.

Step 6: Inspect the coil boot and spark plug well

• Look inside the rubber boot for tears, cracking, or heavy carbon tracking (black lightning-like lines).
• If you see oil down in the spark plug well, stop—there may be a seal leak that needs addressing before the new coil will last.

Step 7: Prep and install the new coil

• Apply a pea-sized amount of dielectric grease inside the tip of the boot (dielectric grease helps prevent moisture and makes future removal easier).
• Push the new coil straight down until it fully seats on the spark plug.

Step 8: Reinstall and torque the coil bolt

• Start the bolt by hand to avoid cross-threading.
• Tighten using a 10mm socket and torque wrench (inch-pound).
• Torque to 9 Nm (80 in-lbs)
• Tip: Snug, not “gorilla tight.”

Step 9: Reconnect the electrical connector

• Push the connector on until it clicks/locks in place.
• Lightly tug the connector body to confirm it’s secure.

Step 10: Repeat for other coils (if replacing more than one)

• Repeat Steps 2–9 for each additional coil.
• Tip: Replace in pairs per bank if uncertain.

Step 11: Reinstall the engine cover and reconnect battery

• Reinstall the cover by aligning the grommets and pressing down firmly.
• Reconnect the negative battery cable using a 10mm wrench and tighten securely.

---

✅ After Repair

• Start the engine and let it idle for 1–2 minutes. Listen for a smooth idle.
• If you had a check-engine light, it may take a few drive cycles to clear on its own, or you can clear codes with a scan tool.
• Test drive 10–15 minutes and recheck for any warning lights or misfire symptoms.
• If the same misfire returns, the spark plug (or plug well oil) may be the real cause.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$450 (one coil) / $700-$1,400 (all 8, varies by parts used)

DIY Cost: $40-$120 (one coil) / $250-$800 (all 8, varies by brand)

You Save: $160-$650 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
