🔧 CX-9 - Ignition Coil Replacement

Your CX-9 uses one ignition coil per cylinder (4 total). A bad coil can cause misfires, rough running, and a flashing/check engine light, so replacing the failed coil(s) restores smooth ignition and protects the catalytic converter.

Difficulty Level: Beginner | Estimated Time: 0.5-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; the turbo/engine area gets very hot.
• ⚠️ Key OFF and keep the key fob away from the vehicle while unplugging coils.
• ⚠️ If you disconnect the battery, you may lose radio clock settings.
• ⚠️ Pull straight on connectors—don’t yank wires.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" socket extension (1/4")
• Torque wrench (inch-pound or low-range Nm)
• Small flathead screwdriver
• OBD-II scan tool
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1-4
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the hood and let the engine cool fully.
• If you want maximum safety, disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back. (Optional but recommended for a first-timer.)
• If you’re chasing a misfire, plug in your OBD-II scan tool and write down codes (example: P0301 = cylinder 1 misfire) before you start.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Grip the engine cover with both hands and pull straight up to release the rubber grommets. Pull upward, not toward you.

Step 2: Locate the ignition coils

• The coils sit on top of the valve cover, one per cylinder, each with an electrical connector and a single hold-down bolt.
• An ignition coil is the “spark maker” that sits over the spark plug.

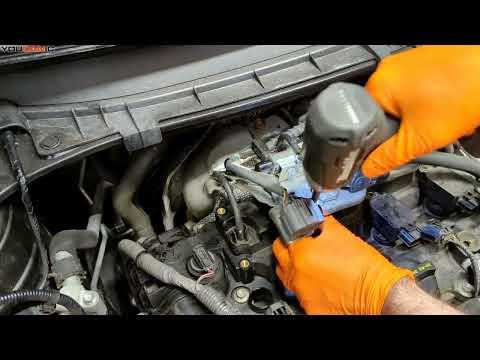

Step 3: Unplug the coil electrical connector

• Use a small flathead screwdriver to gently lift the connector lock tab (only if needed), then press the release and pull the connector straight off.
• If it’s stuck, wiggle the connector body—do not pull on the wires.

Step 4: Remove the coil hold-down bolt

• Use a 10mm socket, 1/4" drive ratchet, and 6" extension to remove the bolt.
• Set the bolt aside where it won’t fall into the engine bay.

Step 5: Remove the ignition coil

• Grab the coil and twist slightly left-right to break the seal, then pull straight upward to remove it.
• If it feels glued in, keep twisting gently—don’t pry hard on the valve cover.

Step 6: Install the new ignition coil

• Put a very small smear of dielectric grease inside the rubber boot of the new coil. (Dielectric grease is an insulating grease that helps prevent moisture and makes future removal easier.)
• Push the new coil straight down until it fully seats on the spark plug.

Step 7: Reinstall and torque the coil bolt

• Start the bolt by hand to avoid cross-threading.
• Use a torque wrench and 10mm socket: Torque to 8 Nm (71 in-lbs).

Step 8: Reconnect the coil connector

• Push the connector on until it clicks/locks.
• Do a gentle tug test to confirm it’s latched.

Step 9: Repeat for any other coils you’re replacing

• Use the same steps for the remaining cylinders (one coil at a time so nothing gets mixed up).

Step 10: Reinstall the engine cover

• Line up the cover with the mounting points and push straight down until it snaps into place.

---

✅ After Repair

• If you disconnected the battery, reconnect it using a 10mm socket and ensure the terminal is snug.
• Start the engine and let it idle for 1-2 minutes. It should run smooth with no shaking.
• Use your OBD-II scan tool to clear misfire codes, then re-check for pending codes after a short test drive.
• If the check engine light flashes again, stop driving—continuous misfire can damage the catalytic converter.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$650 (parts + labor)

DIY Cost: $60-$400 (parts only)

You Save: $190-$250+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.2 hours.

---
