🔧 Mustang - Ignition Coil Replacement

Your Mustang uses coil-on-plug ignition coils (one coil per cylinder) mounted on top of the valve covers. Replacing a bad coil can fix misfires, rough idle, and flashing check-engine lights, and it’s a straightforward DIY job with basic hand tools.

Difficulty Level: Beginner | Estimated Time: 0.5-1.5 hours (one coil: ~15-30 minutes)

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine to avoid burns (coils sit near hot parts).
• ⚠️ Keep the key far away so the engine can’t be started accidentally.
• ⚠️ If you disconnect the battery, you may reset radio/clock settings.
• ⚠️ Don’t pull on wiring—always release the connector lock first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 7mm socket
• 1/4" drive ratchet
• 6" 1/4" drive extension
• Torque wrench (in-lb)
• Small flathead screwdriver
• Needle-nose pliers
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1 (or Qty: 8 recommended as a set if several are failing)
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the hood and let the engine cool fully.
• If you choose to disconnect the battery: use a 10mm socket to remove the negative terminal first. (If you do this, add 10mm socket to your tools list.)
• Plan which coil you’re replacing (driver vs passenger side). Good lighting helps a lot.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Grip the cover with both hands and pull straight up to release it from the rubber grommets (no tools on most setups).
• Set it aside where it won’t get stepped on.

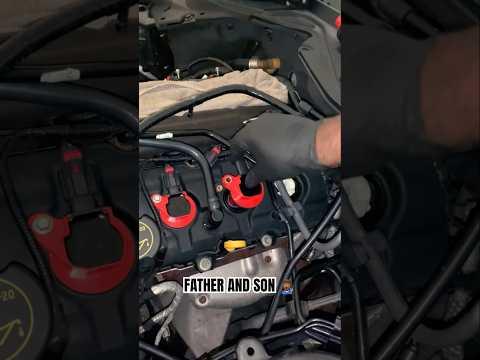

Step 2: Locate the ignition coil

• Use a flashlight to find the coil on top of the valve cover.
• Each coil is a small rectangular unit with an electrical connector and one small retaining bolt.

Step 3: Disconnect the coil electrical connector

• Use a small flathead screwdriver to gently lift the connector lock tab if it’s stubborn.
• Press the release and pull the connector straight back off the coil.
• Don’t pry hard—plastic locks break easily.

Step 4: Remove the coil retaining bolt

• Use a 7mm socket with a 1/4" ratchet and 6" extension to remove the bolt.
• Put the bolt somewhere safe so it doesn’t fall into the engine bay.

Step 5: Remove the ignition coil

• Twist the coil gently left-right to break the seal of the rubber boot.
• Pull straight up to remove the coil from the spark plug well.
• If the boot sticks, use needle-nose pliers carefully on the boot lip (not the wiring).
• Twist first, then pull—much easier.

Step 6: Prep and install the new coil

• Put a small smear of dielectric grease inside the new coil boot (a pea-sized amount). Dielectric grease is a silicone grease that helps prevent moisture and makes future removal easier.
• Align the new coil with the spark plug well and press straight down until it fully seats.

Step 7: Reinstall the retaining bolt

• Start the bolt by hand first (to avoid cross-threading).
• Use a 7mm socket to snug it down.
• Use a torque wrench (in-lb) and tighten the coil bolt to Torque to 62 in-lb (7 Nm).

Step 8: Reconnect the electrical connector

• Push the connector onto the coil until it clicks/locks.
• Give it a gentle tug to confirm it’s fully seated.

Step 9: Repeat for any other coils (if replacing more than one)

• Use the same tools and steps for each cylinder.
• One coil at a time prevents mix-ups.

Step 10: Reinstall the engine cover

• Line up the mounting points and press down firmly by hand until it snaps into the grommets.

---

✅ After Repair

• Start your Mustang and let it idle for 1-2 minutes. It should run smooth with no shaking.
• If the check engine light was on for a misfire, use a scan tool to clear the code and confirm it does not return.
• Road test for 10-15 minutes with light/medium acceleration and confirm no hesitation.
• Recheck that every coil connector is fully clicked in if you still feel a misfire.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$450 (parts + labor, depending on how many coils)

DIY Cost: $45-$360 (parts only, depending on 1 vs 8 coils)

You Save: $135-$90 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.5 hours.

---
