🔧 RAV4 - Ignition Coil Replacement

You’ll be removing the ignition coils from the top of the engine and installing new ones. This restores proper spark to your engine and can fix misfires, rough idle, and loss of power.

Difficulty Level: Beginner | Estimated Time: 0.5–1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work with the engine completely cool to avoid burns.
• ⚠️ Disconnect the negative battery terminal; this prevents accidental short circuits while handling electrical parts.
• ⚠️ Do not pull on wires; always press the connector tab before unplugging.
• ⚠️ Keep tools and loose parts away from the serpentine belt and fans.
• ⚠️ Only twist coils gently; forcing them can crack plastic or damage the rubber boot.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 10mm socket
• 🧰 1/4" drive ratchet
• 🧰 3" 1/4" drive extension
• 🧰 Torque wrench (inch-lb or low-range ft-lb, 50–120 in-lb)
• 🧰 Flathead screwdriver (small)
• 🧰 Needle-nose pliers
• 🧰 Dielectric grease packet (for ignition components)
• 🧰 Shop rag
• 🧰 Fender cover or old towel
• 🧰 Mechanic gloves
• 🧰 Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Ignition coils (2.5L 2AR-FE) - Qty: 4
• 🔩 Dielectric grease packet - Qty: 1
• 🔩 Plastic wire loom clips (engine cover / harness clips, optional) - Qty: 2–4
• 🔩 Shop towels - Qty: 1 pack

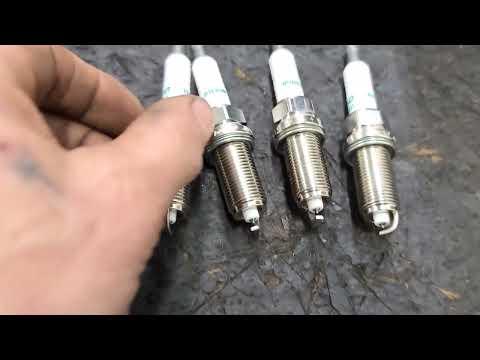

• 🔩 Optional: Spark plugs (iridium, correct heat range) - Qty: 4

---

📋 Before You Begin

• Park your RAV4 on level ground, shift to Park, and set the parking brake.
• Turn the engine off and remove the key from the ignition or turn the push-button completely off.
• Open the hood and secure it with the prop rod.
• Disconnect the negative battery terminal using a 10mm socket and wrap the cable end in a rag so it cannot touch the battery post.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Stand in front of the vehicle and locate the plastic engine cover on top of the engine.
• Place a fender cover or towel over the bumper to protect the paint.
• Grip the engine cover with both hands near the corners and pull straight up; it is held by rubber grommets, no bolts.
• Set the cover aside in a safe place.

Step 2: Locate the ignition coils

• The ignition coils are the four black units on top of the engine, each sitting over a spark plug hole, with one electrical connector per coil.
• Visually check for dirt or debris around them; use a shop rag to wipe away loose dirt so it does not fall into the engine.

Step 3: Unplug the ignition coil connectors

• On one coil at a time, locate the small plastic tab on the electrical connector.
• Press down on the tab with your thumb; if it is stiff, gently help it with a flathead screwdriver while pressing.
• While the tab is pressed, pull the connector straight back by hand. Do not pull on the wires.
• Repeat for all four ignition coils.

Step 4: Remove the ignition coil hold-down bolts

• Each ignition coil is held by a single small bolt at the top.
• Use a 10mm socket, 3" extension, and 1/4" drive ratchet to loosen the bolt on the first coil.
• Remove the bolt completely and set it aside somewhere clean so it does not get lost.
• Repeat for the remaining three coils.

Step 5: Remove the ignition coils

• Grip the top of the first coil and gently twist it left and right to break any slight seal at the rubber boot.
• Pull the coil straight up by hand; it may feel snug but should come free with gentle twisting.
• If a coil is stuck, twist a bit more and gently pull – do not use pliers on the plastic body.
• Repeat for the remaining three coils, and line them up on a clean surface in order they came out. Keeping order helps compare condition.

Step 6: Inspect coil boots and plug wells

• Look down each spark plug tube with a light; check for oil or heavy dirt.
• If you see oil, the valve cover gasket may be leaking and should be addressed later.
• Inspect each old coil’s rubber boot for cracks or burn marks; this confirms they needed replacement.

Step 7: Prepare the new ignition coils

• Unbox the new coils and verify you have four identical units that match the original style and connector shape.
• Apply a very small amount of dielectric grease inside the tip of each rubber boot using your finger or a cotton swab.
• Use a thin film, not a blob.

Step 8: Install the new ignition coils

• Take the first new coil and line up the rubber boot with the spark plug hole.
• Push it straight down by hand until you feel it seat onto the spark plug; you may feel a soft “click” as it sits on the plug.
• Align the bolt hole on the coil bracket with the threaded hole in the valve cover.
• Repeat for all four coils, installing them into their positions.

Step 9: Reinstall and torque the coil bolts

• Start each coil bolt by hand to avoid cross-threading.
• Use the 10mm socket, extension, and ratchet to snug each bolt down gently.
• Then use the torque wrench with the 10mm socket to tighten each coil bolt to 9 N·m (80 in-lb, about 7 ft-lb).
• Do not overtighten; the threads are in aluminum.

Step 10: Reconnect the coil electrical connectors

• On the first coil, push the electrical connector straight onto the coil until you hear or feel a “click.”
• Lightly tug the connector to ensure it is locked in place.
• Repeat for all four coils.
• Use needle-nose pliers only if needed to gently re-clip any harness clips you opened or removed.

Step 11: Reinstall the engine cover

• Position the engine cover over the engine so the rubber grommets line up with the metal posts.
• Press down firmly with your hands over each corner until you feel it snap into place.

Step 12: Reconnect the battery and test

• Reconnect the negative battery terminal using the 10mm socket and tighten it snugly. Do not overtighten.
• Remove your tools and rags from the engine bay.
• Start the engine and let it idle.
• Listen for smooth running: no shaking, no misfire “puttering,” and no check engine light flashing.

---

✅ After Repair

• Let the engine idle for a few minutes and then lightly rev it to check for smooth response.
• If the check engine light was on for misfires, it may clear on its own after some drive cycles; if not, a scan tool can clear codes.
• Take a short test drive around the block, checking for smooth acceleration and no hesitation.
• After the drive, recheck under the hood to be sure all connectors are seated and nothing is loose.

---

💰 DIY vs Shop Cost

Shop Cost: $350–$550 (parts + labor)

DIY Cost: $150–$300 (parts only)

You Save: $200–$250 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 0.7–1.0 hours.

---
