🔧 XT5 - Ignition Coil Replacement

Ignition coils sit on top of the spark plugs and create the high voltage needed to fire the engine. Replacing a weak or failed coil can fix misfires, rough running, and flashing check-engine light (often with codes like P0300–P0306).

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; coils sit near hot components.
• ⚠️ Keep the key/fob away from the vehicle so the engine can’t accidentally crank.
• ⚠️ Do not pull on wiring; press the connector lock and pull on the plug body.
• ⚠️ If you disconnect the battery, you may lose radio presets.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Trim clip removal tool
• Small flathead screwdriver
• Torque wrench (inch-pound)
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1 (or Qty: 6 if replacing all)
• Dielectric grease - Qty: 1
• Intake duct clamp (if damaged) - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground and set the parking brake.
• Open the hood and let the engine cool fully.
• If you choose to disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• Tip: Replacing coils in pairs or all six is often smarter.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Grip the cover with both hands and pull straight upward to release the rubber grommets.
• Use a flashlight to confirm nothing is still clipped or snagged.

Step 2: Make room (if needed) to reach the coil(s)

• If access is tight, loosen the intake duct clamp(s) with a flathead screwdriver.
• Use a trim clip removal tool to pop any plastic retainers holding the duct/hoses in place.
• Move the duct aside gently (don’t crack it).

Step 3: Unplug the coil electrical connector

• Press the connector locking tab (use a small flathead screwdriver only if the tab is stubborn) and pull the connector straight off.
• Tip: Wiggle the connector—don’t yank the wires.

Step 4: Remove the coil mounting bolt

• Use a 10mm socket, 1/4" drive ratchet, and 6" extension to remove the bolt holding the coil down.
• Set the bolt aside where it won’t fall into the engine bay.

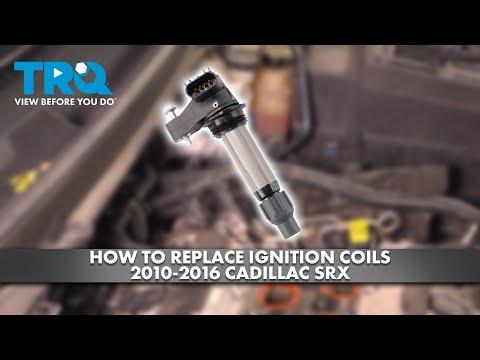

Step 5: Remove the ignition coil

• Twist the coil slightly left/right to break the seal, then pull straight upward to remove it.
• If it feels stuck, keep twisting—do not pry hard against the valve cover.

Step 6: Prep and install the new coil

• Apply a small pea-sized amount of dielectric grease inside the new coil boot (dielectric grease is a non-conductive grease that helps prevent moisture and makes future removal easier).
• Push the coil straight down onto the spark plug until you feel it fully seat.

Step 7: Reinstall the coil bolt and torque it

• Start the bolt by hand first to avoid cross-threading.
• Use a 10mm socket to snug it down.
• Use a torque wrench (inch-pound) and 10mm socket: Torque to 89 in-lb (10 Nm).

Step 8: Reconnect the coil connector

• Push the connector on until you feel/hear a click.
• Use a flashlight to verify the connector is fully seated and the lock is engaged.

Step 9: Reassemble what you moved

• Reposition the intake duct and reinstall any retainers using the trim clip removal tool.
• Tighten intake duct clamp(s) with a flathead screwdriver (snug, not crushing-tight).
• Reinstall the engine cover by lining up the grommets and pushing straight down.

---

✅ After Repair

• Start the engine and let it idle for 1–2 minutes. It should run smooth.
• If the check-engine light was flashing before, confirm it’s gone and the engine isn’t misfiring.
• If you disconnected the battery, reset your clock/radio presets.
• If the check-engine light stays on, the code may need to be cleared after the repair.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$650 (parts + labor, depends on number of coils)

DIY Cost: $45-$420 (parts only, depends on 1 vs 6 coils)

You Save: $200-$300+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
