🔧 Sportage - Ignition Coil Replacement

Your Sportage uses one ignition coil per cylinder. Replacing a bad coil can fix misfires, rough idle, and flashing check engine lights because each coil makes the spark plug fire.

Difficulty Level: Beginner | Estimated Time: 0.5-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine; coils sit on a hot valve cover.
• ⚠️ Disconnect the negative battery cable to prevent accidental shorts.
• ⚠️ Don’t pull on wiring; release electrical connector locks first.
• ⚠️ If the check engine light is flashing, avoid driving until repaired (can damage the catalytic converter).

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Torque wrench (in-lb or low Nm range)
• Trim clip remover
• Small flathead screwdriver
• Needle-nose pliers
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1-4 Replace only failed, or all four.
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool completely.
• Use a 10mm socket to disconnect the negative battery terminal and tuck it aside so it can’t spring back.
• If you’re replacing only one coil, note which cylinder was misfiring (P0301-P0304) before disconnecting the battery.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Lift the cover straight up by hand; if it uses grommets it will pop off.
• If any plastic clips are present, remove them with a trim clip remover.

Step 2: Locate the ignition coils

• The coils sit on top of the valve cover, one per cylinder, with an electrical connector on each.
• Take a quick photo for reference.

Step 3: Unplug the coil electrical connector

• Press the connector lock tab by hand; if it’s stubborn, gently help the tab with a small flathead screwdriver.
• Pull the connector straight off (don’t yank the wires).
• Wiggle the plug, don’t force it.

Step 4: Remove the coil hold-down bolt

• Use a 10mm socket, 6" extension, and 1/4" ratchet to remove the single bolt holding the coil down.
• Set the bolt aside where it won’t fall into the engine bay.

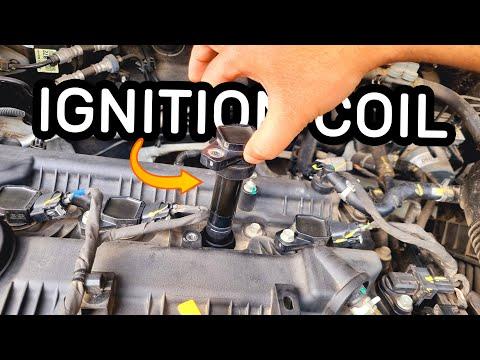

Step 5: Pull the ignition coil out

• Twist the coil slightly left-right, then pull straight up to remove it from the spark plug tube.
• If it feels stuck, keep twisting gently—don’t pry on the valve cover.

Step 6: Prep the new coil

• Apply a tiny smear of dielectric grease inside the rubber boot (this helps seal and eases future removal).
• Wipe any dirt off the spark plug tube area with shop towels before reinstalling.

Step 7: Install the new coil

• Push the coil straight down until you feel it fully seat on the spark plug.
• Reinstall the hold-down bolt using a 10mm socket.
• Tighten with a torque wrench: Torque to 9.8 Nm (87 in-lbs).

Step 8: Reconnect the electrical connector

• Push the connector on until it clicks/locks into place.
• Gently tug-check it by hand to confirm it’s latched.

Step 9: Repeat for other coils (if replacing more than one)

• Repeat Steps 3-8 for each additional cylinder.
• Replace coils one at a time to avoid mix-ups.

Step 10: Reinstall the engine cover and reconnect the battery

• Reinstall the engine cover by pressing it down into the grommets (or reinstall clips with needle-nose pliers if equipped).
• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Start the engine and let it idle for 1-2 minutes; it should run smooth with no shaking.
• If the check engine light stays on, the code may need clearing with a scan tool, or there may be another issue (spark plug, injector, vacuum leak).
• Take a 10-minute test drive and recheck for any warning lights or hesitation under acceleration.
• If you had a flashing check engine light before, confirm it does not return under load.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$700 (parts + labor)

DIY Cost: $60-$400 (parts only)

You Save: $190-$300+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.2 hours.

---
