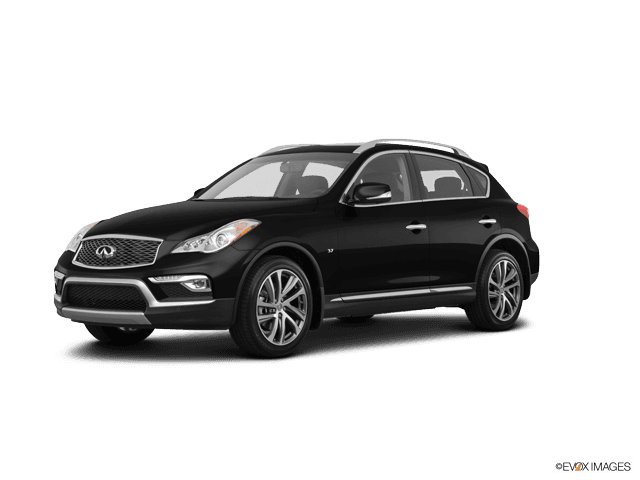

🔧 QX50 - Ignition Coil Replacement

Ignition coils create the high voltage that fires each spark plug. When a coil gets weak or fails, your QX50 can misfire, idle rough, lose power, and turn on the check engine light.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: replacing all 6 coils; rear bank access may require upper intake removal.

---

⚠️ Safety & Precautions

• 🛑 Let the engine fully cool before starting (hot parts burn).
• 🛑 Disconnect the negative battery terminal to prevent shorting connectors.
• 🛑 Keep tools and bolts out of the intake ports—dropped hardware can cause engine damage.
• 🛑 Do not pull on wiring; always release the connector lock first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 1/4" ratchet
• 3/8" ratchet
• 3" extension
• 6" extension
• Universal joint adapter
• Torque wrench (in-lb)
• Torque wrench (ft-lb)
• Flathead screwdriver
• Trim clip removal tool
• Needle-nose pliers
• Shop light
• Dielectric grease
• OBD2 scan tool
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 6 (replace all six for best reliability)
• Upper intake plenum gasket set - Qty: 1 (only if upper intake is removed)
• Throttle body gasket - Qty: 1 (only if throttle body is removed)

---

📋 Before You Begin

• 🧰 Park on level ground, shift to Park, and set the parking brake.
• 🧰 Open the hood and let the engine cool completely.
• 🧰 Use a 10mm socket to disconnect the negative battery terminal and tuck it aside.
• 🧰 Label any hoses/connectors you remove with masking tape (helps first-timers).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Lift up to pop the cover off its rubber grommets (no tools on most setups).
• Set it aside where it won’t get stepped on.

Step 2: Remove the intake ducting for working room

• Use a flathead screwdriver to loosen the intake hose clamps.
• Unclip/unplug any small breather hoses using needle-nose pliers (squeeze clamp, slide it back).
• Lift the ducting out and set it aside.

Step 3: Replace the front-bank coils (easier side)

• Locate the three coils on the front valve cover (each coil sits on a spark plug).
• Unplug a coil: press the connector lock tab and pull straight off. Connector lock = the little release clip.
• Use a 10mm socket to remove the coil hold-down bolt.
• Twist the coil slightly, then pull upward to remove it.
• Apply a very thin film of dielectric grease inside the new coil boot. Boot = the rubber sleeve that seals to the plug.
• Push the new coil straight down until fully seated.
• Install the 10mm bolt and Torque to 62 in-lb (7 N·m).
• Reconnect the electrical connector until it clicks.
• Repeat for the other two front coils.

Step 4: Access the rear-bank coils (tight area)

• Try access first with a 10mm socket, 6" extension, and universal joint adapter.
• If you cannot comfortably remove the rear coils, continue to Step 5 to remove the upper intake for access.

Step 5: Remove the upper intake (only if needed for rear coils)

• Use a trim clip removal tool to remove any plastic clips/covers in the way.
• Unplug the throttle body connector and any nearby vacuum/PCV hoses using needle-nose pliers.
• Use a 10mm socket to remove the throttle body fasteners if it blocks upper intake removal.
• Use a 12mm socket and ratchet to remove the upper intake bolts evenly.
• Lift the upper intake straight up and off.
• Immediately cover the lower intake openings with a clean rag so nothing falls in.

Step 6: Replace the rear-bank coils

• Unplug each coil connector (press the lock tab, pull straight off).
• Use a 10mm socket to remove each coil hold-down bolt.
• Twist and pull the coil straight up to remove it.
• Add a thin film of dielectric grease inside each new coil boot.
• Install the new coil fully seated, then install the bolt and Torque to 62 in-lb (7 N·m).
• Reconnect each connector until it clicks.

Step 7: Reinstall the upper intake (if removed)

• Remove the rags covering the intake openings.
• Install new upper intake gaskets if the intake was removed.
• Set the upper intake back into place carefully (don’t pinch hoses/wires).
• Install the bolts by hand first to avoid cross-threading.
• Tighten the bolts evenly in a crisscross pattern and Torque to 18 ft-lb (25 N·m).
• If removed, reinstall the throttle body with a new gasket and Torque to 7 ft-lb (10 N·m).
• Reconnect all hoses and electrical connectors.

Step 8: Reinstall intake ducting and engine cover

• Reinstall the intake ducting and tighten the clamps with a flathead screwdriver.
• Reconnect any breather hoses and clamps using needle-nose pliers.
• Press the engine cover back onto its grommets.

Step 9: Reconnect the battery

• Use a 10mm socket to reconnect the negative battery terminal.
• Make sure the terminal is snug and doesn’t rotate by hand.

---

✅ After Repair

• Start the engine and let it idle 1-2 minutes; it should run smooth with no shaking.
• Listen for hissing (vacuum leak) around the intake area if it was removed.
• Use an OBD2 scan tool to clear misfire codes, then recheck for pending codes.
• Take a 10-minute test drive, then recheck for a check engine light.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$950 (parts + labor)

DIY Cost: $180-$480 (parts only)

You Save: $270-$470 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
