🔧 Elantra - Ignition Coil Replacement

Your Elantra’s ignition coils sit on top of the engine and fire the spark plugs. Replacing a weak or failed coil can fix misfires, rough idle, flashing check-engine light, and poor acceleration.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; coils sit near hot metal.
• ⚠️ Turn ignition OFF and keep the key/fob away from the car while unplugging connectors.
• ⚠️ If you disconnect the battery, use a 10mm wrench and remove the negative terminal first.
• ⚠️ Pull on the coil body, not the wiring harness, to avoid broken wires.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Torque wrench (inch-pound or low-range ft-lb)
• Small flathead screwdriver
• Needle-nose pliers
• Flashlight
• Nitrile gloves
• Safety glasses
• 10mm wrench

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1 (or Qty: 4 if replacing all)
• Dielectric grease (spark plug boot grease) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine fully cool.
• Tip: Replacing coils in pairs or all four helps reliability.
• Optional: Disconnect the negative battery terminal using a 10mm wrench.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Grip the cover with both hands and pull upward to pop it off the rubber grommets.
• Use a flashlight to locate the ignition coils along the top of the engine.

Step 2: Unplug the coil electrical connector

• At the coil, press the connector locking tab and pull the plug straight back.
• If it’s stuck, use a small flathead screwdriver to gently help lift the tab while pulling (don’t pry hard).
• Tip: Wiggle the connector—don’t yank wires.

Step 3: Remove the coil hold-down bolt

• Use a 10mm socket, 1/4" drive ratchet, and 6" extension to remove the single bolt holding the coil down.
• Set the bolt aside where it won’t fall into the engine bay.

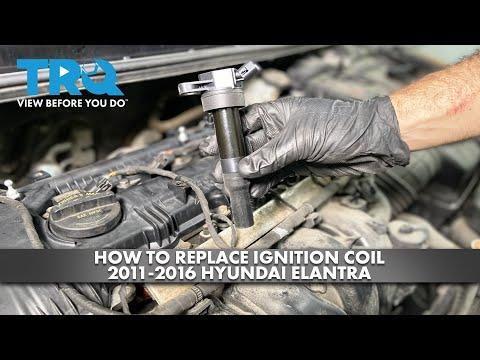

Step 4: Remove the ignition coil

• Grab the coil body and twist it slightly left-right to break the seal.
• Pull straight upward to remove it from the spark plug tube.
• If it’s tight, use needle-nose pliers to help grip the coil body gently (do not crush it).

Step 5: Prep and install the new coil

• Put a small dab of dielectric grease inside the new coil boot (the rubber “boot” is the long rubber sleeve that snaps onto the spark plug).
• Slide the coil straight down into the spark plug tube until it fully seats.
• Reinstall the hold-down bolt by hand first (prevents cross-threading).
• Tighten the bolt with a torque wrench: Torque to 9.8 Nm (7.2 ft-lbs).

Step 6: Reconnect the coil connector

• Push the connector onto the coil until it clicks.
• Use a flashlight to confirm the connector is fully seated and the wire routing matches the others.

Step 7: Repeat for other coils (if replacing more than one)

• Repeat Steps 2–6 for each remaining coil.
• Tip: Do one coil at a time to avoid mix-ups.

Step 8: Reinstall the engine cover

• Align the cover with the mounting points and press down firmly until it snaps into place.

---

✅ After Repair

• If you disconnected the battery, reconnect it using a 10mm wrench (negative terminal last to remove, first to install).
• Start the engine and let it idle for 1–2 minutes; it should run smooth with no shaking.
• If the check-engine light was on, it may take a few drive cycles to go off, or you can clear codes with a scan tool.
• Test drive 10–15 minutes and recheck for any warning lights or new misfire feeling.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$450 (parts + labor)

DIY Cost: $45-$320 (parts only, depending on replacing 1 vs all 4)

You Save: $100-$200+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
