🔧 Express - Ignition Coil Replacement

Your Express uses individual ignition coils mounted on the valve covers. Replacing a bad coil can fix misfires (shaking, flashing check-engine light, rough idle) by restoring strong spark to the correct cylinder.

Difficulty Level: Beginner | Estimated Time: 1-2 hours

Assumption: 4.8L V8 coil packs on valve covers under the doghouse.

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine to avoid burns from the doghouse and exhaust.
• ⚠️ Disconnect the negative battery cable to prevent accidental shorting.
• ⚠️ If the check-engine light is flashing, avoid driving until repaired (can damage the catalytic converter).
• ⚠️ Keep plug wires in the correct order—mixing them up can cause a no-start or severe misfire.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8" drive ratchet
• 3/8" drive extension set (3", 6")
• Torque wrench (in-lb or Nm)
• Flat-head screwdriver
• Trim clip removal tool
• Needle-nose pliers
• Masking tape and marker
• Shop light
• OBD-II scan tool
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1 (or as needed)
• Dielectric grease - Qty: 1
• Spark plug wire set - Qty: 1 (optional, if wires are brittle/oil-soaked)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine fully cool.
• Disconnect the negative battery cable using a 10mm socket and tuck it aside so it can’t spring back.
• Use masking tape and marker to label any plug wire you remove (example: “#1”, “#3”).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior engine cover (doghouse)

• From inside the van, release any latches/fasteners using a flat-head screwdriver or trim clip removal tool (depending on what your doghouse uses).
• Lift the doghouse cover off and set it aside. Use a shop light so you can clearly see both valve covers.
• Keep fasteners in a small tray.

Step 2: Locate the ignition coil you’re replacing

• Look along the valve covers for the small rectangular coils with an electrical connector and a spark plug wire coming out.
• If you’re chasing a misfire code, use an OBD-II scan tool to read codes (example: P0304 = cylinder 4 misfire) and match that cylinder’s coil.

Step 3: Label and remove the spark plug wire from that coil

• Put a piece of masking tape on the plug wire and mark which coil/cylinder it belongs to.
• Twist the boot (the rubber end) by hand to break it loose, then pull it straight off the coil.
• If it’s stubborn, gently help it with needle-nose pliers on the boot only (don’t crush the wire).
• Pull the boot, not the wire.

Step 4: Unplug the coil electrical connector

• Press the locking tab and unplug the connector by hand.
• If the lock is tight, carefully assist with a flat-head screwdriver (don’t pry hard—plastic tabs break easily).

Step 5: Remove the coil mounting bolts

• Use a 10mm socket, 3/8" ratchet, and a 3/8" extension to remove the coil bolts.
• Lift the coil off the bracket/valve cover and compare it to the new coil to confirm the connector and mounting match.

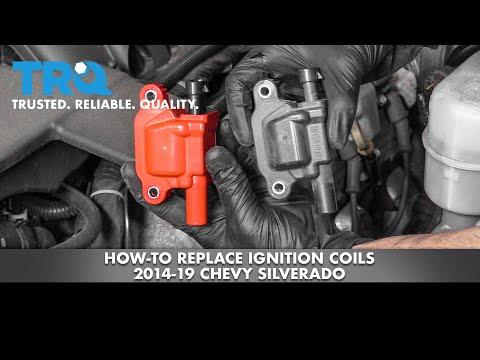

Step 6: Install the new coil

• Set the new coil into place and start the bolts by hand to avoid cross-threading.
• Tighten the coil bolts using a torque wrench: Torque to 10 Nm (89 in-lbs).
• Plug the electrical connector back in until it clicks.

Step 7: Reinstall the spark plug wire

• Apply a small dab of dielectric grease inside the plug-wire boot (this helps seal moisture and makes future removal easier).
• Push the boot onto the coil until you feel it fully seat.
• Route the wire exactly like it was to keep it away from hot or moving parts.

Step 8: Reinstall the doghouse and reconnect the battery

• Reinstall the doghouse cover and fasteners using a trim clip removal tool or flat-head screwdriver as needed.
• Reconnect the negative battery cable using a 10mm socket and snug it securely.

---

✅ After Repair

• Start the engine and let it idle for 1-2 minutes. It should run smooth with no shaking.
• Use an OBD-II scan tool to clear any stored misfire codes and confirm they don’t return.
• Road test for 10-15 minutes, then recheck for codes.
• If the misfire remains, swap the new coil to another cylinder as a check—if the misfire “moves,” that confirms a coil/wire issue.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$450 (parts + labor, depending on how many coils)

DIY Cost: $35-$90 (parts only, per coil)

You Save: $145-$360 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
