🔧 MX-5 Miata - Ignition Coil Replacement

Your MX-5 Miata uses a coil-on-plug ignition system (one ignition coil per spark plug). Replacing coils is straightforward: you’ll remove the electrical connector and one small bolt per coil, then swap the coils and reassemble.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• 🧯 Let the engine cool fully before starting (hot aluminum and coils can burn you).
• 🔋 If you disconnect the battery, use a 10mm wrench and remove the negative terminal first to prevent accidental shorts.
• 🧤 Don’t pull on wiring; always press the connector tab and pull on the plug body.
• ⚠️ Keep dirt out of the spark plug wells; blow them out before removing coils if dusty.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Inch-pound torque wrench (or small Nm torque wrench)
• Small flat-head screwdriver
• Needle-nose pliers
• Compressed air blow gun
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 4
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• 🧊 Let the engine cool completely.
• 🔋 Optional but recommended: disconnect the negative battery terminal using a 10mm socket.
• 💡 Work one coil at a time to avoid mix-ups.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Grasp the engine cover and pull upward to release it from the rubber grommets (no tools usually needed).
• If it feels stuck, gently pry at a corner with a small flat-head screwdriver while pulling up.

Step 2: Access and clean around the coils

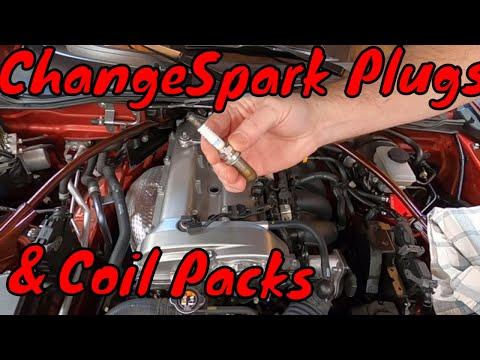

• You’ll see four ignition coils on top of the valve cover (one per cylinder).
• Use compressed air blow gun to blow debris away from each coil area so nothing falls into the spark plug wells.

Step 3: Unplug the ignition coil electrical connector

• Press the connector lock tab and pull the connector straight back off the coil.
• If the tab is stubborn, gently help it with a small flat-head screwdriver (don’t break the tab).

Step 4: Remove the ignition coil retaining bolt

• Use a 10mm socket with a 1/4" drive ratchet and 6" extension to remove the single bolt holding the coil.
• Set the bolt aside on a shop towel.

Step 5: Remove the ignition coil

• Twist the coil slightly to break the seal, then pull straight up to remove it.
• If it’s tight, use gentle rocking—don’t pry hard against the valve cover.

Step 6: Install the new ignition coil

• Put a very small smear of dielectric grease inside the new coil boot (this helps sealing and future removal). Dielectric grease is a non-conductive silicone grease used on ignition boots.
• Push the new coil straight down until it seats fully on the spark plug.
• Reinstall the coil bolt using a 10mm socket.
• Tighten with a torque wrench (a torque wrench measures tightening force so you don’t strip threads): Torque to 8 Nm (71 in-lbs).

Step 7: Reconnect the coil connector

• Push the connector onto the coil until it clicks/locks.
• Give it a gentle tug to confirm it’s latched.

Step 8: Repeat for the remaining coils

• Repeat Steps 3–7 for the other three coils.
• Replace coils in a complete set if possible.

Step 9: Reinstall the engine cover

• Align the cover with the grommets and press down firmly until it snaps into place.
• If you disconnected the battery, reconnect the negative terminal using a 10mm socket.

---

✅ After Repair

• 🚗 Start the engine and let it idle for 1–2 minutes. It should run smooth with no shaking.
• 🔎 Check that no connectors are loose and that nothing is left in the engine bay.
• 🛠️ If the check engine light was on for a misfire, it may clear after a few drive cycles; otherwise, you’ll need a scan tool to clear codes.
• ⚠️ If you still have a misfire after replacing coils, the next common item is spark plugs (or a wiring/fuel issue).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $140-$360 (parts only)

You Save: $110-$190 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.0 hours.

---
