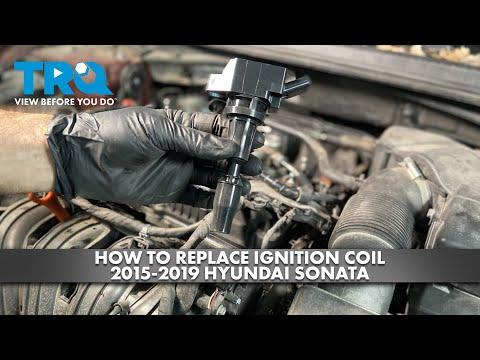

🔧 Sonata - Ignition Coil Replacement

On your Sonata, the ignition coils sit on top of the engine and send high voltage to the spark plugs. Replacing a bad coil can fix misfires, rough idle, and flashing check-engine lights, and it’s a straightforward under-hood job.

Difficulty Level: Beginner | Estimated Time: 0.5-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool fully before starting; coils sit near hot parts.
• ⚠️ Hybrid safety: keep clear of orange high-voltage cables and connectors; you do not need to open any high-voltage components for this job.
• ⚠️ Turn the car OFF, keep the key/fob at least 10+ feet away, and wait 5 minutes before working.
• ⚠️ Disconnecting the 12V negative battery terminal is recommended to prevent accidental starts and protect electronics.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8" drive ratchet
• 3" socket extension
• Torque wrench (3/8" drive)
• Trim clip tool
• Needle-nose pliers
• Shop light
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1-4 (replace the failed one or all four)
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Power the car OFF and keep the key/fob away from the vehicle.
• Open the hood and wait at least 5 minutes.
• Disconnect the 12V battery negative terminal using a 10mm socket and tuck the cable aside so it can’t spring back.
• If you see any orange cables near your work area, do not unplug or move them.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine appearance cover (if equipped)

• Use a trim clip tool to gently lift any plastic retainers (if present).
• Lift the cover straight up by hand to release the rubber grommets, then set it aside.

Step 2: Locate the ignition coils

• Use a shop light and find the row of coils on top of the engine (one coil per cylinder).
• Each coil has an electrical connector and a small hold-down bolt.

Step 3: Unplug the coil electrical connector

• Press the connector lock tab, then pull the connector straight off by hand.
• If it’s stubborn, use needle-nose pliers carefully on the connector body (not the wires).
• Don’t yank on the wiring.

Step 4: Remove the coil hold-down bolt

• Use a 10mm socket, 3" extension, and 3/8" ratchet to remove the bolt.
• Place the bolt somewhere safe so it doesn’t fall into the engine bay.

Step 5: Remove the ignition coil

• Grab the coil and twist it gently left-right to break the seal, then pull straight up to remove it.
• If it feels stuck, keep twisting gently—don’t pry hard against plastic parts.

Step 6: Install the new ignition coil

• Apply a small smear of dielectric grease inside the rubber boot (the rubber end that sits on the spark plug). Dielectric grease is an insulating grease that helps prevent moisture and makes future removal easier.
• Push the new coil straight down until it fully seats on the spark plug.

Step 7: Reinstall and torque the coil hold-down bolt

• Thread the bolt in by hand first to avoid cross-threading.
• Tighten using a torque wrench (3/8" drive): Torque to 8 Nm (71 in-lbs).

Step 8: Reconnect the electrical connector

• Push the connector on until it clicks/locks into place.

Step 9: Repeat for any other coils you’re replacing

• Use the same steps for the remaining cylinders if you’re doing more than one coil.

Step 10: Reinstall the engine cover and reconnect the 12V battery

• Reinstall the engine cover by aligning the grommets and pressing down by hand.
• Reconnect the 12V negative terminal using a 10mm socket and snug it securely.

---

✅ After Repair

• Start your Sonata and let it idle for 1-2 minutes; it should run smooth with no shaking.
• Road-test lightly for 10 minutes and confirm there’s no hesitation under gentle acceleration.
• If the check-engine light was on, it may take a few drive cycles to turn off; a scan tool can clear it immediately.
• If you still have a misfire, the spark plugs or a coil connector/wiring issue may be the cause.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$450 (parts + labor, depending on how many coils)

DIY Cost: $40-$320 (parts only, depending on how many coils)

You Save: $140-$130 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
