🔧 Corolla - Ignition Coil Replacement

Your Corolla’s ignition coils sit on top of the engine and create the high-voltage spark your spark plugs need. Replacing them is mostly unplugging connectors and swapping parts, but doing it carefully prevents broken connectors and misfires.

Difficulty Level: Beginner | Estimated Time: 0.5-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine to avoid burns.
• ⚠️ Disconnect the negative battery terminal to prevent accidental shorts.
• ⚠️ Do not pull on wiring; release connector locks first.
• ⚠️ Keep dirt out of the spark plug tubes (the deep holes under each coil).

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 3" socket extension
• Torque wrench (in-lb scale)
• 10mm wrench
• Trim clip tool
• Small flathead screwdriver
• Flashlight
• Nitrile gloves
• Safety glasses
• OBD-II scan tool (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1-4 Replace as needed
• Dielectric grease - Qty: 1 Optional

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool completely.
• Use a 10mm wrench to disconnect the negative battery terminal (the “-” cable) and move it aside so it can’t spring back.
• Take a quick photo of the coil connectors.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine appearance cover (if equipped)

• Use a 10mm socket with a 1/4" drive ratchet to remove the cover fasteners.
• If any plastic clips are present, release them with a trim clip tool.
• Lift the cover off and set it aside.

Step 2: Unplug the ignition coil electrical connector

• Locate the coil you’re replacing (each coil sits on top of the engine, one per cylinder).
• Press the connector lock tab and pull the connector straight off.
• If it’s stuck, gently help the lock tab with a small flathead screwdriver (do not pry hard).

Step 3: Remove the ignition coil hold-down bolt

• Use a 10mm socket, 3" socket extension, and 1/4" drive ratchet to remove the coil bolt.
• Set the bolt somewhere safe so it doesn’t fall into the engine bay.

Step 4: Remove the ignition coil

• Twist the coil gently left and right to break it loose.
• Pull the coil straight up and out of the spark plug tube.
• Use a flashlight to look down the tube for oil or water. Moisture here can cause misfires.

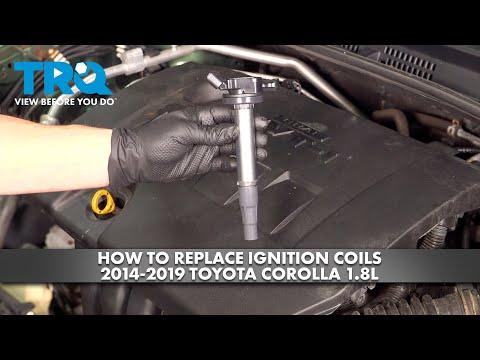

Step 5: Install the new ignition coil

• If using dielectric grease (a silicone grease that helps prevent moisture and eases future removal), put a tiny smear inside the rubber boot of the new coil.
• Push the new coil straight down until it seats fully on the spark plug.
• Reinstall the hold-down bolt by hand first to avoid cross-threading.
• Tighten the bolt with a torque wrench (in-lb scale): Torque to 80 in-lb (9 Nm).

Step 6: Reconnect the coil connector

• Push the electrical connector on until it clicks/locks.
• Give it a gentle tug to confirm it’s latched.

Step 7: Reinstall the engine cover and reconnect the battery

• Reinstall the engine cover using a 10mm socket and 1/4" drive ratchet.
• Reconnect the negative battery terminal using a 10mm wrench.

---

✅ After Repair

• Start the engine and let it idle for 30-60 seconds. It should run smooth with no shaking.
• If the check engine light was on, use an OBD-II scan tool (specialty) (a plug-in code reader) to clear codes and confirm the misfire does not return.
• Do a short test drive and re-check for warning lights.
• If it still misfires, the spark plug may be the cause.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$650 (parts + labor, depending on how many coils)

DIY Cost: $60-$400 (parts only, depending on how many coils)

You Save: $190-$250+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
