🔧 Canyon - Ignition Coil Replacement

Your Canyon uses coil-on-plug ignition coils (one coil per cylinder) mounted on the valve covers. Replacing a bad coil can fix misfires, rough idle, and flashing check-engine lights, and it’s a straightforward DIY if you work carefully around the wiring.

Difficulty Level: Beginner | Estimated Time: 0.7-1.5 hours (all 6 coils)

---

⚠️ Safety & Precautions

• 🧯 Let the engine cool fully before touching coils or exhaust components.
• 🧤 Disconnect the negative battery cable to prevent accidental shorting while unplugging connectors.
• 👓 Do not pull on wires—only press the connector lock and pull on the connector body.
• 🔥 If the check-engine light was flashing, avoid driving until repaired (can damage the catalytic converter).

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Torque wrench (inch-pound or low-range Nm)
• Trim removal tool
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1 (or Qty: 6 to replace all)
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to neutral, and set the parking brake.
• Open the hood and let the engine cool completely.
• Use a 10mm socket to disconnect the negative battery cable and move it aside so it can’t spring back.
• Take a quick photo of each connector before unplugging.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Use a trim removal tool to gently pop up the cover at the mounting points, then lift it off by hand.
• Set the cover aside where it won’t get stepped on.

Step 2: Locate the ignition coil you’re replacing

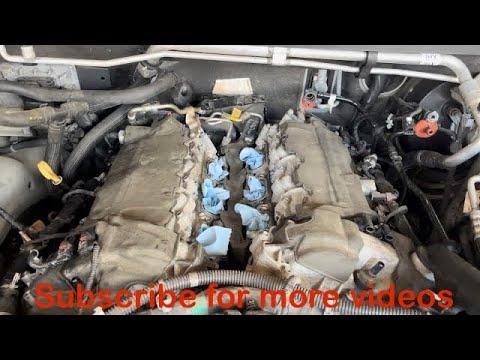

• Use a flashlight to find the coil sitting on top of the valve cover, directly above the spark plug.
• Each coil has an electrical connector and usually one small hold-down bolt.

Step 3: Unplug the coil electrical connector

• Use your fingers or a trim removal tool to release the connector lock tab (a “lock tab” is the small plastic latch that prevents the plug from backing out).
• Pull the connector straight off the coil.

Step 4: Remove the coil hold-down bolt

• Use a 10mm socket, 1/4" drive ratchet, and 3" extension to remove the coil bolt.
• Place the bolt somewhere safe so it doesn’t disappear into the engine bay.

Step 5: Remove the ignition coil

• Grip the coil body and twist it slightly left-right to break the seal, then pull straight up.
• If it feels stuck, keep twisting gently—don’t pry hard on the valve cover.

Step 6: Prep and install the new coil

• Apply a small dab of dielectric grease inside the rubber boot of the new coil. (Dielectric grease is a non-conductive grease that helps prevent moisture and makes future removal easier.)
• Push the coil straight down onto the spark plug until it seats firmly.

Step 7: Reinstall the hold-down bolt and torque it

• Start the bolt by hand a few turns to avoid cross-threading.
• Use a torque wrench with a 10mm socket to tighten the bolt: Torque to 10 Nm (89 in-lbs).

Step 8: Reconnect the electrical connector

• Push the connector on until it clicks/locks into place.
• Gently tug the connector to confirm it’s fully seated.

Step 9: Repeat for any other coils you’re replacing

• Replace coils one at a time so connectors don’t get mixed up.
• Replacing all 6 prevents “next misfire” surprises.

Step 10: Reinstall the engine cover and reconnect the battery

• Reinstall the engine cover by aligning the grommets and pressing down by hand.
• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Start the engine and let it idle for 1-2 minutes. It should run smooth with no shaking.
• If you have an OBD-II scanner, clear any stored misfire codes and re-check for pending codes after a short drive.
• Test drive 10-15 minutes with light acceleration, then re-check for a check-engine light.
• If it still misfires, the next common suspects are the spark plug, injector, or a wiring/connector issue at that coil.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$650 (parts + labor, depending on how many coils)

DIY Cost: $40-$420 (parts only, depending on how many coils)

You Save: $150-$300+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.5 hours.

---
