🔧 Sierra 1500 - Ignition Coil Replacement

You’ll be removing the ignition coils from the top of the engine on your Sierra 1500 and installing new ones, one per cylinder. This restores strong spark and can fix misfires, rough running, or coil-related check engine lights.

Difficulty Level: Beginner | Estimated Time: 1–2 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine. Hot engine parts and exhaust manifolds can burn you.
• ⚠️ Disconnect the negative battery cable before unplugging coils to avoid short circuits.
• ⚠️ Keep metal tools away from the battery positive terminal while working.
• ⚠️ Do not pull on the wires of any connector; always pull on the plastic housing.
• ⚠️ If the truck was just running, wait at least 30 minutes for it to cool.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Ratchet handle 3/8"
• 🛠️ 10mm socket
• 🛠️ 8mm socket
• 🛠️ 3/8" drive extension (3"–6")
• 🛠️ Torque wrench 3/8" drive (inch-lb and ft-lb scale)
• 🛠️ Flat trim tool or plastic pry tool
• 🛠️ Needle-nose pliers
• 🛠️ Small pick tool (specialty)
• 🛠️ Shop rags
• 🛠️ Mechanic gloves
• 🛠️ Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Ignition coil pack (5.3L, individual coils) - Qty: 8
• 🔩 Ignition coil mounting bolts (if corroded or damaged) - Qty: 8
• 🔩 Dielectric grease for ignition components - Qty: 1 tube
• 🔩 Shop towels - Qty: 1 pack
• 🔩 Disposable gloves - Qty: 1 box
• 🔩 Spark plugs (iridium, correct heat range for 5.3L) - Qty: 8 (optional but recommended)
• 🔩 Anti-seize compound for spark plug threads - Qty: 1 small tube (optional, use sparingly)

---

📋 Before You Begin

• 🧰 Park your Sierra 1500 on level ground, shift to Park, and set the parking brake.
• 🧰 Open the hood and use the hood prop securely.
• 🧰 Disconnect the negative battery terminal using a 10mm socket and move the cable aside so it cannot spring back.
• 🧰 Clear off the top of the engine area so nothing can fall into the engine bay.
• 🧰 Plan to work on one coil at a time so you do not mix up connectors or plug wires. One at a time keeps it simple

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove engine cover

• Use a 10mm socket and ratchet handle 3/8" to remove any bolts holding the plastic engine cover (if equipped).
• Lift the engine cover straight up; it may be held by rubber grommets. Use a flat trim tool or plastic pry tool gently if it is stuck.
• Set the cover aside where it will not get stepped on.

Step 2: Identify the ignition coils

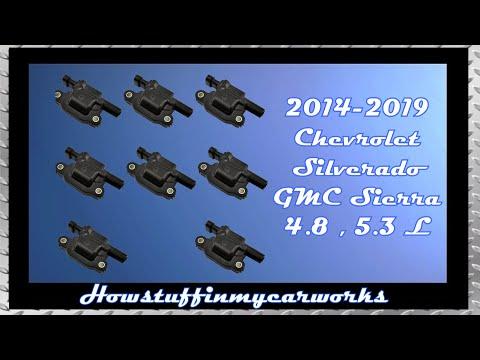

• Each ignition coil is a small rectangular module mounted on a bracket above each cylinder, along the valve covers on both sides of the engine.
• On your 5.3L, there are 4 coils on each side (driver and passenger side), for a total of 8.
• Each coil has an electrical connector and a short plug wire going down to the spark plug.

Step 3: Unplug the electrical connector from the first coil

• Pick one coil to start with, for example, the front coil on the driver side.
• Press down on the plastic locking tab on the coil’s electrical connector with your thumb. If it is tight, gently help it using a small pick tool (specialty).
• While pressing the tab, pull the connector straight off the coil by the plastic housing, not the wires.
• If there is any dirt, wipe around the base of the coil with shop rags.

Step 4: Detach the spark plug wire from the coil

• Grip the rubber boot where the short spark plug wire plugs into the bottom of the coil.
• Twist the boot gently to break it loose, then pull it straight off the coil. Do not pull on the wire itself.
• If the boot is stubborn, you can carefully use needle-nose pliers on the thicker part of the boot, not the wire. Twist before pulling to avoid tearing

Step 5: Remove the ignition coil mounting bolts

• Use a 10mm socket, 3/8" drive extension (3"–6"), and ratchet handle 3/8" to remove the bolts holding that coil to the bracket or valve cover.
• There are usually two small 10mm bolts per coil.
• Keep the bolts in a tray or on a magnet so you do not lose them.

Step 6: Remove the old ignition coil

• Once the bolts are out, lift the coil straight up and away from the bracket.
• Inspect the coil for cracks, burn marks, or corrosion. This confirms it needed replacement.

Step 7: Prepare the new ignition coil

• Compare the new coil to the old one. The connector shape, bolt holes, and overall size must match.
• Apply a tiny amount of dielectric grease inside the new coil’s spark plug wire terminal (where the short wire will slide on). Use only a thin smear

Step 8: Install the new ignition coil

• Position the new coil in place on the bracket, lining up the bolt holes.
• Start the coil mounting bolts by hand to avoid cross-threading the aluminum threads.
• Use the 10mm socket and ratchet handle 3/8" to snug the bolts down evenly.
• Then use the torque wrench 3/8" drive (inch-lb and ft-lb scale) with the 10mm socket to tighten each coil bolt to 10 Nm (89 in-lb).

Step 9: Reattach the spark plug wire to the new coil

• Push the rubber boot of the short spark plug wire firmly onto the new coil’s terminal.
• You should feel or hear a small “click” when it is seated fully.
• Give the boot a gentle tug to confirm it is locked on.

Step 10: Reconnect the electrical connector

• Push the coil’s electrical connector straight onto the new coil until the locking tab clicks.
• Lightly tug the connector to make sure it is locked and cannot pull off easily.

Step 11: Repeat for the remaining coils

• Move to the next coil and repeat Steps 3–10 for each one.
• Work methodically down each bank (one side of the engine), finishing that side before moving to the other.
• Always finish one coil fully before starting the next to avoid mixing connectors or wires.

Step 12: Optional – replace spark plugs while coils are off

• This is easier now because the coil and plug wire are already disconnected.
• Use the correct spark plug socket and extension (not listed above; add if you plan plugs) to remove each plug and install a new one.
• Lightly apply anti-seize compound to plug threads if recommended by the plug maker, then torque each spark plug to 18 Nm (13 ft-lb) using the torque wrench 3/8" drive (inch-lb and ft-lb scale).
• Reattach the plug wire boot to the spark plug firmly, then to the coil as in earlier steps.

Step 13: Reinstall engine cover and reconnect battery

• Place the plastic engine cover back into position, aligning any rubber grommets or locating pins.
• Use the 10mm socket and ratchet handle 3/8" to reinstall and snug the cover bolts. Do not overtighten; just snug is fine.
• Reconnect the negative battery cable using the 10mm socket and tighten until secure. Do not over-tighten.

---

✅ After Repair

• ✅ Start the engine and let it idle. It should run smoothly with no misfires or shaking.
• ✅ Watch the instrument cluster for any check engine light. If one remains, a scan tool can read stored codes.
• ✅ Gently rev the engine a few times while listening for any popping or misfire sounds.
• ✅ Take a short test drive around the block, checking for smooth acceleration and no hesitation.
• ✅ After the drive, open the hood and visually confirm all connectors and wires are still firmly attached.

---

💰 DIY vs Shop Cost

Shop Cost: $450–$750 (parts + labor for all 8 coils)

DIY Cost: $200–$450 (parts only, depending on coil brand)

You Save: $250–$300+ by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours.

---
