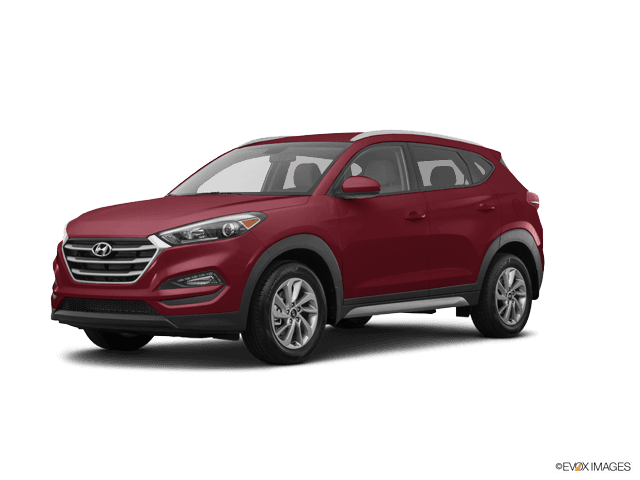

🔧 Tucson - Ignition Coil Replacement

Replacing the ignition coils on your Tucson is a beginner-friendly job. The ignition coils sit on top of the engine and send high voltage to the spark plugs; a bad coil can cause misfires, rough idle, poor acceleration, or a flashing check engine light.

Difficulty Level: Beginner | Estimated Time: 30-60 minutes

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool completely before working near the valve cover and ignition coils.
• ⚠️ Disconnect the negative battery cable before unplugging ignition coils to reduce the risk of electrical shorts.
• ⚠️ Do not pull on the coil wiring. Pull on the connector body only.
• ⚠️ Replace one coil at a time so the connectors stay in the correct positions.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8-inch ratchet
• 3-inch extension
• Torque wrench in inch-pounds
• Plastic trim removal tool
• Small flathead screwdriver
• Needle-nose pliers
• Dielectric grease packet
• Shop towels
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1-4
• Dielectric grease - Qty: 1 packet

Note: If one coil failed from age or mileage, replacing all four is often a good preventive repair. If you are fixing a single misfire code, replace only that cylinder’s coil unless the others are also weak.

---

📋 Before You Begin

• Park your Tucson on level ground and shift to Park.
• Set the parking brake.
• Open the hood and let the engine cool.
• Use a 10mm socket to loosen and disconnect the negative battery cable. Move it aside so it cannot touch the battery post.
• If the check engine light is on, note the misfire code first if available. Cylinder 1 is at the passenger-side end of the engine, then cylinders 2, 3, and 4 move toward the driver side.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Engine Cover

• Use both hands to lift the plastic engine cover straight upward.
• If it feels stuck, use a plastic trim removal tool to gently lift near the rubber mounting points.
• Set the cover aside where it will not get scratched or stepped on.
• Pull upward evenly.

Step 2: Locate the Ignition Coils

• Look across the top of the engine for four identical ignition coils.
• Each coil has one electrical connector and one 10mm retaining bolt.
• An ignition coil is the small electrical unit that sits directly above each spark plug.

Step 3: Unplug the First Ignition Coil

• Put on safety glasses and nitrile gloves.
• Use your thumb to press the release tab on the coil connector.
• If the connector is tight, use a small flathead screwdriver to gently lift the lock tab while pulling the connector straight back.
• Do not pry hard. Old plastic can crack.
• Work one coil at a time.

Step 4: Remove the Coil Retaining Bolt

• Use a 10mm socket, 3-inch extension, and 3/8-inch ratchet to remove the coil retaining bolt.
• Place the bolt on a shop towel so it does not roll away.

Step 5: Remove the Old Ignition Coil

• Hold the coil body and gently twist it left and right.
• Pull the coil straight upward out of the spark plug tube.
• If the rubber boot sticks, keep twisting gently while pulling upward.
• If the rubber boot separates, use needle-nose pliers carefully to remove the boot from the spark plug tube.

Step 6: Inspect the Spark Plug Tube

• Use a shop towel to wipe dirt from around the coil opening.
• Look inside the spark plug tube for engine oil, coolant, or heavy corrosion.
• If oil is present, the valve cover spark plug tube seals may be leaking and should be repaired before installing more new coils.

Step 7: Prepare the New Ignition Coil

• Apply a small amount of dielectric grease inside the rubber boot opening.
• Dielectric grease is a non-conductive grease that helps seal out moisture and makes future removal easier.
• Do not pack the boot full of grease. A thin film is enough.

Step 8: Install the New Ignition Coil

• Slide the new ignition coil straight down into the spark plug tube.
• Press firmly until you feel the boot seat onto the spark plug.
• Line up the coil mounting hole with the bolt hole in the valve cover.

Step 9: Reinstall the Coil Bolt

• Start the 10mm bolt by hand first to avoid cross-threading.
• Use a 10mm socket, 3-inch extension, and torque wrench in inch-pounds to tighten the bolt.
• Torque to 9.8 Nm (87 in-lbs)
• Do not overtighten. The valve cover threads can be damaged.

Step 10: Reconnect the Coil Connector

• Push the electrical connector straight onto the ignition coil until it clicks.
• Gently tug the connector by hand to make sure it is locked.

Step 11: Repeat for Any Other Coils

• Use the same 10mm socket, 3-inch extension, and ratchet to remove each remaining coil bolt one at a time.
• Replace each coil using the same steps.
• Torque each coil bolt to 9.8 Nm (87 in-lbs)

Step 12: Reinstall the Engine Cover

• Line up the engine cover with its rubber mounting points.
• Press down by hand until the cover snaps into place.

Step 13: Reconnect the Battery

• Place the negative battery cable back onto the battery terminal.
• Use a 10mm socket and ratchet to tighten the terminal nut snugly.
• Do not overtighten the battery terminal.

---

✅ After Repair

• Start your Tucson and let it idle for 1-2 minutes.
• Listen for a smooth idle with no shaking or misfire.
• If the check engine light was on, it may turn off after several drive cycles if the misfire is fixed.
• If you have a scan tool, clear the misfire code and road-test the vehicle.
• Drive gently at first and confirm normal acceleration.
• If the engine still misfires, inspect the spark plugs, coil connectors, wiring, and fuel injector operation.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$650 depending on whether one coil or all four are replaced

DIY Cost: $45-$320 for parts only

You Save: $100-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hour.

---
