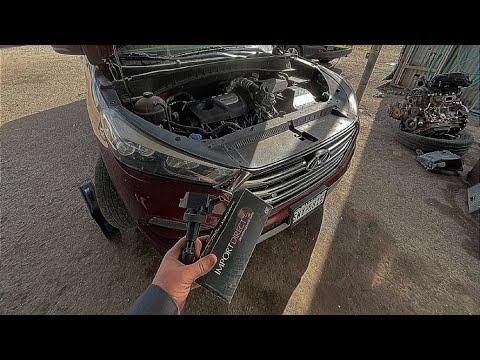

🔧 Tucson - Ignition Coil Replacement

On your Tucson, each cylinder has its own ignition coil (coil-on-plug). Replacing a weak/bad coil restores smooth running, fixes misfires, and can turn off a flashing/steady check-engine light caused by misfire codes.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine to avoid burns.
• ⚠️ Keep the ignition OFF and the key/fob away from the vehicle while unplugging coils.
• ⚠️ Do not pull on wiring—only press the connector tab and pull the connector body.
• ⚠️ Battery disconnect is not required, but if you’re nervous about electrical connectors, disconnect the negative terminal first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 3" socket extension (1/4")
• Torque wrench (inch-pound or small Nm range)
• Flat trim tool
• Pick tool (small)
• 10mm wrench
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1-4
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool fully.
• If disconnecting the battery: use a 10mm wrench to remove the negative terminal and isolate it so it can’t spring back.
• Decide how many coils you’re replacing (one bad coil, or all four).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Use a flat trim tool to gently lift the cover if it’s tight.
• Pull the cover straight up to release the rubber grommets, then set it aside.

Step 2: Locate the ignition coils

• The coils sit on top of the valve cover in a row (one per cylinder), each with an electrical connector.

Step 3: Unplug the coil electrical connector

• Press the locking tab on the connector and pull the connector straight back.
• If the tab is stubborn, use a pick tool (small) to gently help lift the lock. Don’t pry hard—plastic breaks easily.

Step 4: Remove the coil hold-down bolt

• Use a 10mm socket, 3" socket extension (1/4"), and 1/4" drive ratchet to remove the bolt that holds the coil down.
• Set the bolt somewhere safe so it doesn’t drop into the engine bay.

Step 5: Remove the ignition coil

• Twist the coil slightly by hand to break the seal, then pull it straight upward.
• If it feels stuck, keep a straight pull—don’t bend it sideways.

Step 6: Install the new ignition coil

• Put a tiny smear of dielectric grease inside the rubber boot (the rubber end). Dielectric grease is a non-conductive grease that helps prevent moisture and makes future removal easier.
• Push the coil straight down until you feel it fully seat onto the spark plug.

Step 7: Reinstall and torque the coil bolt

• Start the bolt by hand first to avoid cross-threading.
• Use a torque wrench and 10mm socket to tighten the coil bolt: Torque to 9.8 Nm (7.2 ft-lbs).

Step 8: Plug the connector back in

• Push the connector on until you hear/feel the click.
• Give it a gentle tug to confirm it’s locked.

Step 9: Repeat for any other coils you’re replacing

• Repeat Steps 3-8 for each remaining coil.

Step 10: Reinstall the engine cover

• Line up the cover with the mounting points and press straight down until it snaps into the grommets.
• If you disconnected the battery, reconnect the negative terminal using a 10mm wrench.

---

✅ After Repair

• Start the engine and let it idle for 1-2 minutes. It should run smooth with no shaking.
• If the check-engine light was on, it may take a few drive cycles to turn off, or you can clear codes with a scan tool.
• Test drive 10-15 minutes and recheck for any warning lights or hesitation.
• If you still have a misfire, the issue may be the spark plug, injector, or wiring on that cylinder.

---

💰 DIY vs Shop Cost

Shop Cost: ₹4,500-₹14,000 (parts + labor, depending on 1 coil vs all 4)

DIY Cost: ₹2,500-₹11,000 (parts only)

You Save: ₹2,000-₹5,000 by doing it yourself!

Labor rates around Panipat commonly run about ₹800-₹1,500/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
