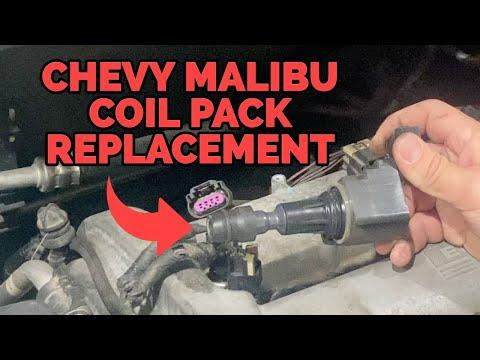

🔧 Malibu - Ignition Coil Replacement

Your Malibu’s ignition coils sit on top of the engine and create the high-voltage spark needed to run smoothly. Replacing a weak or failed coil can fix misfires, rough idle, flashing check-engine light, and loss of power.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool fully before starting; coils sit near hot parts.
• ⚠️ Disconnect the negative battery cable to prevent accidental shorts.
• ⚠️ Don’t pull on wiring; press the connector lock, then pull the plug.
• ⚠️ If the check-engine light was flashing, avoid driving hard until repaired.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8" ratchet
• 3" extension
• Torque wrench (in-lb or Nm)
• Trim removal tool
• Flathead screwdriver
• 10mm wrench
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 4
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool down completely.
• Use a 10mm wrench to disconnect the negative battery terminal and position it so it can’t spring back.
• Take a quick photo of connector routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Use a trim removal tool to lift at the corners, then pull the cover straight up to release the rubber grommets.
• Set the cover aside where it won’t get stepped on.

Step 2: Locate the ignition coils

• The coils are the 4 identical modules on top of the valve cover, each with an electrical connector.

Step 3: Unplug the coil electrical connectors

• Press the connector lock tab (use a flathead screwdriver gently if needed), then pull the connector straight off.
• If it’s stuck, wiggle the connector—don’t yank.

Step 4: Remove the ignition coil hold-down bolts

• Use a 10mm socket, 3" extension, and 3/8" ratchet to remove the bolt holding each coil.
• Keep the bolts together so none fall into the engine bay.

Step 5: Remove the ignition coils

• Grab the coil body and twist slightly, then pull straight up to remove it from the spark plug tube.
• If a coil is stubborn, use gentle rocking—do not pry on the valve cover.

Step 6: Install the new ignition coils

• Apply a very small dab of dielectric grease inside the new coil boot.
• Push the coil straight down until it fully seats on the spark plug.
• Reinstall the hold-down bolt by hand first (prevents cross-threading).
• Use a torque wrench (in-lb or Nm) and 10mm socket: Torque to 10 Nm (89 in-lbs).

Step 7: Reconnect the electrical connectors

• Push each connector on until it clicks/locks.
• Do a quick tug check to confirm it’s secure.

Step 8: Reinstall the engine cover

• Align the cover with the mounting points and press down firmly at each corner until it snaps into the grommets.

Step 9: Reconnect the battery

• Use a 10mm wrench to reinstall and tighten the negative battery terminal.

---

✅ After Repair

• Start the engine and let it idle for 1-2 minutes; it should run smooth.
• If you had a check-engine light, clear codes with a scan tool if available, then recheck after a short drive.
• Test drive 10-15 minutes and confirm no flashing check-engine light or misfire feel.
• If misfire remains, the next common step is spark plug inspection/replacement.

---

💰 DIY vs Shop Cost

Shop Cost: ₹8,000-₹18,000 (parts + labor)

DIY Cost: ₹5,000-₹14,000 (parts only)

You Save: ₹3,000-₹6,000 by doing it yourself!

Shop labor rates vary but typically run ₹800-₹1,500/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
