🔧 Mazda3 - Ignition Coil Replacement

Ignition coils sit on top of the spark plugs and create the high voltage needed for the engine to run smoothly. Replacing a bad coil can fix misfires, rough running, and flashing check engine lights.

Difficulty Level: Beginner | Estimated Time: 0.5-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine to avoid burns.
• ⚠️ Turn the ignition fully OFF and keep the key/fob away from the car while working.
• ⚠️ If you disconnect the battery, you may lose radio presets.
• ⚠️ Do not pull on wires—only on connectors and housings.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" socket extension (1/4")
• Torque wrench (inch-pound or small Nm range)
• Small flat-blade screwdriver
• Dielectric grease applicator (small brush or cotton swab)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1 (or Qty: 4 if replacing all)
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park your Mazda3 on level ground and set the parking brake.
• Let the engine cool fully (coils sit on the hot cylinder head).
• If you want maximum safety: disconnect the negative battery terminal using a 10mm socket.
• Tip: Replace coils one at a time.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Lift the plastic engine cover straight up with your hands to release the rubber grommets.
• Set the cover aside where it won’t get stepped on.

Step 2: Locate the ignition coils

• Find the row of coils on top of the engine (one coil per cylinder).
• Each coil has an electrical connector and one small hold-down bolt.

Step 3: Unplug the coil electrical connector

• Press the connector lock tab by hand; if it’s stuck, gently help it with a small flat-blade screwdriver.
• Pull the connector straight back (do not pull on the wires).
• Tip: Wiggle the plug—don’t force it.

Step 4: Remove the coil hold-down bolt

• Use a 10mm socket, 6" extension, and 1/4" drive ratchet to remove the bolt.
• Place the bolt somewhere safe so it doesn’t fall into the engine bay.

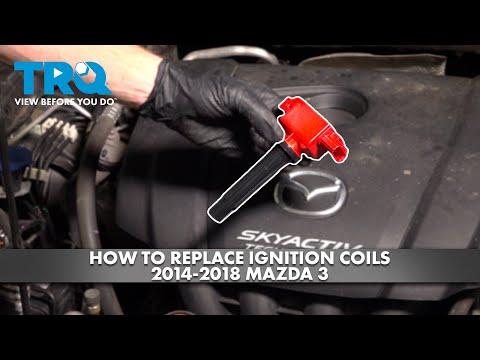

Step 5: Remove the ignition coil

• Grab the coil body and twist gently left-right to break the seal.
• Pull the coil straight up and out of the spark plug tube.

Step 6: Install the new ignition coil

• Apply a very small amount of dielectric grease inside the new coil boot (the rubber end that goes over the spark plug). Dielectric grease is a non-conductive grease that helps prevent moisture and makes future removal easier.
• Push the new coil straight down until it fully seats.

Step 7: Reinstall the coil bolt and torque it

• Start the bolt by hand a few turns to avoid cross-threading.
• Use a 10mm socket to snug it.
• Use a torque wrench: Torque to 8.5 Nm (75 in-lbs).

Step 8: Plug the connector back in

• Push the connector on until it clicks/locks.
• Gently tug it to confirm it’s latched.

Step 9: Repeat for other coils (if replacing more than one)

• Repeat Steps 3–8 for each cylinder.
• Tip: One-at-a-time prevents mix-ups.

Step 10: Reinstall the engine cover and reconnect battery (if removed)

• Press the engine cover back onto its grommets by hand.
• If disconnected, reconnect the negative battery terminal using a 10mm socket and ensure it’s snug.

---

✅ After Repair

• Start the engine and let it idle for 1–2 minutes. It should run smooth.
• If the check engine light was on, use an OBD2 scanner to clear codes and confirm the misfire does not return.
• Test drive 10–15 minutes and recheck for any warning lights.
• If it still misfires, the issue may be a spark plug, injector, vacuum leak, or wiring/connector problem.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$550 (parts + labor, depending on 1 coil vs all 4)

DIY Cost: $40-$320 (parts only, depending on 1 coil vs all 4)

You Save: $160-$230+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.2 hours.

---
