🔧 Camry - Ignition Coil Replacement

Your Camry uses coil-on-plug ignition coils—one coil per cylinder—mounted on top of the valve cover. Replacing a weak coil can fix misfires, rough idle, flashing check-engine light, and poor power.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine to avoid burns.
• ⚠️ Keep hands/tools away from orange high-voltage cables and hybrid components.
• ⚠️ Disconnect the 12V battery negative terminal before unplugging ignition connectors.
• ⚠️ Do not pull on wiring—release the connector lock first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" socket extension
• Torque wrench (inch-pound or low-range Nm)
• Flat trim tool
• Needle-nose pliers
• Shop light
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1 (or Qty: 4 if replacing all)
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground and turn the car OFF.
• Open the hood and let the engine fully cool.
• Disconnect the 12V battery negative terminal using a 10mm socket.
• Take a quick photo of connectors before unplugging.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Lift the cover straight up by hand; if it’s clipped, gently pry with a flat trim tool.

Step 2: Locate the ignition coils

• Use a shop light to find the row of ignition coils on top of the valve cover (one per cylinder).
• Each coil has an electrical connector and a small hold-down bolt.

Step 3: Unplug the coil electrical connector

• Press the connector lock tab with your fingers or a flat trim tool, then pull the connector straight back.
• If the tab is stubborn, use needle-nose pliers gently on the tab only (not the wires).

Step 4: Remove the coil hold-down bolt

• Use a 10mm socket, 1/4" ratchet, and 6" socket extension to remove the bolt.
• Set the bolt aside where it won’t fall into the engine bay.

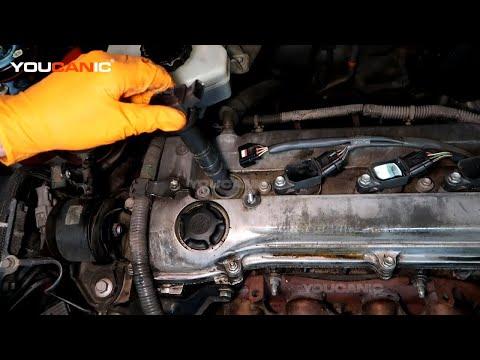

Step 5: Pull the ignition coil out

• Grab the coil and twist it slightly left-right to break the seal, then pull straight up.
• Twist first—don’t yank hard.

Step 6: Prep and install the new coil

• Apply a small dab of dielectric grease inside the rubber boot. (Dielectric grease helps prevent moisture and makes future removal easier.)
• Push the new coil straight down until it fully seats on the spark plug.

Step 7: Reinstall the hold-down bolt and torque it

• Start the bolt by hand to avoid cross-threading.
• Tighten with a 10mm socket and then use a torque wrench: Torque to 9 Nm (80 in-lbs).

Step 8: Plug the connector back in

• Push the connector on until it clicks/locks.

Step 9: Repeat for other cylinders (if replacing more than one)

• Do one coil at a time so connectors don’t get mixed up.
• Replacing all four is most consistent.

Step 10: Reconnect the 12V battery and reinstall the engine cover

• Reconnect the 12V battery negative terminal using a 10mm socket.
• Reinstall the engine cover by pressing it back into place by hand.

---

✅ After Repair

• Start your Camry and let it idle for 1-2 minutes. It should run smooth.
• If you had a flashing check-engine light before, confirm it is gone.
• If the check-engine light stays on, you may need to clear the code after the repair.
• Road test for 10 minutes with gentle acceleration and verify no hesitation.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$500 (parts + labor)

DIY Cost: $50-$320 (parts only, depending on replacing 1 vs all 4)

You Save: $150-$180 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
