🔧 X5 - Ignition Coil Replacement

Ignition coils sit on top of the spark plugs and create the high-voltage spark your engine needs to run smoothly. Replacing a weak coil can fix misfires, rough idle, and flashing check-engine light issues.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

Assumption: your X5 uses the common N55 coil-on-plug setup with push-in coils.

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool fully; the turbo area gets very hot.
• ⚠️ Disconnect the negative battery cable if you’ll be unplugging multiple connectors (recommended for beginners).
• ⚠️ Do not pull on wiring; always pull on the connector body.
• ⚠️ Keep dirt out of the spark plug holes—debris can damage the engine.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Torx T20 socket
• Torx T25 socket
• Trim removal tool (plastic)
• Small flat-blade screwdriver
• Torque wrench (inch-pound, 20–200 in-lb)
• Compressed air nozzle
• Shop light
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1 (or Qty: 6 if replacing all)
• Dielectric grease - Qty: 1 (small packet)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and remove the engine cover area items so you have good access.
• If disconnecting the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back. (Negative terminal is the one with “-”.)
• Have your new coil(s) unboxed and ready so nothing falls into the engine.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and access panels

• Lift off the main engine cover by pulling straight up with both hands (it’s held by rubber grommets).
• If your cover has small fasteners: remove them using a Torx T20 socket or Torx T25 socket.
• Use a trim removal tool (plastic) to pop any clips without breaking them.

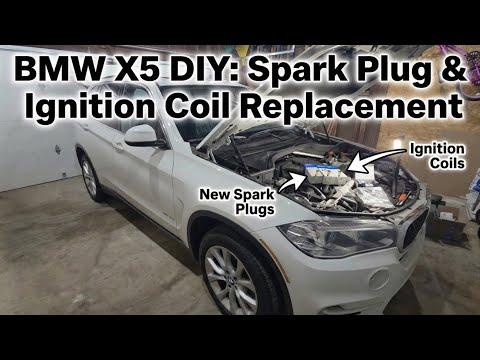

Step 2: Locate the ignition coils

• The coils are the 6 identical “sticks” lined up on top of the valve cover (one per cylinder).
• Blow out the area around each coil using a compressed air nozzle so dirt doesn’t fall into the plug hole.

Step 3: Unplug the electrical connector

• Each coil has a locking connector. Use a small flat-blade screwdriver only if needed to gently help lift the lock.
• Pull the connector off by holding the connector body (not the wires).
• Take a quick photo first.

Step 4: Remove any coil retaining bolt (if equipped)

• Some versions use a small hold-down bolt/bracket at the top of the coil.
• If present, remove it using a 10mm socket with a 1/4" drive ratchet and 3" extension.
• During install: Torque to 5 Nm (44 in-lb).

Step 5: Remove the coil

• Twist the coil gently left-right to break it loose, then pull straight up.
• If it’s stuck, keep twisting gently—do not pry hard on the valve cover.

Step 6: Prep and install the new coil

• Put a tiny dab of dielectric grease inside the coil boot (the rubber end). This helps sealing and future removal.
• Line the coil up straight with the spark plug hole and press down firmly until it seats fully.
• If there was a hold-down bolt, reinstall it with a 10mm socket and torque wrench: Torque to 5 Nm (44 in-lb).

Step 7: Reconnect the coil connector

• Push the connector on until it clicks/locks.
• Do a gentle tug test to confirm it’s fully latched.

Step 8: Reinstall the engine cover

• Reinstall any fasteners using a Torx T20 socket or Torx T25 socket.
• Press the engine cover down onto its grommets until it snaps in place.
• If you disconnected the battery, reconnect it using a 10mm socket (snug, do not overtighten).

---

✅ After Repair

• Start the engine and let it idle for 1–2 minutes. It should run smooth with no shaking.
• If the check-engine light was flashing before, it should stop flashing immediately once the misfire is fixed.
• If the check-engine light stays on, the code may need clearing (a simple OBD2 scanner can do this).
• Test drive 10–15 minutes and recheck for roughness under acceleration.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$650 (parts + labor, depends if 1 coil or all 6)

DIY Cost: $45-$420 (parts only, depends on coil count/brand)

You Save: $150-$300+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
