🔧 Tucson - Ignition Coil Replacement

Replacing the ignition coils on your Tucson is a beginner-friendly repair. The ignition coils sit on top of the engine and send high voltage to the spark plugs so the engine can run smoothly.

If your Tucson has misfires, rough idle, poor acceleration, or a flashing check engine light, a weak ignition coil may be the cause.

Difficulty Level: Beginner | Estimated Time: 30-60 minutes

---

⚠️ Safety & Precautions

• ⚠️ Work only with the engine completely cool to avoid burns.
• ⚠️ Disconnect the negative battery cable before unplugging ignition coils.
• ⚠️ Do not pull on the coil wiring harness; pull only on the connector body.
• ⚠️ Ignition coils produce high voltage when operating, so never handle them with the engine running.
• ⚠️ Keep dirt and debris out of the spark plug wells.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive 6-inch extension
• Plastic trim removal tool
• Torque wrench inch-pound range
• Compressed air blow gun
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1-4
• Dielectric grease - Qty: 1 tube

Note: Replace only the failed coil if diagnosing one cylinder. Replace all four if the coils are original and mileage is high.

---

📋 Before You Begin

• 🚗 Park your Tucson on level ground and shift to Park.
• 🅿️ Set the parking brake.
• 🌡️ Let the engine cool fully before opening the ignition system.
• 🔋 Use a 10mm socket to loosen the negative battery terminal, then move the cable aside so it cannot touch the post.
• 🧰 A torque wrench tightens bolts accurately. This helps prevent cracking plastic parts or stripping small bolts.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open the hood and disconnect the battery

• Use the hood release inside the cabin, then open and support the hood.
• Use a 10mm socket and 3/8-inch drive ratchet to loosen the negative battery terminal nut.
• Lift the negative cable off the battery post and place it where it cannot spring back.
• Black cable is negative.

Step 2: Remove the engine appearance cover

• The plastic engine cover sits on top of the engine.
• Use your hands to pull the cover straight upward from its rubber mounting grommets.
• If it feels stuck, use a plastic trim removal tool gently at the edges.
• Set the cover aside where it will not be stepped on.

Step 3: Locate the ignition coils

• The ignition coils are the four black coil units lined up across the top of the engine.
• Each coil has one electrical connector and one small mounting bolt.
• Use compressed air blow gun to blow dust away from the coil area before removal.
• Clean first, remove second.

Step 4: Disconnect the coil electrical connector

• Press the locking tab on the coil connector with your thumb.
• If the tab is tight, use a plastic trim removal tool to gently help depress the lock.
• Pull the connector straight back from the ignition coil.
• Do not pull on the wires.

Step 5: Remove the ignition coil bolt

• Use a 10mm socket, 3/8-inch drive 6-inch extension, and 3/8-inch drive ratchet to remove the coil mounting bolt.
• Place the bolt in a safe spot so it does not fall into the engine bay.

Step 6: Remove the old ignition coil

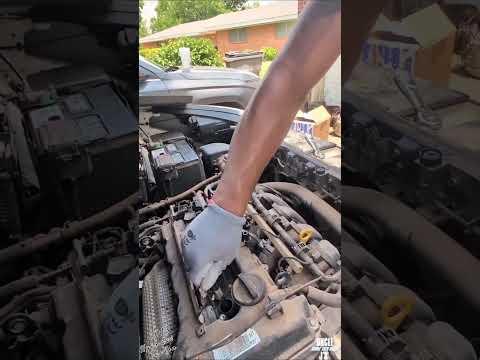

• Grip the top of the ignition coil by hand.
• Twist it gently left and right to loosen the rubber boot.
• Pull the coil straight upward out of the spark plug well.
• If it sticks, keep twisting gently; do not pry hard against the valve cover.

Step 7: Inspect the coil and spark plug well

• Use safety glasses before blowing air into the area.
• Use a compressed air blow gun to clear loose dirt from the spark plug well.
• Check the old coil boot for oil, coolant, cracking, or white burn marks.
• If the well is oily, the valve cover gasket may also need repair.

Step 8: Prepare the new ignition coil

• Apply a small pea-sized amount of dielectric grease inside the end of the new coil boot.
• Dielectric grease is an electrical-safe silicone grease that helps seal out moisture and makes future removal easier.
• Do not pack the boot full of grease.
• A tiny amount is enough.

Step 9: Install the new ignition coil

• Slide the new ignition coil straight down into the spark plug well by hand.
• Push down gently until you feel the boot seat onto the spark plug.
• Install the mounting bolt by hand first to avoid cross-threading.
• Use a 10mm socket, 3/8-inch drive 6-inch extension, and torque wrench inch-pound range to tighten the bolt.
• Torque to 8 Nm (71 in-lbs)

Step 10: Reconnect the coil electrical connector

• Push the electrical connector straight onto the ignition coil until it clicks.
• Lightly tug the connector body by hand to confirm it is locked.

Step 11: Repeat for the remaining coils if replacing all four

• Use the same steps for each ignition coil.
• Replace one coil at a time so connectors and coils do not get mixed up.
• Use the 10mm socket, 3/8-inch drive ratchet, and torque wrench inch-pound range for each coil bolt.
• Torque each coil bolt to 8 Nm (71 in-lbs)

Step 12: Reinstall the engine cover and reconnect the battery

• Place the engine cover over its rubber mounts.
• Press down firmly by hand until it snaps into place.
• Reconnect the negative battery cable to the battery post.
• Use a 10mm socket and 3/8-inch drive ratchet to snug the terminal nut.
• Torque to 5 Nm (44 in-lbs)

---

✅ After Repair

• ✅ Start your Tucson and let it idle for 1-2 minutes.
• ✅ Listen for smooth idle and confirm there is no shaking or misfire.
• ✅ If the check engine light was on, clear codes with a scan tool after confirming the repair.
• ✅ Test drive gently for 10-15 minutes and make sure acceleration feels smooth.
• ✅ If the check engine light flashes, stop driving and recheck coil connectors immediately.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$650 (parts + labor)

DIY Cost: $40-$320 (parts only)

You Save: $140-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
