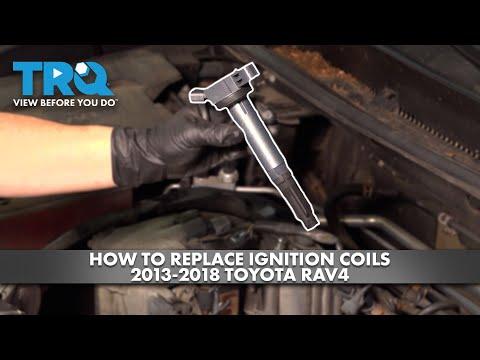

🔧 Ignition Coils - Replacement

Your RAV4 uses four coil-on-plug ignition coils, one per cylinder. Replacing a weak coil can fix misfires, rough idle, poor fuel economy, and check engine light codes related to ignition faults.

Difficulty Level: Beginner | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• Hybrid engine systems can start automatically. Keep the vehicle fully OFF before working.
• Set the parking brake and keep the key fob away from the vehicle.
• Disconnect the negative 12V battery cable before removing coils. The 12V battery on a hybrid controls engine electronics and prevents accidental starts.
• Let the engine cool before touching coils or the ignition area.
• Do not pull on the coil wiring harness. Release the connector lock first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4-inch ratchet
• 1/4-inch extension
• Torque wrench
• Trim tool
• Needle-nose pliers
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 4
• Ignition coil rubber boot - Qty: 4
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Shift to PARK and turn the vehicle fully OFF.
• Wait at least 5 minutes before disconnecting the 12V battery.
• Open the hood and remove the engine cover if equipped.
• Disconnect the negative 12V battery terminal with a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Lift the plastic engine cover straight up by hand.
• If it feels stuck, wiggle gently. Do not pry hard.

Step 2: Disconnect the 12V battery

• Use a 10mm socket and 1/4-inch ratchet to loosen the negative battery terminal.
• Move the cable aside so it cannot spring back and touch the post.
• Tip: Wrap the cable end with a rag.

Step 3: Remove the coil connector

• Find the ignition coil on top of each spark plug.
• Use your fingers or needle-nose pliers to release the connector lock if needed.
• Press the tab and pull the connector straight off the coil.

Step 4: Remove the ignition coil

• Use a 10mm socket, 1/4-inch ratchet, and 1/4-inch extension to remove the coil hold-down bolt.
• Pull the coil straight up and out.
• If it resists, twist it slightly while pulling upward.

Step 5: Install the new coil

• Apply a small amount of dielectric grease inside the coil boot.
• Push the new coil straight down onto the spark plug until fully seated.
• Install the hold-down bolt by hand first.
• Torque to 7.8 Nm (69 in-lbs).

Step 6: Reconnect the coil harness

• Push the electrical connector onto the coil until it clicks.
• Check that the connector lock is fully engaged.

Step 7: Repeat for the remaining coils

• Replace all four coils if mileage is high or multiple misfire codes are present.
• Use the same steps for each cylinder.

Step 8: Reconnect power and reinstall the cover

• Reconnect the negative 12V battery terminal with a 10mm socket.
• Install the engine cover by pressing it straight down.

---

✅ After Repair

• Start the vehicle and let it idle.
• Confirm the check engine light is off.
• If a scan tool is available, clear misfire codes and confirm none return.
• Listen for smooth idle and no shaking.
• If the same misfire returns on one cylinder, inspect the spark plug and injector next.

---

💰 DIY vs Shop Cost

Shop Cost: $280-$650 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $200-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
