🔧 Grand Cherokee - Ignition Coil Replacement

Your Grand Cherokee uses individual ignition coils (one per spark plug) to create the high voltage needed to fire the plugs. Replacing a weak or failed coil can fix misfires, rough idle, and flashing check-engine lights.

Difficulty Level: Beginner | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool completely to avoid burns.
• ⚠️ Disconnect the negative battery cable to prevent accidental shorts.
• ⚠️ Do not pull on wiring; unplug connectors by the tab.
• ⚠️ Keep dirt out of the spark plug wells (the deep holes the coils sit in).

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Torque wrench (inch-pound)
• Small flathead screwdriver
• Shop air blow gun
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1 (or Qty: 8 if replacing all)
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool.
• Use a 10mm socket to disconnect the negative battery cable and move it aside.
• If your check-engine light was flashing (active misfire), avoid driving until repaired.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Use a flashlight to locate the plastic engine cover on top of the engine.
• Remove any fasteners with a 10mm socket (some covers pull upward off grommets).
• Lift the cover off and set it aside.

Step 2: Locate the coil you’re replacing

• Each cylinder has a “coil-on-plug” unit (a small module that sits directly on the spark plug).
• Use a flashlight to find the coil on the valve cover area with an electrical connector going to it.

Step 3: Clean around the coil

• Use a shop air blow gun to blow debris away from the coil and spark plug well.
• Keeping dirt out prevents plug-well contamination.

Step 4: Unplug the coil electrical connector

• Use a small flathead screwdriver to gently lift the connector lock tab (if present).
• Press the release tab and pull the connector straight off by hand (not by the wires).

Step 5: Remove the coil retaining bolt

• Use a 10mm socket with a 1/4" drive ratchet and 6" extension to remove the coil bolt.
• Set the bolt aside so it doesn’t get lost.

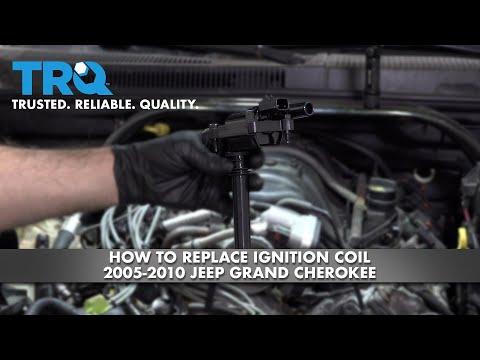

Step 6: Remove the ignition coil

• Twist the coil slightly by hand to break it loose, then pull it straight up and out.
• If it feels stuck, keep twisting gently—don’t pry hard on the valve cover.

Step 7: Prep and install the new coil

• Apply a small smear of dielectric grease inside the rubber boot of the new coil (this helps sealing and future removal).
• Push the coil straight down into the spark plug well until it fully seats.

Step 8: Reinstall the coil bolt and torque it

• Thread the bolt in by hand first to avoid cross-threading.
• Use a torque wrench (inch-pound) to tighten the coil bolt: Torque to 9 Nm (80 in-lbs).

Step 9: Reconnect the coil connector

• Push the connector on until it clicks.
• If there’s a lock tab, use a small flathead screwdriver to set it back in place.

Step 10: Reinstall engine cover and reconnect the battery

• Reinstall the engine cover and tighten fasteners with a 10mm socket (snug, do not over-tighten).
• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Start the engine and let it idle for 1–2 minutes. It should run smooth.
• If the check-engine light was on, it may take a few drive cycles to clear, or you can clear codes with a scan tool.
• Test drive for 10–15 minutes and re-check for misfire, hesitation, or a flashing light.
• If misfire remains on the same cylinder, the spark plug or injector may be the cause.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$900 (parts + labor, depends on how many coils)

DIY Cost: $40-$480 (parts only)

You Save: $210-$420+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
