🔧 Sienna - Ignition Coil Replacement

On your Sienna, each cylinder has its own ignition coil (coil-on-plug). Replacing a failed coil restores smooth running and prevents misfires that can damage the catalytic converter.

Difficulty Level: Intermediate | Estimated Time: 1.0-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool fully before starting (burn risk).
• ⚠️ Disconnect the negative battery cable to avoid accidental short circuits.
• ⚠️ Do not pull on wiring—only on connectors and housings.
• ⚠️ Keep dirt out of the intake and spark plug tubes (debris can cause misfires).

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 8mm socket
• 1/4" drive ratchet
• 3/8" drive ratchet
• 6" extension (1/4" drive)
• 10" extension (3/8" drive)
• Torque wrench (inch-pound)
• Torque wrench (foot-pound)
• Flathead screwdriver
• Trim clip remover
• Needle-nose pliers
• Shop light
• Painter’s tape
• Clean shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1-6
• Upper intake manifold gasket set - Qty: 1
• Throttle body gasket - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and remove the engine cover (it pulls up once the fasteners are released).
• Disconnect the battery: use a 10mm socket to remove the negative terminal and tuck it aside.
• Use painter’s tape to label any vacuum hoses/connectors you unplug so they go back to the same spot.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which coils you’re replacing

• If you’re replacing just one coil due to a misfire code, identify the cylinder first (example: P0302 = cylinder 2). If you want, tell me your code(s) and I’ll map them to the cylinder location on your Sienna.
• Replace coils only as needed, unless advised.

Step 2: Remove the air intake tube to create space

• Use an 8mm socket or flathead screwdriver to loosen the hose clamps on the intake tube.
• Unplug the sensor connector(s) by pressing the lock tab, then pull the connector straight off.
• Lift the intake tube/air duct out and set it aside.

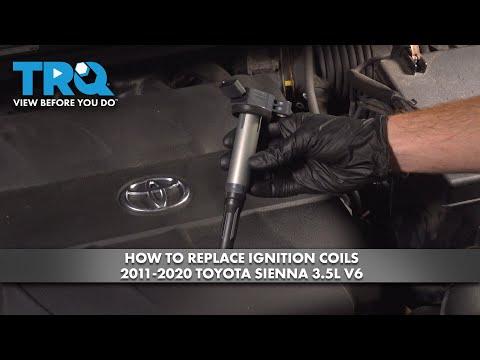

Step 3: Replace any front-bank ignition coils (easy access)

• Unplug the coil electrical connector (press the tab, then pull straight back).
• Use a 10mm socket and 1/4" drive ratchet to remove the coil hold-down bolt.
• Twist the coil slightly, then pull it straight up out of the spark plug tube.
• Apply a tiny amount of dielectric grease inside the coil boot.
• Install the new coil fully seated, then reinstall the hold-down bolt: Torque to 9 Nm (80 in-lb).
• Reconnect the coil connector until it clicks.

Step 4: Access the rear-bank ignition coils (upper intake removal)

• The rear coils sit under the upper intake. Cover open ports with clean shop towels as soon as anything opens.
• Disconnect any vacuum hoses and electrical connectors attached to the upper intake (label them with painter’s tape).
• Remove the upper intake fasteners using a 10mm socket, ratchet, and extension.
• Lift the upper intake off carefully and set it on a clean surface.
• Remove and discard the old upper intake gaskets. Do not reuse them.

Step 5: Replace the rear-bank ignition coils

• Unplug each coil connector (press the tab, pull straight off).
• Use a 10mm socket to remove the coil hold-down bolt.
• Pull the coil straight up and out.
• Apply a small amount of dielectric grease inside the boot.
• Install the new coil and tighten the hold-down bolt: Torque to 9 Nm (80 in-lb).
• Reconnect each connector until it clicks.

Step 6: Reinstall the upper intake and throttle body connection

• Install new upper intake gaskets onto the intake runners (make sure each gasket is fully seated in its groove).
• Set the upper intake back into place without pinching any hoses.
• Hand-thread all fasteners first, then tighten evenly in a crisscross pattern using a 10mm socket.
• Tighten upper intake fasteners: Torque to 21 Nm (15 ft-lb).
• If you removed the throttle body, install a new gasket and tighten the throttle body bolts using a 10mm socket: Torque to 10 Nm (89 in-lb).

Step 7: Reinstall the air intake tube and reconnect the battery

• Reinstall the intake tube and tighten clamps using an 8mm socket or flathead screwdriver.
• Reconnect any unplugged sensor connectors (listen/feel for the click).
• Reconnect the negative battery terminal using a 10mm socket.

---

✅ After Repair

• Start the engine and let it idle for 1-2 minutes. It should run smooth with no shaking.
• Listen for air leaks (hissing). If you hear one, recheck intake tube clamps and any vacuum hoses.
• If you had a check-engine light, clear codes with a scan tool and confirm they don’t return after a short test drive.
• Recheck that no tools or towels are left in the engine bay.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$900 (parts + labor)

DIY Cost: $60-$480 (parts only)

You Save: $190-$420 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-3 hours.

---
