🔧 Ignition Coils - Replacement

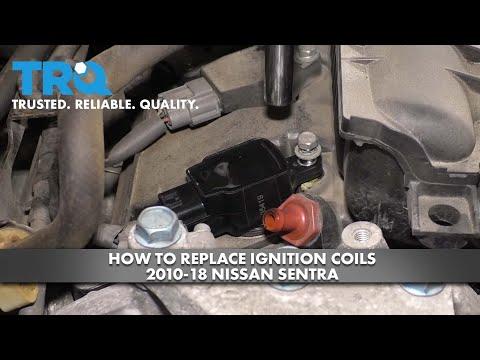

Your Sentra uses four individual ignition coils mounted on top of the engine. Replacing them is straightforward: unplug each coil, remove the retaining bolts, swap the coils, then reinstall everything carefully so the connectors and boots seat fully.

Difficulty Level: Beginner | Estimated Time: 0.5-1 hour

---

⚠️ Safety & Precautions

• Work on a cool engine only. The valve cover and coils can get hot.
• Turn the ignition off and remove the key/fob before starting.
• Do not pull on the spark plug wires; this engine uses coil-on-plug units with electrical connectors.
• Keep dirt out of the spark plug wells. Debris can fall into the cylinders if the coils are removed.
• Battery disconnect is not required, but disconnecting the negative terminal is a good extra safety step if you want to avoid accidental shorts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet
• Small extension
• Flat trim tool or small pick
• Torque wrench
• Gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 4

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool completely.
• Open the hood and remove any engine cover if equipped.
• If you are replacing only one coil, it is still smart to inspect the other three for cracks, oil, or loose boots.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• If equipped, lift the engine cover straight up by hand. Some covers are held by rubber grommets.
• If it feels stuck, wiggle it gently rather than prying hard.

Step 2: Unplug the ignition coil connector

• Use a flat trim tool or small pick to release the lock tab on each coil connector.
• Press the connector tab and pull the plug straight back.
• Do not yank the wires.

Step 3: Remove the coil hold-down bolt

• Use a 10mm socket, ratchet, and small extension to remove the bolt from the coil.
• Repeat for each coil you are replacing.
• Torque to 8 N·m (71 in-lbs) on installation.

Step 4: Remove the ignition coil

• Twist the coil gently left and right, then pull it straight up out of the spark plug well.
• If it resists, keep twisting lightly until the rubber boot releases.
• Pull straight up to avoid boot damage.

Step 5: Install the new ignition coil

• Compare the old and new coil to make sure they match.
• Slide the new coil straight down into the spark plug well until it seats fully.
• Install the hold-down bolt by hand first, then tighten with the 10mm socket.
• Torque to 8 N·m (71 in-lbs).

Step 6: Reconnect the electrical connector

• Push each connector on until it clicks.
• Make sure the lock tab is fully engaged.

Step 7: Repeat for the remaining coils

• Work one cylinder at a time so parts do not get mixed up.
• If replacing all four, complete the same process for each coil.

Step 8: Reinstall the engine cover

• Line up the cover with its mounting points and press it down evenly.
• Make sure it sits flat and does not pinch any wiring.

---

✅ After Repair

• Start the engine and let it idle.
• Listen for a smooth idle and check that the check engine light is off.
• If the engine still runs rough, scan for misfire codes before driving.
• Take a short test drive and confirm normal acceleration.

---

💰 DIY vs Shop Cost

Shop Cost: $280-$520 (parts + labor)

DIY Cost: $120-$260 (parts only)

You Save: $160-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1 hour.

---
