🔧 Santa Fe - Ignition Coil Replacement

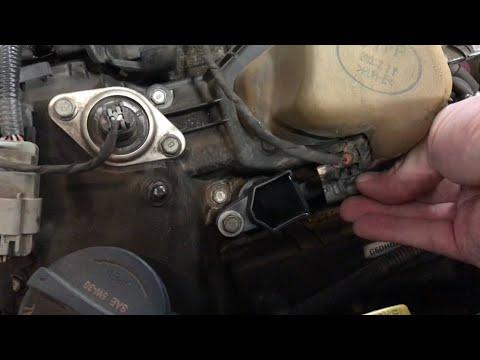

Ignition coils sit on top of the spark plugs and create the high voltage needed to fire the plugs. Replacing a weak coil can fix misfires, rough idle, and flashing check-engine lights.

Difficulty Level: Intermediate | Estimated Time: 1.0-3.0 hours

Assumption: Your 3.3L V6 may require upper intake removal to reach the rear coils.

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; the rear bank area gets very hot.
• ⚠️ Disconnect the negative battery cable to prevent accidental shorting.
• ⚠️ Don’t pull on wires; release electrical connectors by their tabs.
• ⚠️ If you remove the upper intake, keep dirt out of the intake ports (stuff with clean rags).

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 1/4" ratchet
• 3/8" ratchet
• 3" extension
• 6" extension
• Universal swivel joint adapter
• Torque wrench (inch-pound or small Nm)
• Flathead screwdriver
• Pliers
• Plastic trim tool
• Pick tool
• Shop light
• Compressed air blow gun
• Clean rags
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1-6
• Upper intake manifold gasket set - Qty: 1 (if upper intake is removed)
• Dielectric grease - Qty: 1 (small packet)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine fully cool.
• Use a 10mm socket to disconnect the negative battery terminal and tuck it aside.
• Decide your access path: front bank coils are usually open; rear bank coils may need upper intake removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Pull up firmly on the plastic engine cover to pop it off its grommets (use a plastic trim tool if needed).
• Set the cover aside.

Step 2: Open up working room at the front (air intake duct)

• Loosen the intake hose clamps using a flathead screwdriver.
• Unclip/remove the intake duct and resonator as needed using pliers and a flathead screwdriver.
• Move the ducting out of the way for hand clearance.

Step 3: Replace front bank coils (radiator side)

• Pick one coil at a time so connectors don’t get mixed up.
• Press the connector lock tab and unplug the coil using a pick tool if the tab is stubborn (do not pry hard).
• Remove the coil hold-down bolt using a 10mm socket with a 1/4" ratchet.
• Twist the coil slightly, then pull it straight up and out.
• Blow out the spark plug well using compressed air blow gun to keep debris out.
• Apply a tiny smear of dielectric grease inside the coil boot. (Dielectric grease is a non-conductive grease that helps prevent moisture and makes future removal easier.)
• Install the new coil straight down until fully seated.
• Install the bolt using a 10mm socket, then Torque to 9 Nm (80 in-lbs) with a torque wrench.
• Reconnect the electrical connector until it clicks.

Step 4: Access rear bank coils (firewall side) if needed

• If you can clearly see and reach the rear coil bolts/connectors, you can replace them using the same process as Step 3 with a 6" extension and universal swivel joint adapter.
• If access is too tight, continue with upper intake removal below.

Step 5: Remove the upper intake manifold (only if required for rear coils)

• Label and disconnect any vacuum hoses and electrical connectors you remove using a pick tool and pliers. Take a quick photo first.
• Remove any brackets/fasteners blocking the upper intake using a 10mm socket and 12mm socket with a 3/8" ratchet.
• Remove the upper intake manifold bolts using a 12mm socket with a 3/8" ratchet, 6" extension, and universal swivel joint adapter.
• Lift the upper intake straight up and out. Use clean rags to cover the intake ports immediately.

Step 6: Replace rear bank coils (firewall side)

• Unplug each coil connector using a pick tool if needed.
• Remove each coil bolt using a 10mm socket with a ratchet and extension.
• Remove the coil, blow out the well with compressed air blow gun, apply a small amount of dielectric grease, and install the new coil.
• Install the bolt and Torque to 9 Nm (80 in-lbs) using a torque wrench.
• Reconnect each coil connector until it clicks.

Step 7: Reinstall the upper intake manifold (if removed)

• Remove the rags from the intake ports using clean rags (count them to be sure none remain).
• Replace the upper intake manifold gaskets with the new set (do not reuse flattened gaskets).
• Set the upper intake manifold in place carefully.
• Hand-start all bolts, then tighten evenly in a crisscross pattern using a 12mm socket and 3/8" ratchet.
• Torque to 20 Nm (15 ft-lbs) using a torque wrench.
• Reconnect all vacuum hoses and electrical connectors you removed.

Step 8: Reassemble intake ducting and engine cover

• Reinstall the air intake duct and tighten clamps with a flathead screwdriver.
• Reconnect any sensor connectors you unplugged (common at the intake tube) by pressing until they click.
• Reinstall the engine cover by pressing it onto its mounting grommets.

Step 9: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.

---

✅ After Repair

• Start the engine and let it idle for 2 minutes; it should run smooth.
• Check for a check-engine light and listen for vacuum leaks (a loud hissing sound) if the upper intake was removed.
• Road test for 10-15 minutes. Confirm no hesitation under acceleration.
• If the check-engine light stays on, scan for codes; misfire codes (P0300-P0306) may need clearing after the fix.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$950 (parts + labor)

DIY Cost: $60-$450 (parts only)

You Save: $290-$500+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-3 hours.

---
