🔧 Camry - Ignition Coil Replacement

Your Camry’s ignition coils sit on top of the spark plugs and create the high-voltage spark needed for the engine to run smoothly. Replacing a bad coil is a straightforward job: remove the engine cover, unplug the coil, unbolt it, and swap it out.

Difficulty Level: Beginner | Estimated Time: 0.5-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine to avoid burns and damaged plastic connectors.
• ⚠️ Keep the ignition OFF while unplugging coils to prevent electrical damage.
• ⚠️ Don’t pull on wiring—only the connector body.
• ⚠️ Battery disconnect is not required, but if you’re nervous around electrical connectors, disconnect the negative terminal first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Torque wrench (in-lb or low-range ft-lb)
• 10mm wrench
• Small flathead screwdriver
• Shop light
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1 (or Qty: 4 if replacing all)
• Dielectric grease - Qty: 1 (optional)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool fully.
• If disconnecting the battery: use a 10mm wrench to remove the negative terminal and keep it from touching the post.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Use a 10mm socket with a 1/4" drive ratchet to remove the engine cover nuts (if equipped).
• Lift the cover up to release it from the rubber grommets, then set it aside.

Step 2: Locate the ignition coils

• Use a shop light to look along the top of the engine valve cover.
• You’ll see 4 coils in a row, each with an electrical connector and a single 10mm hold-down bolt.

Step 3: Unplug the coil electrical connector

• Press the connector lock tab and pull the connector straight back by hand.
• If it’s stuck, use a small flathead screwdriver gently on the lock tab only (do not pry on the wires). Be gentle—plastic gets brittle.

Step 4: Remove the coil hold-down bolt

• Use a 10mm socket with a 3" extension (1/4" drive) and 1/4" drive ratchet to remove the bolt.
• Set the bolt somewhere safe so it can’t fall into the engine bay.

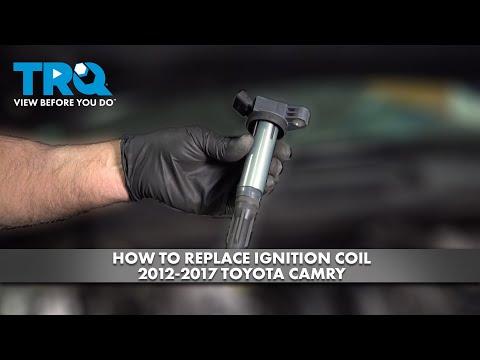

Step 5: Remove the ignition coil

• Grab the coil body and twist it slightly left-right to break the seal.
• Pull the coil straight up to remove it from the spark plug tube.

Step 6: Install the new ignition coil

• If using dielectric grease: put a pea-sized amount inside the rubber boot of the new coil (dielectric grease is a non-conductive grease that helps seal out moisture).
• Push the new coil straight down until it fully seats on the spark plug.

Step 7: Reinstall the coil bolt and torque it

• Start the bolt by hand a few turns to avoid cross-threading.
• Use a torque wrench (in-lb or low-range ft-lb) with a 10mm socket to tighten the bolt: Torque to 9 Nm (80 in-lbf).
• (A torque wrench is a tool that tightens bolts to a specific safe tightness.)

Step 8: Reconnect the electrical connector

• Push the connector on until it clicks/locks.
• Lightly tug the connector to confirm it’s fully latched.

Step 9: Repeat for other coils (if replacing more than one)

• Repeat Steps 3–8 for each additional coil.
• One coil at a time prevents mix-ups.

Step 10: Reinstall the engine cover

• Set the cover back in place and press it into the grommets.
• Use a 10mm socket and 1/4" drive ratchet to reinstall the nuts snugly (do not over-tighten).

Step 11: Reconnect the battery (if disconnected)

• Use a 10mm wrench to tighten the negative terminal clamp.

---

✅ After Repair

• Start the engine and let it idle for 30–60 seconds. It should run smooth with no shaking.
• If the check engine light was on, it may need to be cleared after the repair (or it may turn off on its own after a few drive cycles).
• Take a short test drive and re-check for any rough running.
• If it still misfires, the spark plug or wiring to that coil may be the issue.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$550 (parts + labor)

DIY Cost: $40-$400 (parts only, depending on replacing 1 coil vs all 4)

You Save: $160-$150 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
