🔧 Camry - Ignition Coil Replacement

Your Camry uses one ignition coil per cylinder (4 total). Replacing a bad coil restores smooth running, fixes misfires, and can turn off a flashing/check engine light caused by a misfire.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Hybrid safety: Make sure the car is OFF (not in READY) and keep the key fob at least 10+ feet away so it can’t start unexpectedly.
• ⚠️ Let the engine cool before working near the valve cover and exhaust side.
• ⚠️ Optional but recommended: Disconnect the 12V battery negative terminal to prevent accidental starting and avoid setting electrical faults.
• ⚠️ Don’t pull on wiring—only on connectors and housings.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 3" socket extension
• Torque wrench (inch-pound or low-range) (specialty)
• Flat trim tool
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 4
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground and shift to Park.
• Power the car OFF and verify the dash is fully off (not READY).
• If disconnecting 12V power: open the trunk, lift the floor panels to access the 12V battery area, and use a 10mm socket to remove the negative terminal from the 12V battery. Move the cable aside so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Grip the plastic engine cover and pull upward to release it from the rubber grommets.
• If it’s stubborn, use a flat trim tool to gently pry up at a corner.

Step 2: Unplug the ignition coil electrical connectors

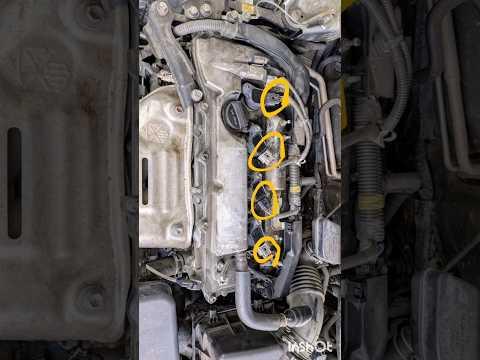

• Locate the 4 coils on top of the engine (one per cylinder).
• Press the connector lock tab and pull the connector straight back off the coil.
• If stuck, wiggle—don’t yank wires.

Step 3: Remove the ignition coil hold-down bolts

• Use a 10mm socket, 3" socket extension, and 1/4" drive ratchet to remove the bolt holding each coil.
• Set bolts aside where they won’t fall into the engine bay.

Step 4: Remove the old coils

• Pull each coil straight up while gently twisting by hand.
• If it feels stuck, keep twisting lightly and pulling upward—don’t pry hard on the valve cover.

Step 5: Install the new coils

• Optional: apply a tiny smear of dielectric grease inside the rubber boot (this helps sealing and future removal).
• Push the new coil straight down until it fully seats on the spark plug.
• Reinstall the hold-down bolt by hand first (to avoid cross-threading), then snug it with a 10mm socket.
• Use a torque wrench (inch-pound or low-range) (a torque wrench sets exact tightness) and Torque to 9 Nm (80 in-lbf).

Step 6: Reconnect coil connectors and reinstall the engine cover

• Push each connector onto its coil until you feel/hear it click.
• Reinstall the engine cover by aligning it with the grommets and pressing down firmly.

Step 7: Reconnect 12V battery (if disconnected)

• Reattach the negative terminal and tighten with a 10mm socket until secure (snug, not over-tight).
• Reinstall trunk floor panels.

---

✅ After Repair

• Start the car and confirm it goes to READY normally.
• Listen for smooth idle and verify no shaking/misfire.
• If the check engine light was on, it may take a few drive cycles to clear; a scan tool can clear codes immediately.
• Recheck that all 4 connectors are fully clicked in—this is the #1 “won’t run” cause after coil replacement.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$750 (parts + labor)

DIY Cost: $180-$520 (parts only)

You Save: $120-$230 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
