🔧 Camry - Ignition Coil Replacement

The ignition coils sit on top of the engine and send high voltage to the spark plugs. Replacing a weak coil can fix misfires, rough idle, and flashing check-engine light, and it’s a straightforward job because the coils are easy to reach on your Camry.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine to avoid burns.
• ⚠️ Keep the key out of the car so nobody accidentally starts it.
• ⚠️ Don’t pull on wiring; always press the connector lock tab first.
• ⚠️ Battery disconnect is not required, but disconnecting the negative terminal is a good extra safety step if you’re nervous around electrical connectors.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" extension (1/4" drive)
• Torque wrench (in-lb or small Nm range)
• Trim clip tool
• Needle-nose pliers
• Dielectric grease
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1 (or replace in pairs / all four if desired)
• Engine cover grommets/clips - Qty: As needed

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool fully.
• If disconnecting the battery: use a 10mm socket to remove the negative cable and tuck it aside so it can’t spring back.
• Take a quick photo of connectors first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Grab the plastic engine cover and pull upward to release it from the rubber grommets.
• If a clip is stubborn, use a trim clip tool to gently pry under the edge.

Step 2: Locate the ignition coils

• You’ll see four coils lined up on top of the valve cover (one per cylinder), each held by a small bolt and an electrical connector.

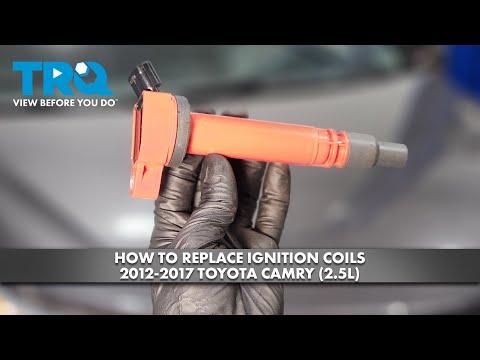

• A coil is the “stick” assembly that sits directly over the spark plug.

Step 3: Unplug the coil electrical connector

• Press the connector’s lock tab and pull the connector straight back.
• If it’s tight, use needle-nose pliers gently on the connector body (not the wires).

Step 4: Remove the coil hold-down bolt

• Use a 10mm socket, 1/4" ratchet, and 6" extension to remove the bolt.
• Set the bolt aside where it won’t get lost.

Step 5: Pull the coil out

• Twist the coil slightly left-right, then pull straight up to remove it.
• Steady pull beats brute force.

Step 6: Prep and install the new coil

• Apply a very thin film of dielectric grease inside the new coil boot (the rubber end). Dielectric grease is a non-conductive silicone grease that helps prevent moisture and makes future removal easier.
• Push the new coil straight down onto the spark plug until it fully seats (you’ll feel it “bottom out”).

Step 7: Reinstall the hold-down bolt

• Thread the bolt in by hand first (prevents cross-threading).
• Tighten with a 10mm socket and torque wrench: Torque to 9 Nm (80 in-lbs).

Step 8: Reconnect the electrical connector

• Push the connector on until it clicks/locks.
• Give it a gentle tug to confirm it’s latched.

Step 9: Repeat for any other coils being replaced

• Do the same steps on the other cylinders as needed.
• Replace one coil at a time to avoid mix-ups.

Step 10: Reinstall the engine cover

• Line up the cover with the grommets and press down firmly until it snaps into place.
• If you disconnected the battery, reconnect the negative cable using a 10mm socket.

---

✅ After Repair

• Start the engine and let it idle for 1-2 minutes. It should run smooth.
• If the check-engine light was flashing before, it should stop flashing immediately once the misfire is gone.
• Take a short test drive and recheck for any roughness.
• If you have a scan tool, clear codes and confirm the misfire does not return.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$550 (parts + labor, depending on how many coils)

DIY Cost: $45-$320 (parts only, depending on how many coils)

You Save: $135-$230+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
